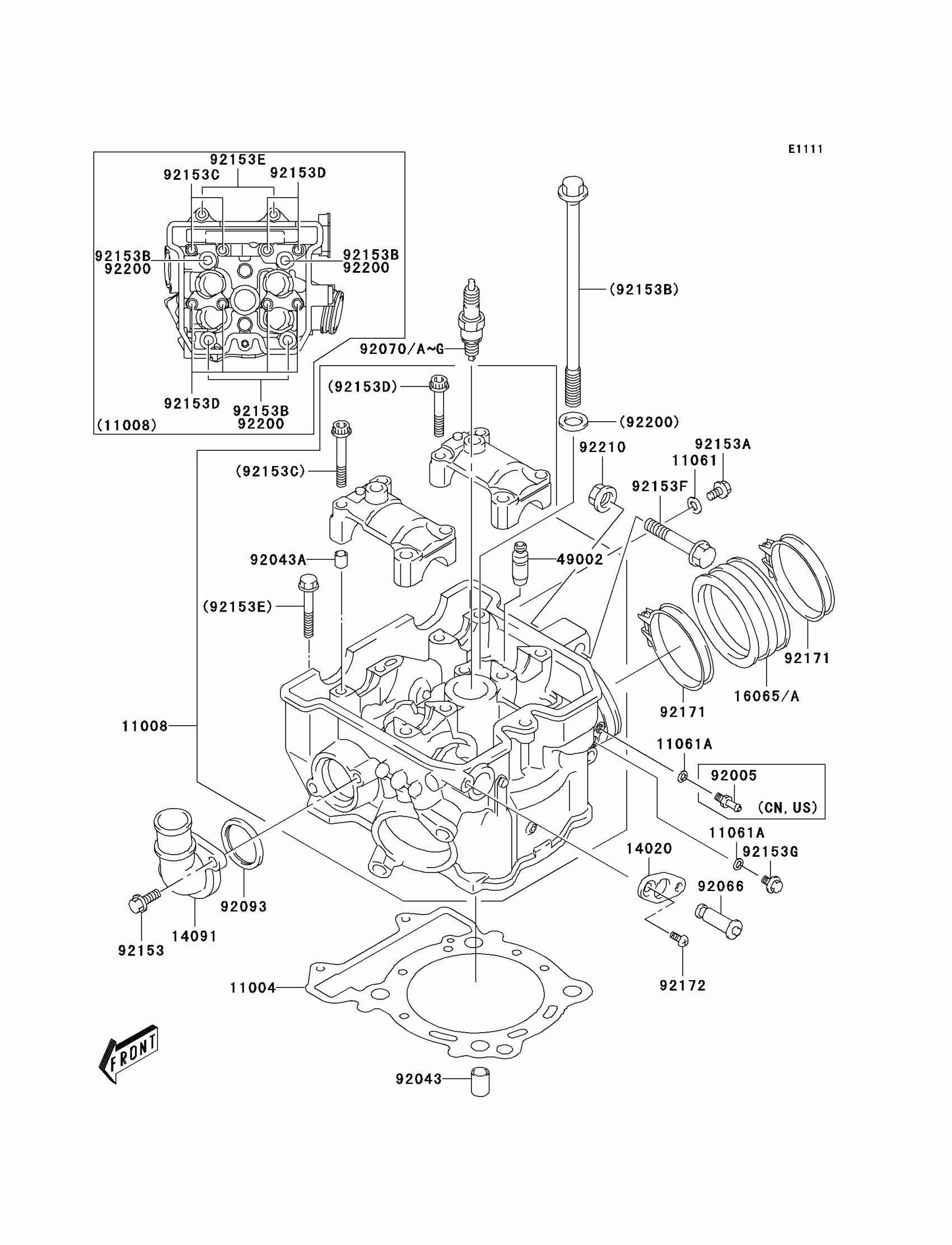

Kawasaki KLX400R (Canada Only) Cylinder Head Diagram

#

Description
Price

11004

GASKET-HEAD

11004-S006

$40.54

11008

HEAD-COMP-CYLINDER

11008-S006

$746.58

11061

GASKET,5.8X13X1.2

11061-S001

$2.53

11061A

GASKET,8.2X14X1

11061-S020

$2.04

14020

RETAINER,DECOMP SHAFT

14020-S013

$7.16

14091

COVER,THERMOSTAT

14091-S081

$35.28

49002

GUIDE-VALVE

49002-S003

$19.22

92043

PIN

92043-S003

$2.64

92043A

PIN,6.2X8X11

92043-S004

$2.15

92066

PLUG

92066-S040

$20.03

92070

PLUG-SPARK,CR8E(NGK)

92070-S001

$8.26

92070A

PLUG-SPARK,U24ESR-N(ND)

92070-S002

Unavailable

92070B

PLUG-SPARK,CR9E(NGK)

92070-S003

$7.26

92070C

PLUG-SPARK,U27ESR-N(ND)

92070-S004

$6.71

92070D

PLUG-SPARK,U22ESR-N(ND)

92070-S005

$4.13

92070E

PLUG-SPARK,CR7E(NGK)

92070-S006

$8.25

92070F

PLUG-SPARK,CR10E(NGK)

92070-S024

$8.25

92070G

PLUG-SPARK,U31ESR(ND)

92070-S025

$9.26

92093

SEAL

92093-S049

$9.03

92153

BOLT

92153-S001

Unavailable

92153A

BOLT

92153-S010

$1.92

92153B

BOLT,10X175

92153-S036

$17.97

92153C

BOLT

92153-S214

$2.70

92153D

BOLT

92153-S253

$2.70

92153E

BOLT,6X39

92153-S263

$2.92

92153F

BOLT,10X50

92153-S332

$5.66

92153G

BOLT,8X9.5

92153-S333

$3.61

92171

CLAMP

92171-S090

Unavailable

92172

SCREW

92172-S091

$1.90

92200

WASHER,10.5X19X2.0

92200-S009

$1.84

92210

NUT

92210-S015

$5.75

16065

HOLDER-CARBURETOR

16065-S009

$22.28

16065A

HOLDER-CARBURETOR

16065-S010

$23.85

92005

FITTING

92005-S006

$11.90
