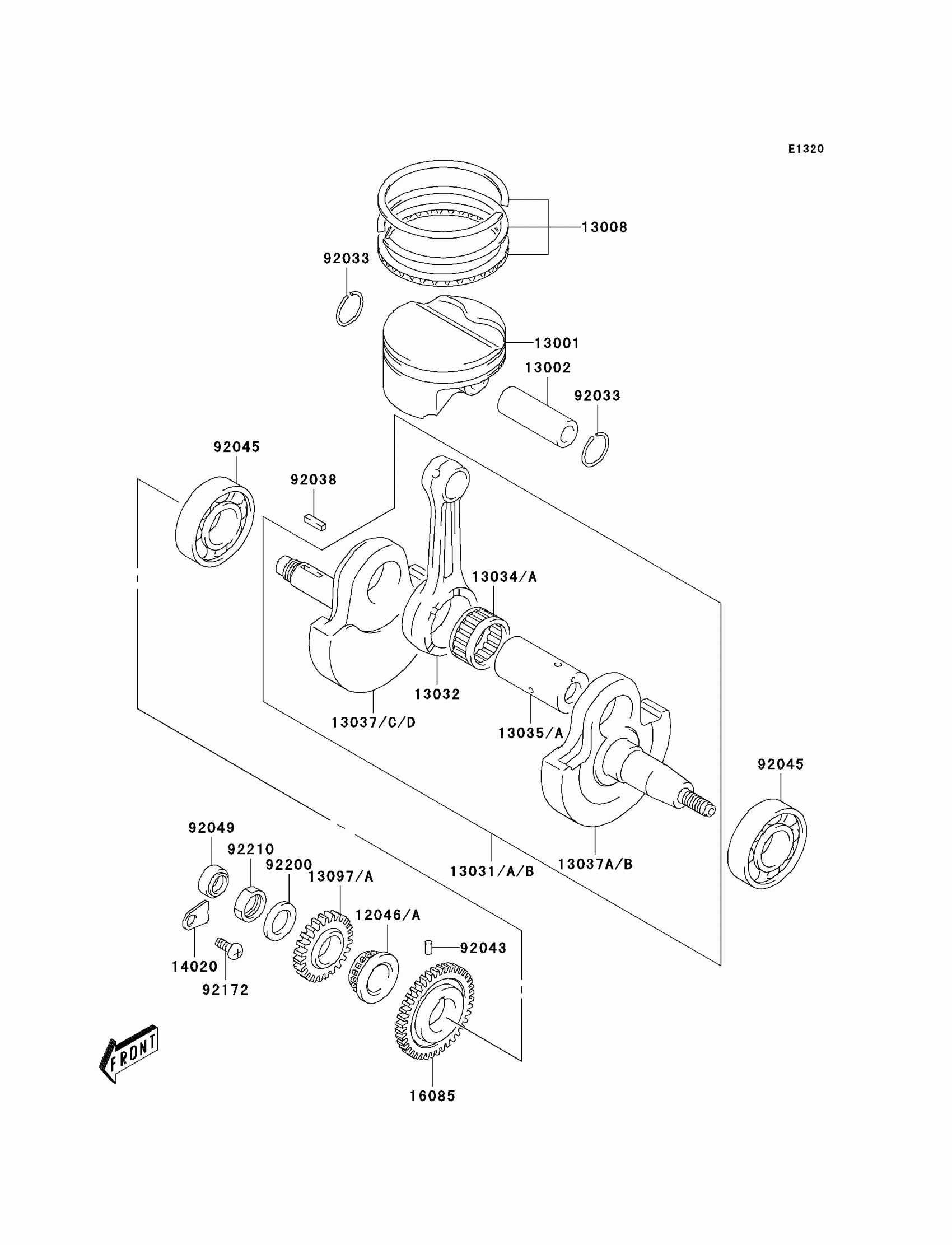

Kawasaki KLX400R (Canada Only) Crankshaft/Piston(s) Diagram

Description

Price

12046A

SPROCKET,CAM CHAIN

12046-S006

$54.70

13001

PISTON-ENGINE

13001-S006

$146.06

13002

PIN-PISTON

13002-S006

$23.21

13008

RING-SET-PISTON

13008-S008

$65.94

13032

ROD-CONNECTING

13032-S007

Unavailable

13037A

CRANKSHAFT,LH

13037-S012

$277.15

13097A

GEAR-PRIMARY SPUR

13097-S007

$65.89

14020

RETAINER

14020-S009

$4.22

16085

GEAR,CRANK BALANCER

16085-S004

$109.16

92033

RING-SNAP,PISTON PIN

92033-S040

$1.92

92038

KEY,PRIMARY DRIVE GEAR

92038-S006

$4.49

92043

PIN,5X8

92043-S008

$1.74

92045

BEARING-BALL,CRANKSHAFT

92045-S054

$75.86

92049

SEAL-OIL,CRANKSHAFT,RH

92049-S048

$8.54

92172

SCREW

92172-S166

$1.92

92200

WASHER

92200-S140

$5.03

92210

NUT,PRIMARY DRIVE GEAR

92210-S102

$8.69

13031

CRANKSHAFT-COMP

13031-S006

Unavailable

13031B

CRANKSHAFT-COMP

13031-S010

Unavailable

13034

BEARING-BIG END

13034-S006

Unavailable

13034A

BEARING-BIG END

13034-S007

$66.57

13035

PIN-CRANK

13035-S006

Unavailable

13035A

PIN-CRANK

13035-S008

Unavailable

13037

CRANKSHAFT,RH

13037-S011

Unavailable

13037D

CRANKSHAFT,RH

13037-S017

Unavailable
