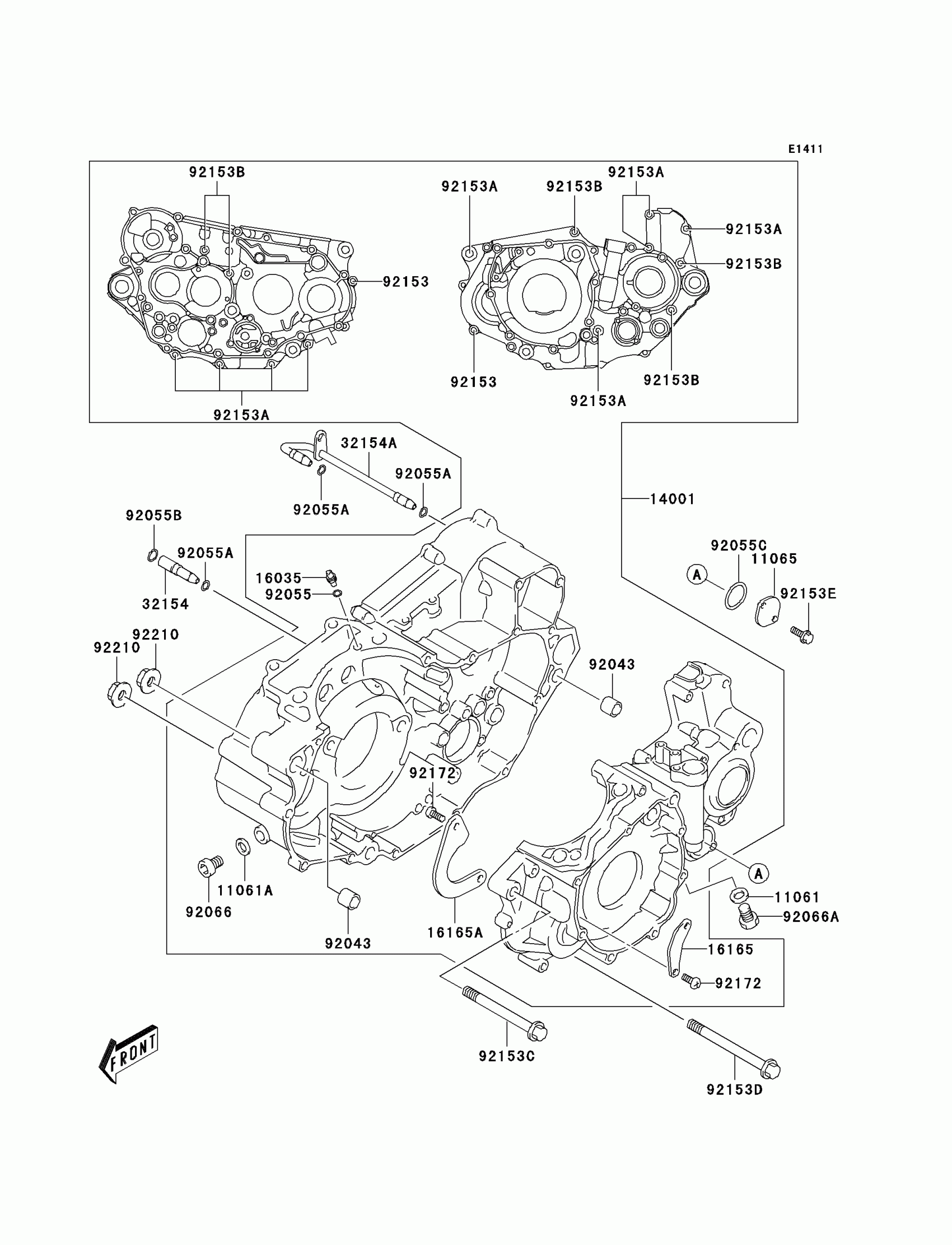

Kawasaki KLX400R (Canada Only) Crankcase Diagram

Description

Price

11061

GASKET,12X16X2

11061-S005

$2.09

11061A

GASKET,10X14X3.6

11061-S021

$2.42

11065

CAP,NEUTRAL

11065-S053

$3.45

14001

SET-CRANKCASE

14001-S008

$730.10

16035

JET-AIR

16035-S004

$14.07

16165

SEPARATOR,CRANKCASE OIL

16165-S007

$3.28

16165A

SEPARATOR,CRANKCASE OIL

16165-S008

$4.77

32154

PIPE

32154-S005

$20.55

32154A

PIPE,OIL

32154-S007

$68.13

92043

92043-S003

$2.64

92055

RING-O,ID:4.0)

92055-S002

$2.42

92055A

RING-O,ID:4.8

92055-S003

$2.53

92055B

RING-O,6.8X1.9

92055-S053

$1.74

92055C

RING-O,26.2X2.4

92055-S055

$2.84

92066

PLUG

92066-S009

$5.03

92066A

PLUG,OIL DRAIN

92066-S032

$4.49

92153

BOLT

92153-S006

Unavailable

92153A

BOLT

92153-S128

$2.40

92153B

BOLT

92153-S247

$2.70

92153C

BOLT,10X100

92153-S269

$8.03

92153D

BOLT,10X115

92153-S334

$8.03

92153E

BOLT

92153-S343

$1.76

92172

SCREW,6X12

92172-S033

$2.54

92210

NUT

92210-S015

$5.75

Kawasaki KLX400R (Canada Only) Crankcase Diagram

GASKET,12X16X2

GASKET,10X14X3.6

CAP,NEUTRAL

SET-CRANKCASE

JET-AIR

SEPARATOR,CRANKCASE OIL

SEPARATOR,CRANKCASE OIL

PIPE

PIPE,OIL

PIN

RING-O,ID:4.0)

RING-O,ID:4.8

RING-O,6.8X1.9

RING-O,26.2X2.4

PLUG

PLUG,OIL DRAIN

BOLT

BOLT

BOLT

BOLT,10X100

BOLT,10X115

BOLT

SCREW,6X12

NUT
