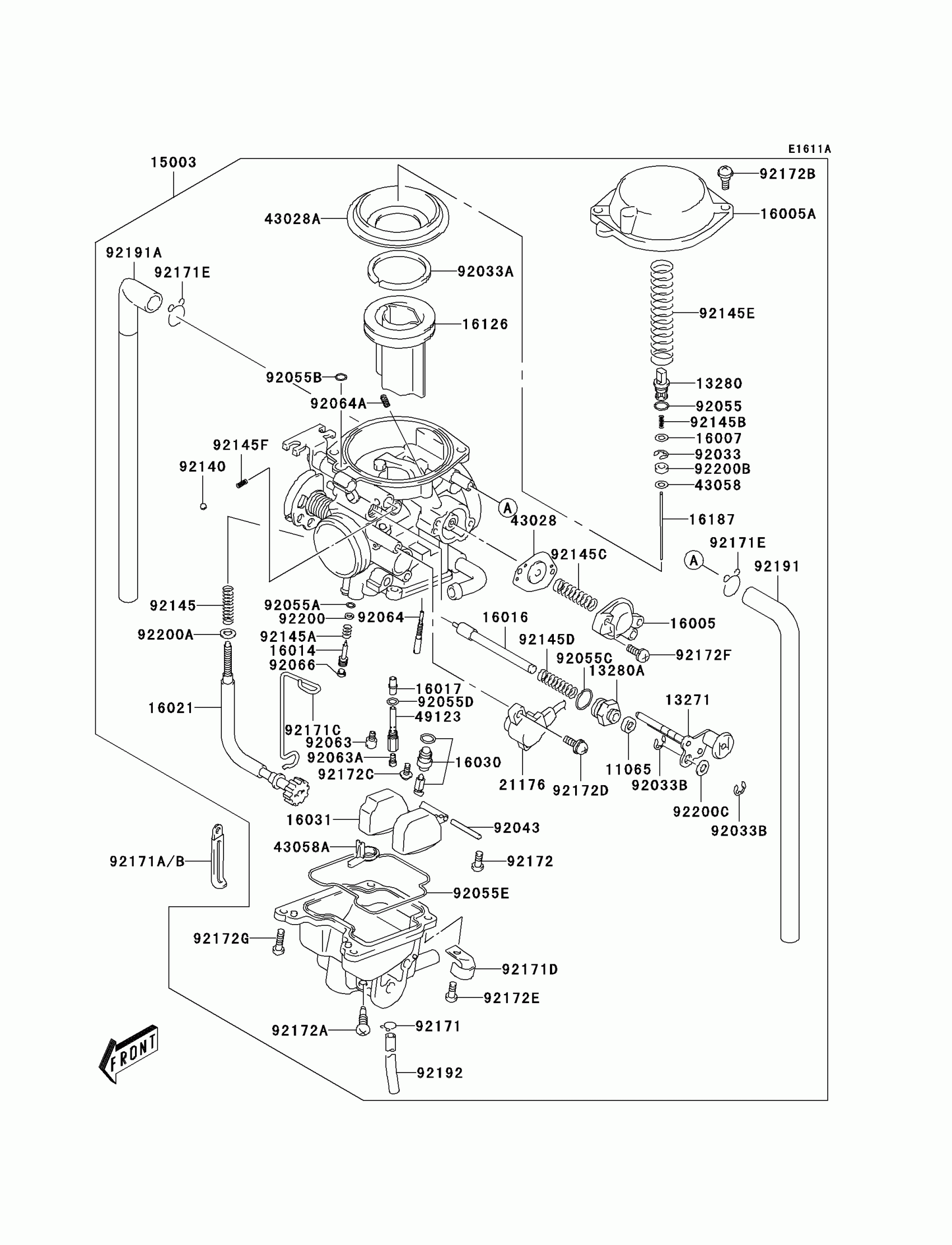

Kawasaki KLX400R (Canada Only) Carburetor(4/4)(CA) Diagram

#

Description
Price

11065

CAP

11065-S031

$4.81

13271

PLATE

13271-S056

$62.19

13280

HOLDER

13280-S002

$5.40

13280A

HOLDER

13280-S021

$10.95

15003

CARBURETOR-ASSY

15003-S014

$638.06

16005

TOP-CHAMBER

16005-S004

$33.07

16005A

TOP-CHAMBER,DIAPHRAGM

16005-S006

Unavailable

16007

SEAT-SPRING

16007-S005

$4.10

16014

SCREW-PILOT AIR

16014-S009

$11.54

16016

PLUNGER

16016-S008

$26.90

16017

JET-NEEDLE

16017-S008

$46.06

16021

SCREW-THROTTLE STOP

16021-S006

$55.77

16030

VALVE-FLOAT

16030-S008

$70.25

16031

FLOAT

16031-S006

$35.22

16126

VALVE

16126-S010

$61.52

16187

NEEDLE-JET

16187-S011

$17.53

21176

SENSOR

21176-S001

$124.50

43028

DIAPHRAGM

43028-S008

$24.95

43028A

DIAPHRAGM

43028-S011

$33.87

43058

RING

43058-S001

$9.29

43058A

RING

43058-S007

Unavailable

49123

HOLDER-MAIN JET

49123-S006

$34.42

92033

RING-SNAP,MULTIPLE JET

92033-S008

$1.81

92033A

RING-SNAP

92033-S041

$4.91

92033B

RING-SNAP

92033-S046

$2.22

92043

PIN

92043-S034

$4.17

92055

RING-O,ID:4.8

92055-S003

$1.80

92055A

RING-O

92055-S013

$4.81

92055B

RING-O

92055-S044

$4.97

92055C

RING-O

92055-S048

$2.20

92055D

RING-O

92055-S049

$4.81

92055E

RING-O

92055-S058

$8.78

92063

JET-MAIN,#62.5

92063-S011

$10.64

92063A

JET-MAIN

92063-S016

$15.66

92064

JET-PILOT,#22.5

92064-S008

$15.66

92064A

JET-PILOT

92064-S012

$14.31

92066

PLUG

92066-S027

$5.10

92140

BALL

92140-S005

$4.27

92145

SPRING,THROTTLE SCREW

92145-S009

$4.51

92145A

SPRING,THROTTLE SCREW

92145-S010

$4.81

92145B

SPRING

92145-S097

$4.10

92145C

SPRING

92145-S098

$4.27

92145D

SPRING

92145-S113

$4.42

92145E

SPRING

92145-S125

$12.49

92145F

SPRING

92145-S127

$5.83

92171

CLAMP

92171-S001

$1.71

92171A

CLAMP,L=80

92171-S012

Unavailable

92171B

CLAMP,WIRING HARNESS

92171-S081

$2.90

92171C

CLAMP

92171-S110

$16.63

92171D

CLAMP

92171-S111

$5.10

92171E

CLAMP

92171-S130

$5.92

92172

SCREW

92172-S002

$1.64

92172A

SCREW,DRAIN

92172-S046

$5.23

92172B

SCREW

92172-S047

$2.81

92172C

SCREW

92172-S048

$3.78

92172D

SCREW

92172-S049

$3.69

92172E

SCREW

92172-S057

$1.44

92172F

SCREW

92172-S139

$2.76

92172G

SCREW

92172-S145

$1.63

92191

TUBE,AIR VENT

92191-S069

$36.49

92191A

TUBE

92191-S079

Unavailable

92192

TUBE

92192-S020

$36.23

92200

WASHER

92200-S019

$1.81

92200A

WASHER

92200-S021

$2.76

92200B

WASHER

92200-S083

$3.13

92200C

WASHER

92200-S181

$1.64
