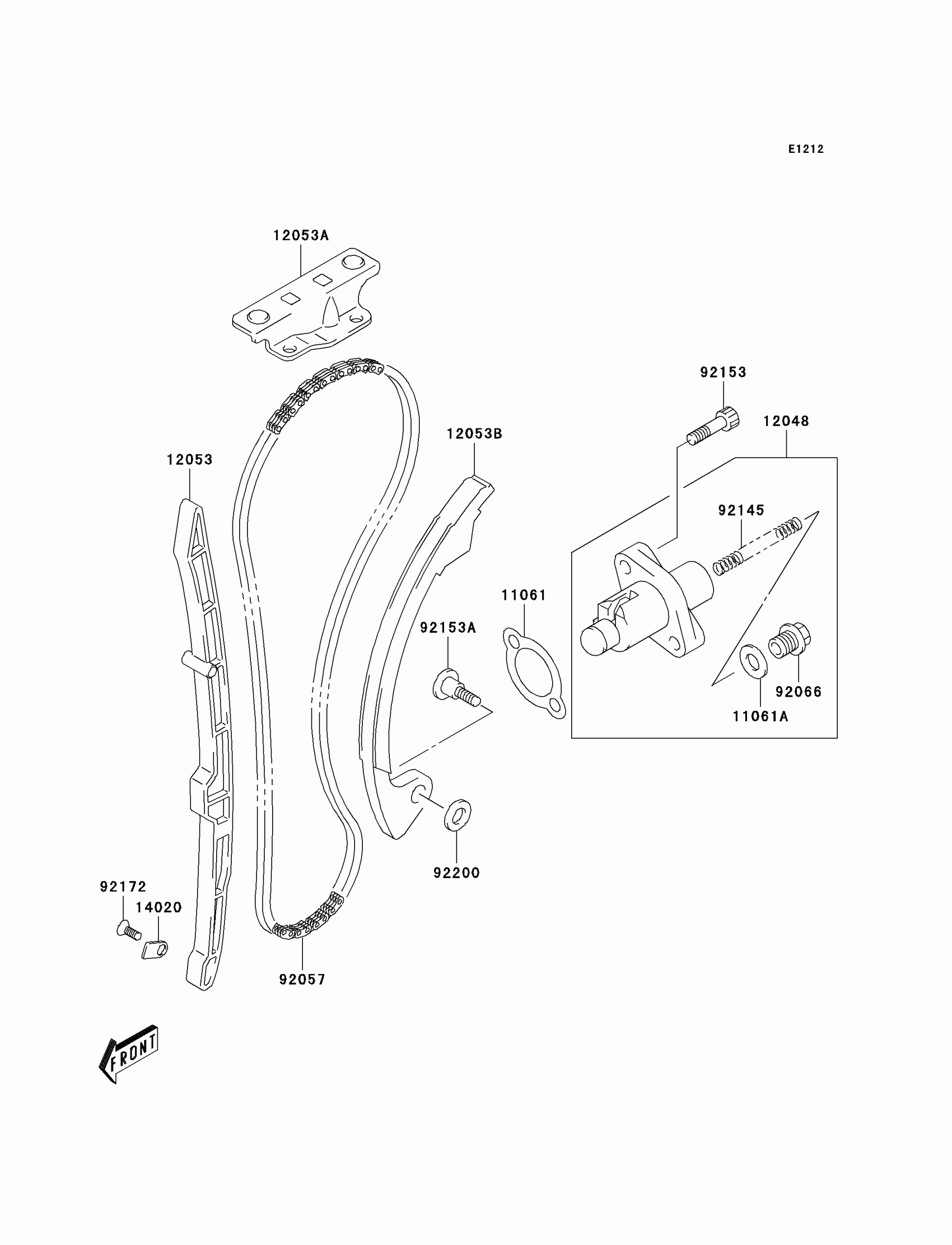

Kawasaki KLX400R (Canada Only) Cam Chain/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER ADJUSTER

11061-S073

$4.56

11061A

GASKET

11061-S074

$6.17

12048

TENSIONER-ASSY

12048-S006

$134.83

12053

GUIDE-CHAIN,FR

12053-S014

$36.48

12053A

GUIDE-CHAIN,CNT

12053-S015

$35.04

12053B

GUIDE-CHAIN,RR

12053-S023

$56.79

14020

RETAINER

14020-S006

$4.26

92057

CHAIN,CAMSHAFT DRIVE

92057-S012

$68.81

92066

PLUG

92066-S034

$18.21

92145

SPRING,STARTER IDLE GEAR

92145-S155

$7.16

92153

BOLT,TENSIONER ADJUSTER

92153-S257

$2.40

92153A

BOLT,CAM CHAIN TENSIONER

92153-S291

$9.32

92172

SCREW

92172-S112

$2.70

92200

WASHER,CAM CHAIN

92200-S128

$2.15
