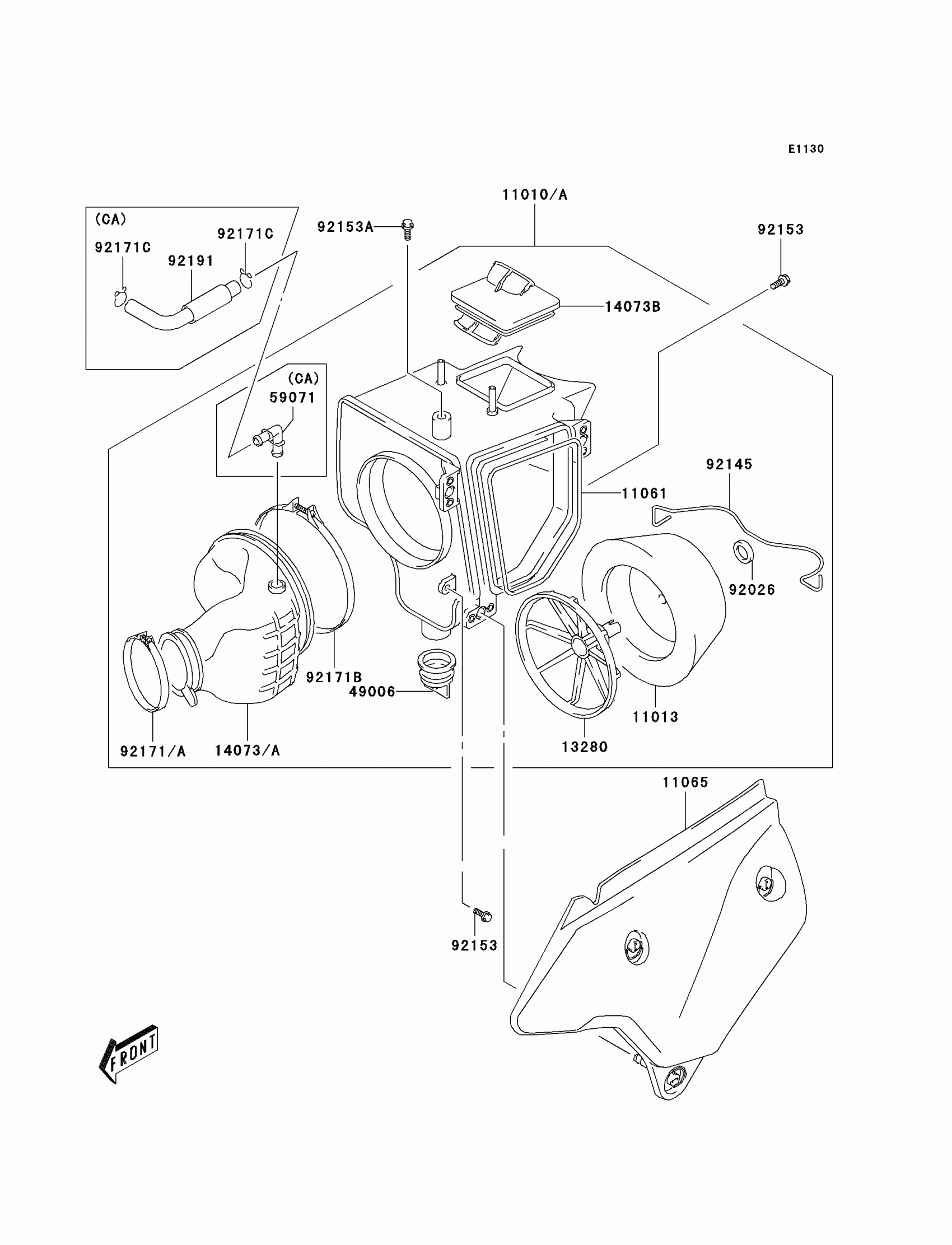

Kawasaki KLX400R (Canada Only) Air Cleaner Diagram

Description

Price

11013

ELEMENT-AIR FILTER

11013-S010

$63.68

11061

GASKET,AIR CLEANER

11061-S087

$6.47

11065

CAP,AIR CLEANER,S.WHITE

11065-S059-533

$143.66

13280

HOLDER,FILTER

13280-S031

$16.01

14073B

DUCT,INLET

14073-S016

$61.97

49006

BOOT,AIR FILTER

49006-S028

$10.98

92026

SPACER

92026-S119

$4.69

92145

SPRING

92145-S123

$35.69

92153

BOLT

92153-S001

Unavailable

92153A

BOLT,6X14.6

92153-S136

$4.03

92171B

CLAMP

92171-S112

$8.54

11010

FILTER-ASSY-AIR

11010-S011

$362.73

11010A

FILTER-ASSY-AIR

11010-S014

$394.11

14073

DUCT,OUTLET

14073-S013

$78.83

14073A

DUCT,OUTLET

14073-S015

$68.44

59071

JOINT

59071-S003

$8.49

92171

CLAMP

92171-S010

$6.36

92171A

CLAMP

92171-S102

$8.27

92171C

CLAMP,BREATHER TUBE

92171-S113

$2.76

92191

TUBE,BREATHER

92191-S070

$19.41
