Description

Price

41080

DISC,FR,HOUSING BLK+DISC SIL

41080-0187-11I

$319.74

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0026

$156.82

43045

SHAFT-CALIPER

43045-1010

$20.77

43045A

SHAFT-CALIPER

43045-1052

$17.58

43048

PISTON-CALIPER

43048-1066

$73.05

43049

PACKING

43049-1063

$8.03

43049A

PACKING

43049-1064

$6.16

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0236-25S

$383.94

43082

PAD-ASSY-BRAKE

43082-0087

$72.94

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,DISC PLATE,8X15

92150-1811

$5.00

120

BOLT-SOCKET,8X40

120CA0840

$2.80

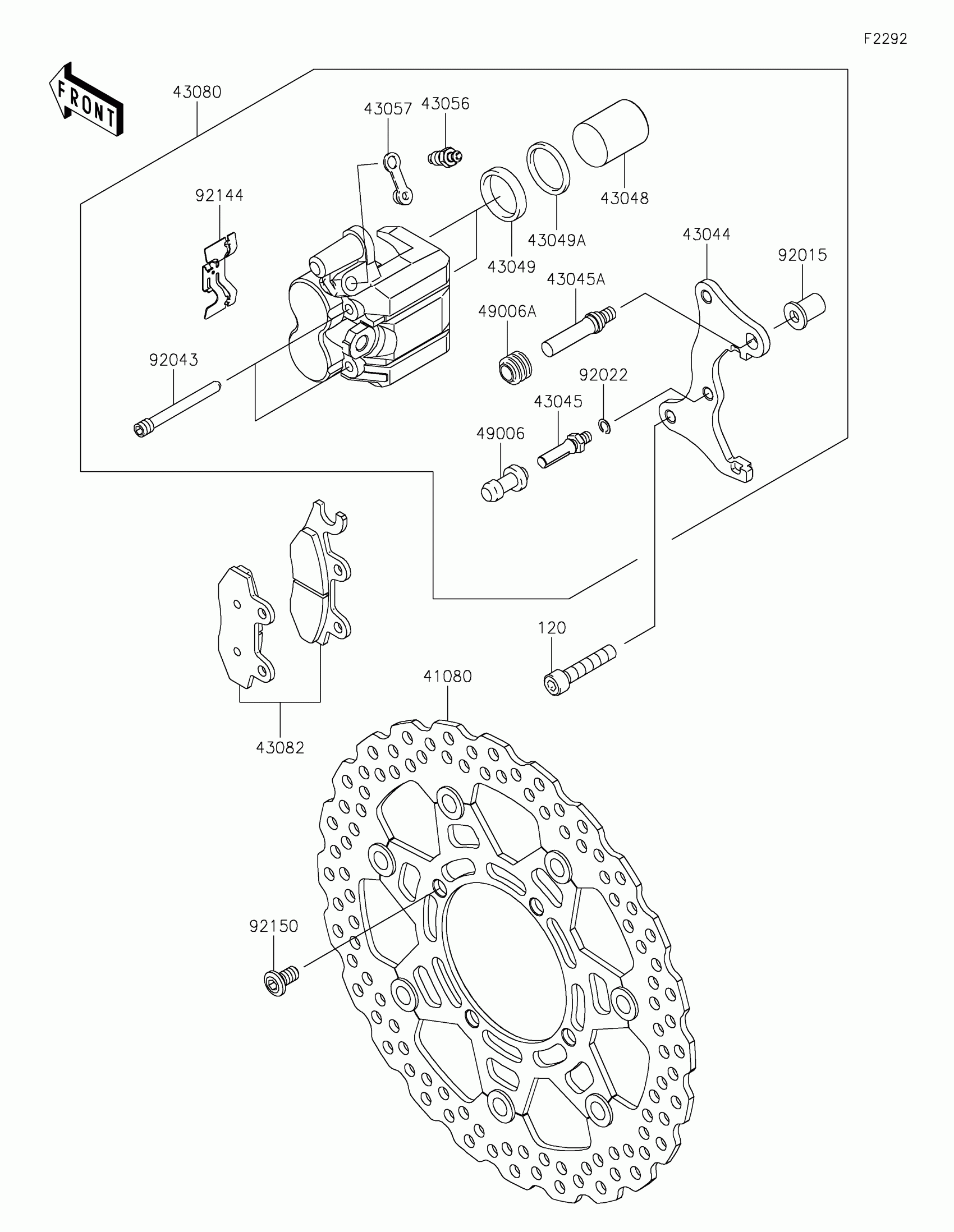

Kawasaki KLX300SM Front Brake Diagram

DISC,FR,HOUSING BLK+DISC SIL

HOLDER-COMP-CALIPER,FR,LH

SHAFT-CALIPER

SHAFT-CALIPER

PISTON-CALIPER

PACKING

PACKING

BREATHER-BRAKE

CAP-BREATHER

CALIPER-SUB-ASSY,FR,LH,BLACK

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

NUT

WASHER,WAVE

PIN,HANGER

SPRING,PAD

BOLT,DISC PLATE,8X15

BOLT-SOCKET,8X40
