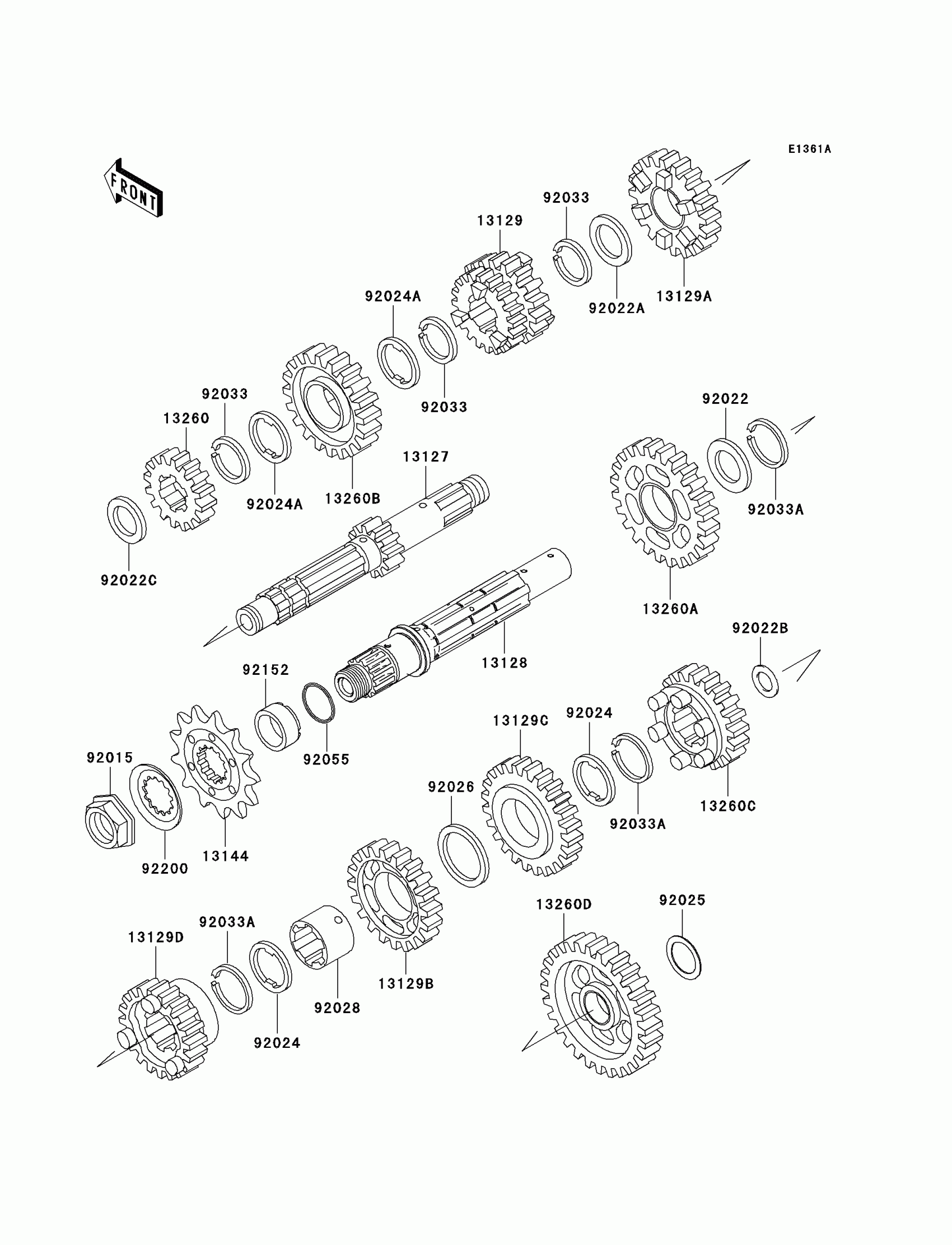

Kawasaki KLX300R Transmission(KLX300-A8/A9) Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,10T

13127-1223

$221.72

13128

SHAFT-TRANSMISSION OUTPUT

13128-1253

$209.21

13129

GEAR,INPUT 3RD&4TH,18&20T

13129-1602

$156.38

13129A

GEAR,INPUT 5TH,20T

13129-1603

$135.38

13129B

GEAR,OUTPUT 3RD,27T

13129-1650

$125.01

13129C

GEAR,OUTPUT 4TH,25T

13129-1651

$135.38

13129D

GEAR,OUTPUT TOP,19T

13129-1653

$135.38

13144

SPROCKET-OUTPUT,14T

13144-1295

$40.44

13260

GEAR,INPUT 2ND,15T

13260-1385

$135.38

13260A

GEAR,OUTPUT 2ND,30T

13260-1386

$125.01

13260B

GEAR,INPUT TOP,21T

13260-1595

$139.73

13260C

GEAR,OUTPUT 5TH,21T

13260-1596

$135.38

13260D

GEAR,OUTPUT LOW,30T

13260-1901

$82.97

92015

NUT,20MM

92015-1963

$14.90

92022

WASHER,25.3X30X0.5

92022-159

$8.58

92022A

WASHER,22.3X27X0.5

92022-198

$5.52

92022B

WASHER,20.5X25.5X0.5

92022-252

$6.22

92022C

WASHER,17.3X28X1

92022-255

$8.58

92024

WASHER,TOOTHED,22.5X31X0.5

92024-038

$6.22

92024A

WASHER,TOOTHED,22.5X27X0.5

92024-039

$6.27

92025

SHIM,T=0.7

92025-1451

$2.80

92026

SPACER,30X38X1.0

92026-079

$8.86

92028

BUSHING,OUTPUT GEAR

92028-1016

$28.88

92033

RING-SNAP,20X25.5X1.2

92033-025

$4.96

92033A

RING-SNAP,24MM

92033-026

$8.79

92055

RING-O,21.5X1.5

92055-1293

$5.00

92152

COLLAR

92152-1465

$35.59

92200

WASHER

92200-1065

$6.63
