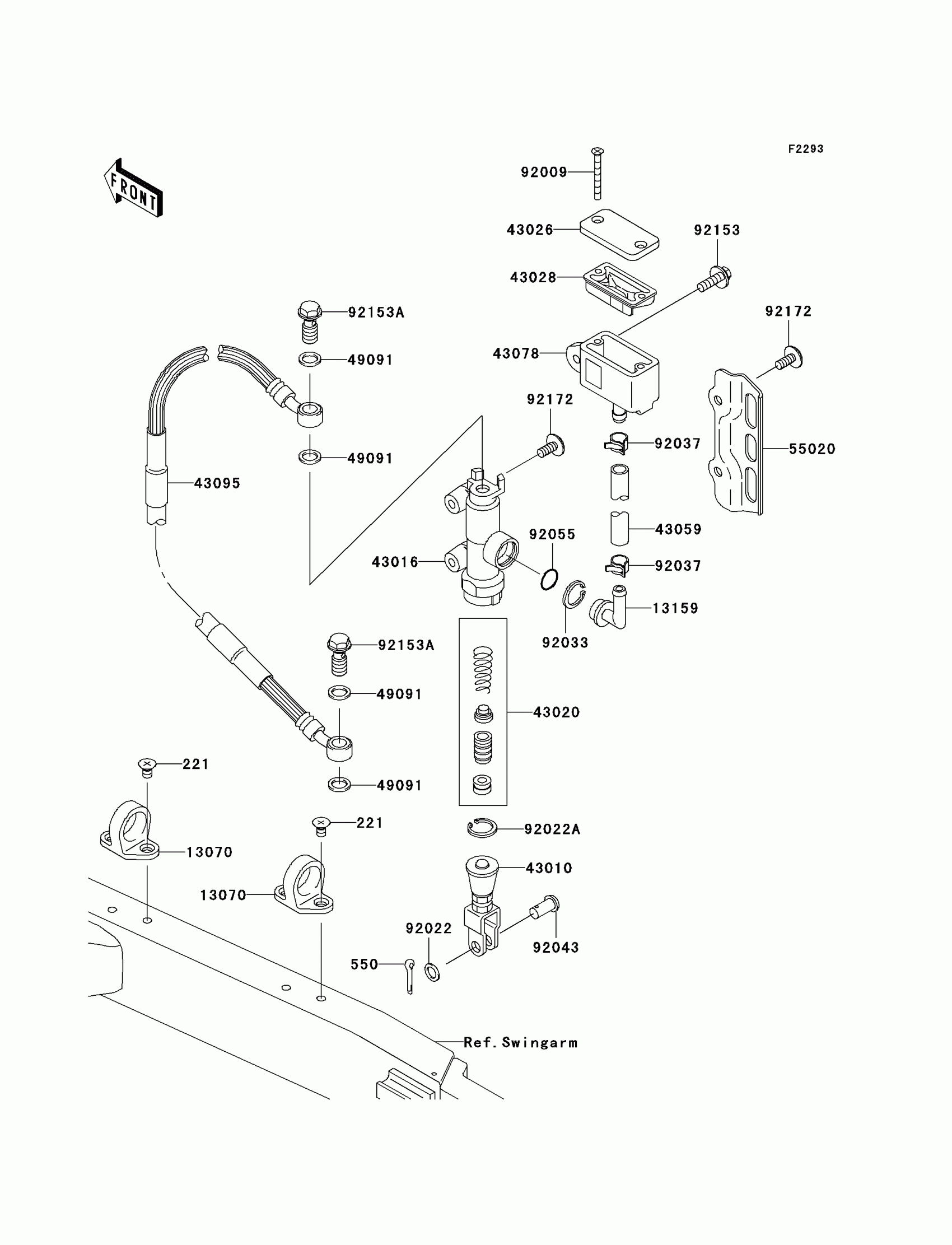

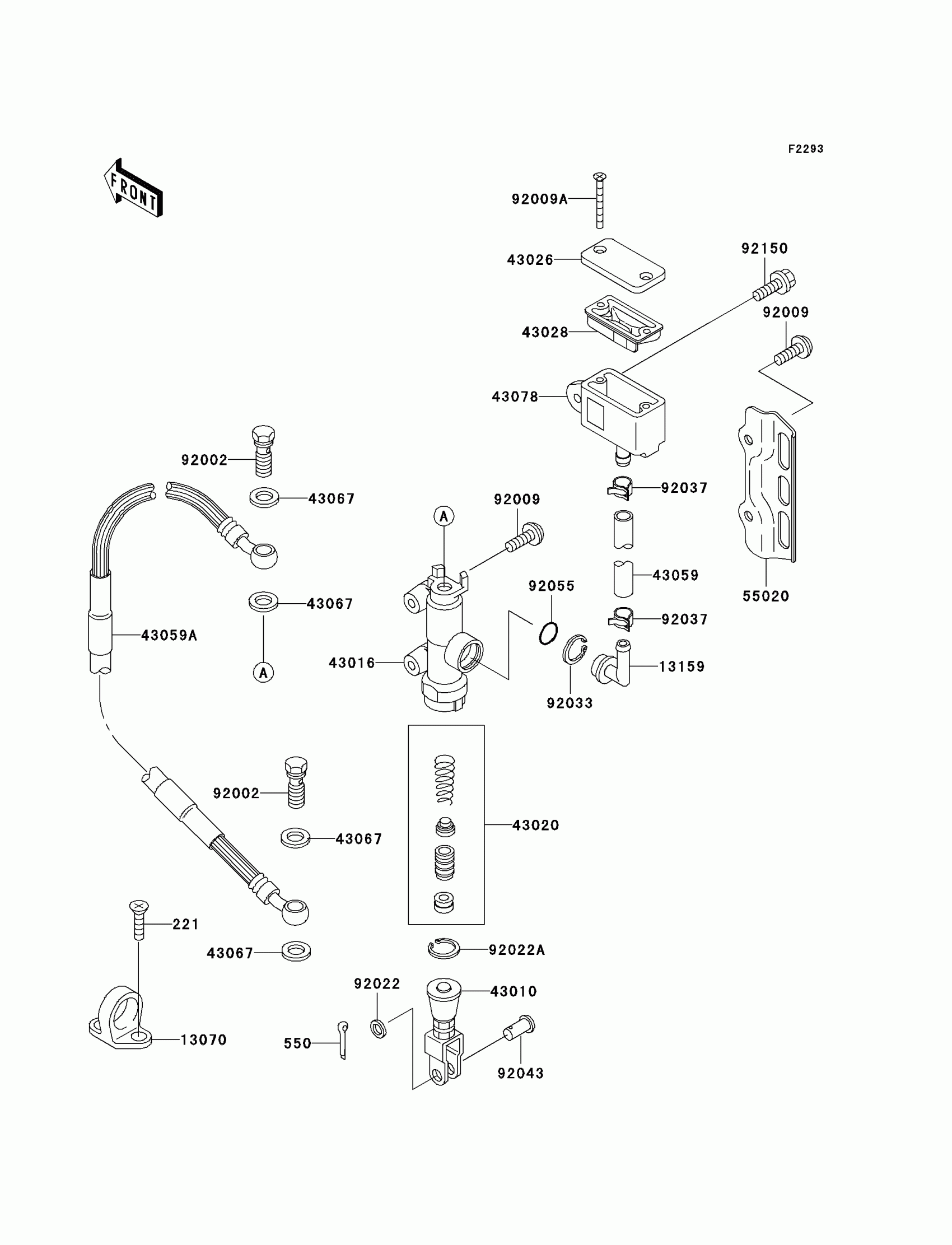

Kawasaki KLX300R Rear Master Cylinder Diagram
#
Description
Price
221
SCREW-CSK-CROS,6X10
221B0610
$3.67
550
PIN COTTER 2.0X15
550D2015
$1.04
13070
GUIDE,HOSE
13070-1144
$8.03
13159
CONNECTOR
13159-1056
$14.10
43010
ROD-ASSY-BRAKE
43010-1068
$51.24
43016
CYLINDER-MASTER
43016-1149
$191.24
43020
PISTON-COMP-BRAKE
43020-1094
$65.22
43026
CAP-BRAKE
43026-1075
$13.61
43028
DIAPHRAGM
43028-1067
$18.72
43059
HOSE-BRAKE,RR MASTER CYLINDER
43059-1767
$16.90
43078
RESERVOIR
43078-1189
$30.34
43095
HOSE-BRAKE,RR
43095-0164
$95.48
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
55020
GUARD,RR BRAKE RESERVOIR HOSE
55020-1489
$15.87
92009
SCREW,4X40
92009-1596
$3.94
92022
WASHER,8.5X13X1
92022-1028
$3.92
92022A
WASHER,CIRCRIP
92022-1601
Unavailable
92033
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP
92037-1710
$9.91
92043
PIN
92043-0004
$11.16
92055
RING-O,MASTER CYLINDER
92055-1251
Unavailable
92153
BOLT,6X20
92153-0502
$2.80
92153A
BOLT,OIL,L=23
92153-0627
$5.48
92172
SCREW,6X14
92172-0107
$2.55
