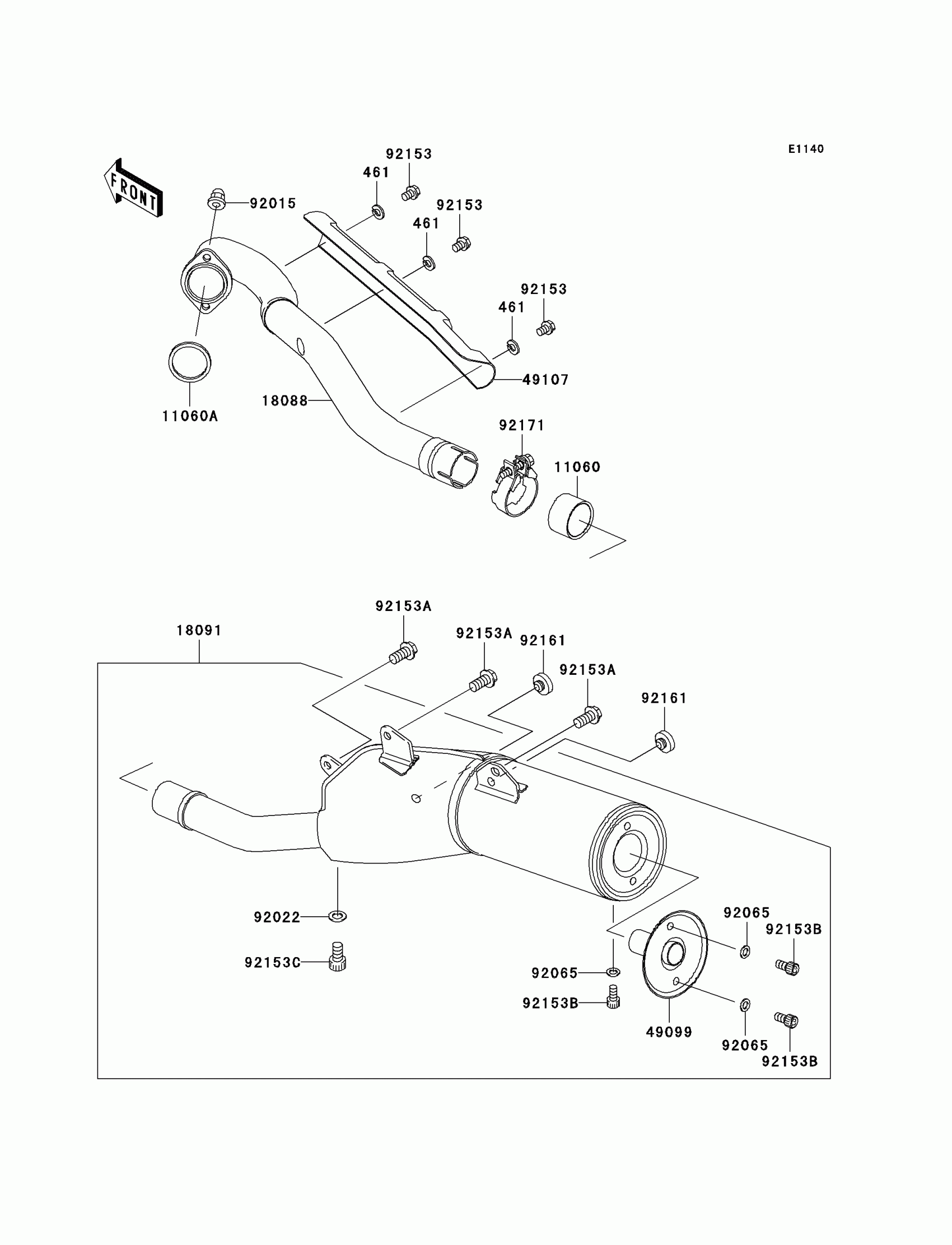

Kawasaki KLX300R Muffler(s)(CA,US) Diagram

Description

Price

461

WASHER-SPRING,6MM

461S0600

$1.07

11060

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11060A

GASKET,EXHAUST PIPE

11060-1203

$10.80

18088

PIPE-EXHAUST

18088-0034

$158.98

18091

BODY-COMP-MUFFLER

18091-0267

$630.15

49099

BAFFLE-PIPE MUFFLER

49099-1541

$73.98

49107

COVER-EXHAUST PIPE

49107-0062

$44.29

92015

NUT,8MM

92015-1402

$4.69

92022

WASHER,8.2X14X1.0

92022-1488

$4.92

92065

GASKET

92065-096

$4.65

92153

BOLT,6X8

92153-0860

$2.15

92153A

BOLT,FLANGED,8X16

92153-1308

$3.39

92153B

BOLT,SOCKET,6X12

92153-1347

$2.97

92153C

BOLT,SOCKET,8X14

92153-1348

$3.55

92161

DAMPER

92161-0336

$5.65

92171

CLAMP,MUFFLER,BLACK

92171-0564

$24.46
