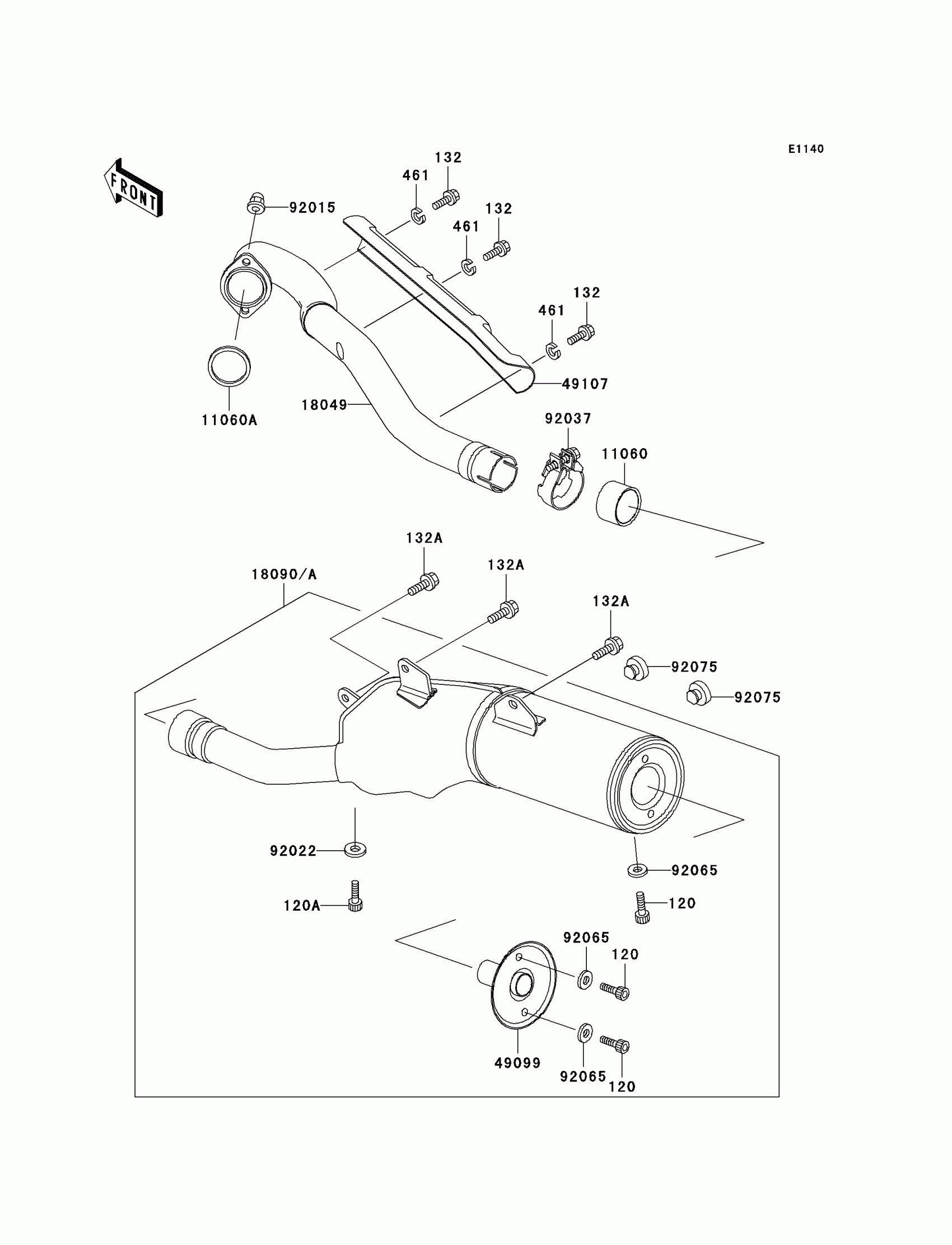

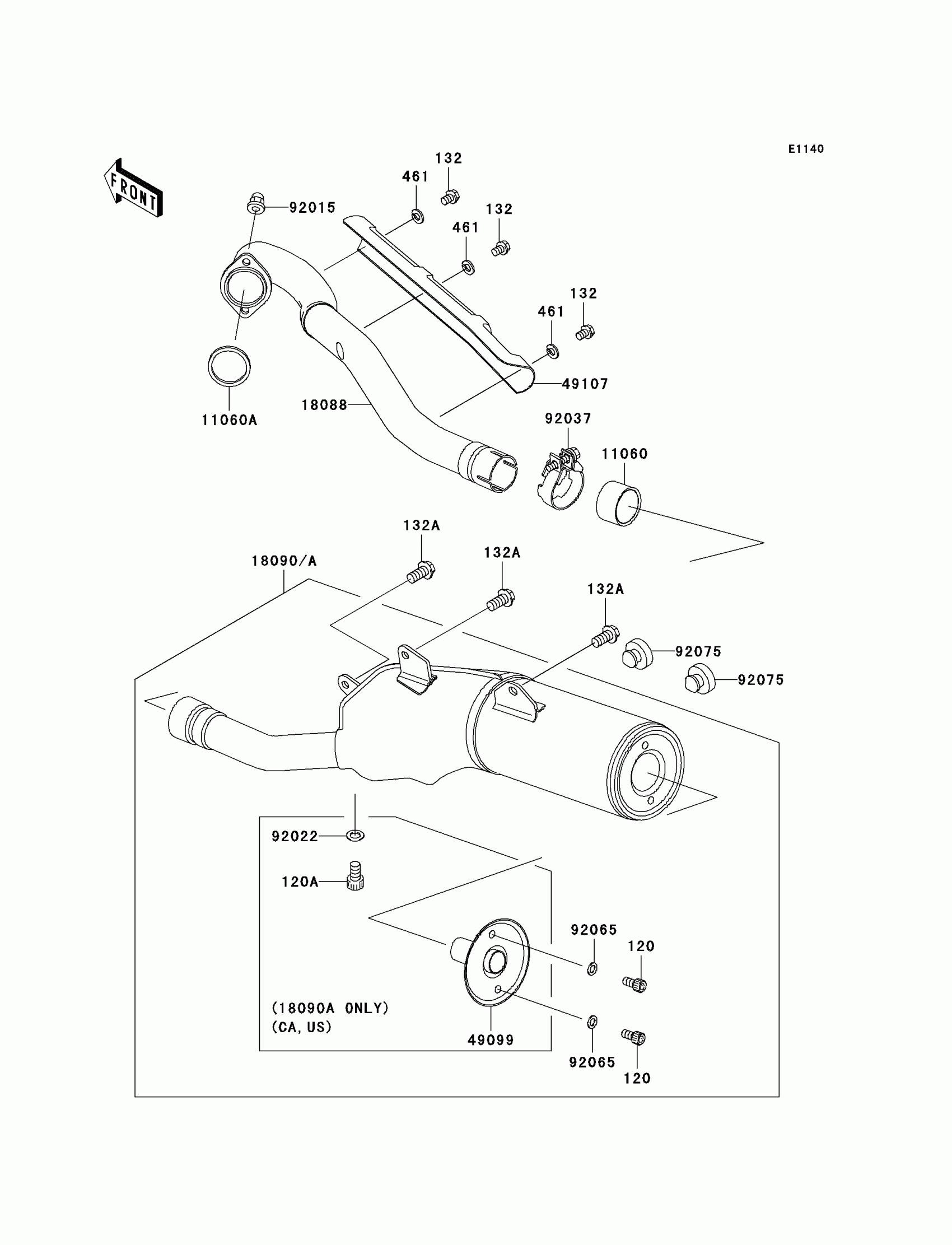

Kawasaki KLX300R Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X12

120P0612

$1.60

132

BOLT-FLANGED-SMALL

132Y0608

$3.40

132A

BOLT-FLANGED-SMALL

132Y0816

$4.35

461

WASHER-SPRING,6MM

461S0600

$1.07

11060

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11060A

GASKET,EXHAUST PIPE

11060-1203

$10.80

18088

PIPE-EXHAUST

18088-0034

$158.98

49107

COVER-EXHAUST PIPE

49107-0008

$48.78

92015

NUT,8MM

92015-1402

$4.69

92037

CLAMP,MUFFLER,BLACK

92037-1270

$20.77

92065

GASKET

92065-096

$4.65

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

120A

BOLT-SOCKET,8X14

120P0814

$4.35

18090

BODY-COMP-MUFFLER

18090-1569

$584.34

18090A

BODY-COMP-MUFFLER

18090-1570

$606.77

49099

BAFFLE-PIPE MUFFLER

49099-1541

$73.98

92022

WASHER,8.2X14X1.0

92022-1488

$4.92
