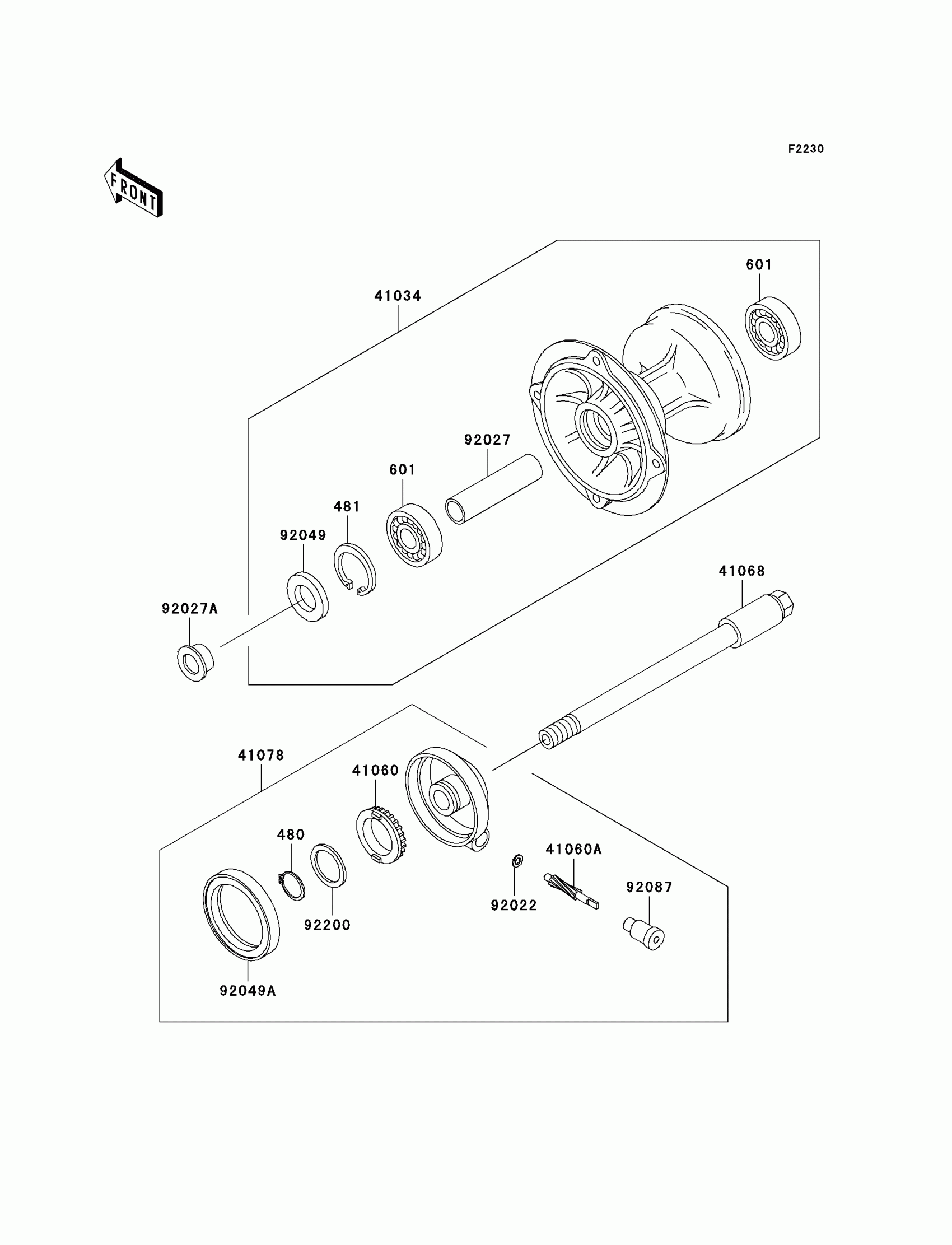

Kawasaki KLX300R Front Hub Diagram

Description

Price

480

CIRCLIP-TYPE-C,24MM

480J2400

$6.32

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.96

601

BEARING-BALL,#6202UG

601B6202UG

$20.79

41034

DRUM-ASSY,FRONT BRAKE

41034-1219

$590.50

41060

GEAR-METER SCREW,25T

41060-1143

$30.88

41060A

GEAR-METER SCREW,8T

41060-1144

$16.06

41068

AXLE,FR

41068-0013

$117.26

41078

CASE-ASSY-METER GEAR

41078-1095

$118.98

92022

WASHER,5X9.5X0.8

92022-1511

$3.92

92027

COLLAR,15.2X22.2X75

92027-1958

$40.86

92027A

COLLAR,L=12

92027-1959

$16.69

92049

SEAL-OIL,MH20354.5

92049-1176

$15.04

92049A

SEAL-OIL,SDD 50 62 7

92049-1399

$20.09

92087

BUSHING-METER GEAR

92087-1060

$19.48

92200

WASHER,24X31X0.8

92200-1137

$4.80
