Description

Price

11045

BRACKET,LICENSE

11045-1387

$16.69

14025

COVER,LICENSE LAMP

14025-1725

$18.40

23016

LAMP-ASSY,LICENSE PLATE

23016-1116

$65.92

23025

LAMP-TAIL

23025-0037

$129.46

23026A

LENS,LICENSE LAMP

23026-1064

$26.12

23035

REFLECTOR-LAMP,LICENSE

23035-1066

$19.16

39184

BRACKET-ASSY,TAIL LAMP

39184-0007

$41.62

92002

BOLT,TAPPING,5X25

92002-1831

Unavailable

92009

SCREW,TAPPING,4X20

92009-1297

$4.18

92009A

SCREW,TAPPING,4X20

92009-1378

$4.10

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,6MM

92015-1899

$4.10

92022

WASHER,5.5X20X1.2

92022-1581

Unavailable

92027

COLLAR,L=14.1

92027-1920

$6.57

92069

BULB,12V 5W

92069-1055

$5.18

92069A

BULB,12V 27/8W

92069-1093

$13.95

92075

DAMPER

92075-1870

$5.00

92143

COLLAR,5.8X9X10.5

92143-1047

$3.89

92153

BOLT,6X16

92153-0684

$4.49

92160

DAMPER,10X20X12

92160-1167

$4.69

92160A

DAMPER,TAIL LAMP

92160-1406

$40.70

11009

GASKET,TAIL LAMP

11009-1371

$13.57

23026

LENS,TAIL LAMP

23026-1053

$45.43

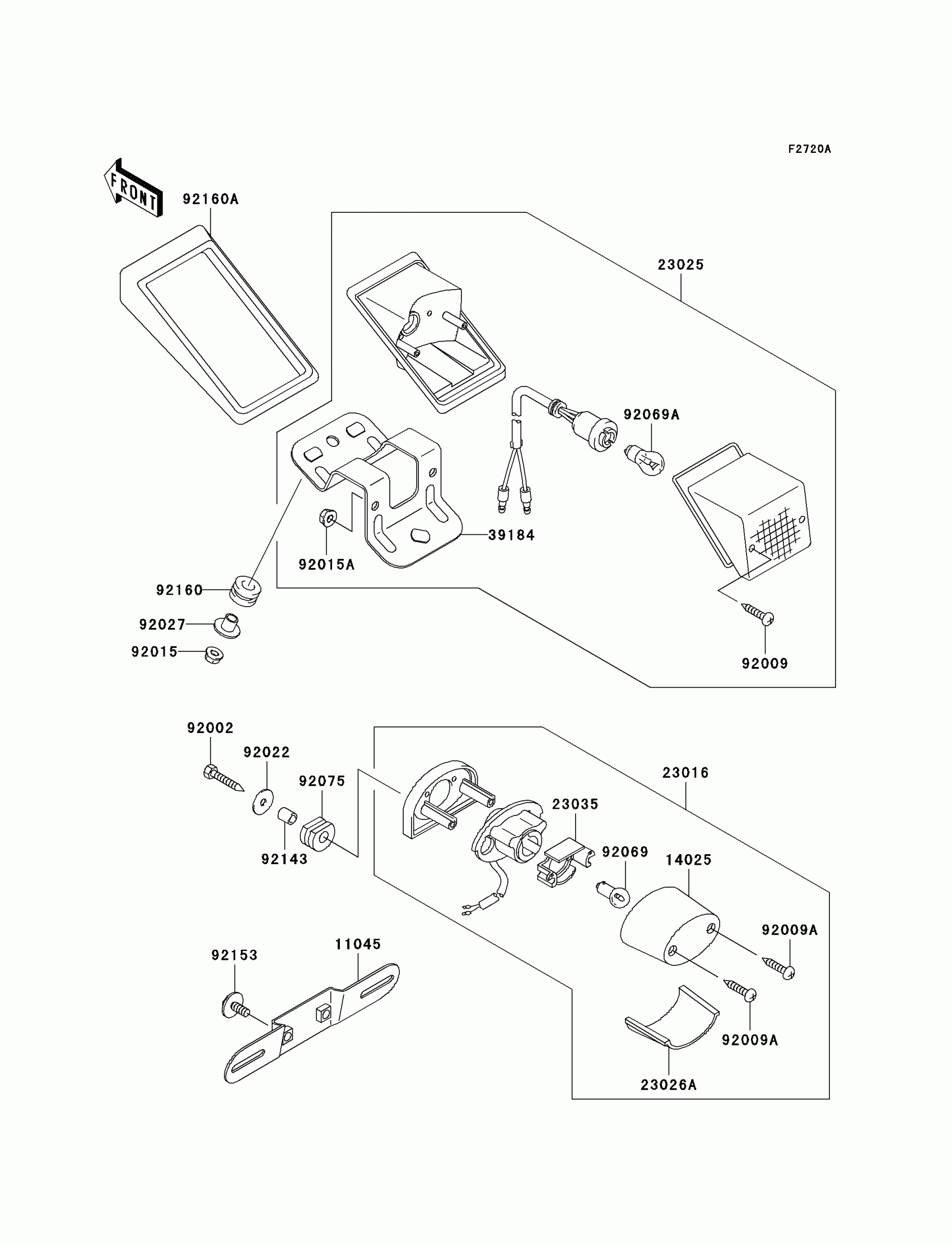

Kawasaki KLX250S Taillight(s)(H7F) Diagram

BRACKET,LICENSE

COVER,LICENSE LAMP

LAMP-ASSY,LICENSE PLATE

LAMP-TAIL

LENS,LICENSE LAMP

REFLECTOR-LAMP,LICENSE

BRACKET-ASSY,TAIL LAMP

BOLT,TAPPING,5X25

SCREW,TAPPING,4X20

SCREW,TAPPING,4X20

NUT,FLANGED,6MM

NUT,6MM

WASHER,5.5X20X1.2

COLLAR,L=14.1

BULB,12V 5W

BULB,12V 27/8W

DAMPER

COLLAR,5.8X9X10.5

BOLT,6X16

DAMPER,10X20X12

DAMPER,TAIL LAMP

GASKET,TAIL LAMP

LENS,TAIL LAMP
