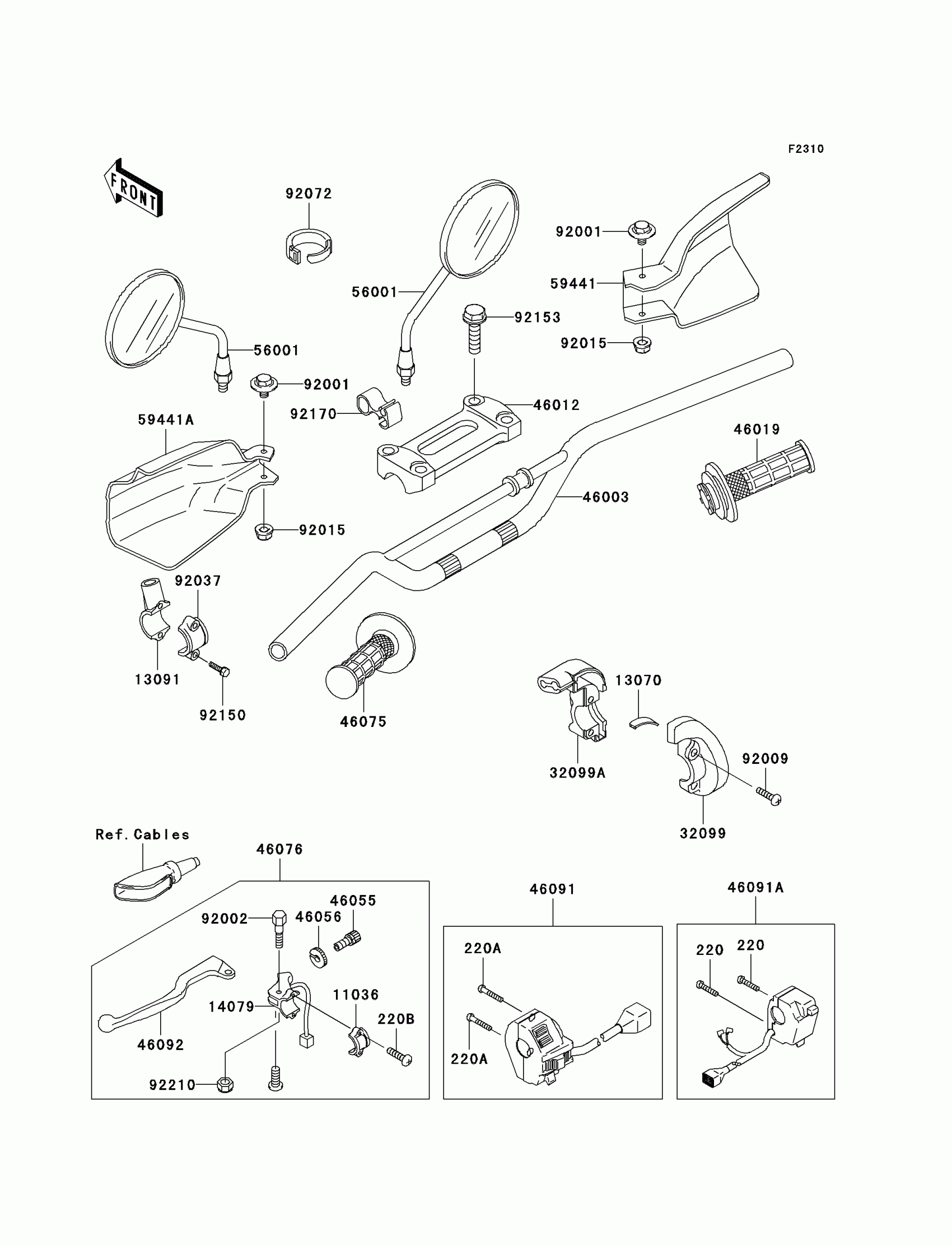

Kawasaki KLX250S Handlebar Diagram

#

Description
Price

220

SCREW-PAN-CROS,5X25

220C0525

$3.52

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROSS,5X14

220F0514

$1.81

11036

BRACKET-A,LEVER HOLDER

11036-1297

Unavailable

13070

GUIDE,THROTTLE CABLE

13070-1274

$4.65

13091

HOLDER,MIRROR

13091-1718

$41.28

14079

HOLDER-ASSY,CLUTCH CABLE

14079-1125

$40.38

32099

CASE,THROTTLE,UPP

32099-1146

$30.38

32099A

CASE,THROTTLE,LWR

32099-1147

$30.38

46003

HANDLE,P.SILVER

46003-1383-458

$132.60

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0010-458

$66.44

46019

GRIP-ASSY,THROTTLE

46019-1093

$35.31

46055

SCREW,CABLE ADJUST,8MM

46055-009

$19.07

46056

NUT,CABLE ADJUST

46056-006

$8.94

46075

GRIP,LH

46075-1149

$26.41

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1219

$55.89

46091

HOUSING-ASSY-CONTROL,LH

46091-1690

$140.74

46091A

HOUSING-ASSY-CONTROL,RH

46091-1733

$74.99

46092

LEVER-GRIP,CLUTCH

46092-1159

Unavailable

56001

MIRROR-ASSY

56001-1285

$63.48

59441

COVER-HANDLE,RH,L.GREEN

59441-0001-290

$34.94

59441A

COVER-HANDLE,LH,L.GREEN

59441-0002-290

$34.94

92001

BOLT,FLANGED,6X10

92001-1034

$10.28

92002

BOLT,LEVER SET

92002-1880

$21.15

92009

SCREW,5X16

92009-1699

$3.98

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92037

CLAMP,LEVER HOLDER

92037-1621

$27.29

92072

BAND,L=140

92072-1293

$7.11

92150

BOLT,5X20

92150-1389

$4.69

92153

BOLT,FLANGED,8X30

92153-1519

$7.37

92170

CLAMP,BRAKE HOSE

92170-1255

$9.05

92210

NUT,LOCK,6MM

92210-0006

$2.46
