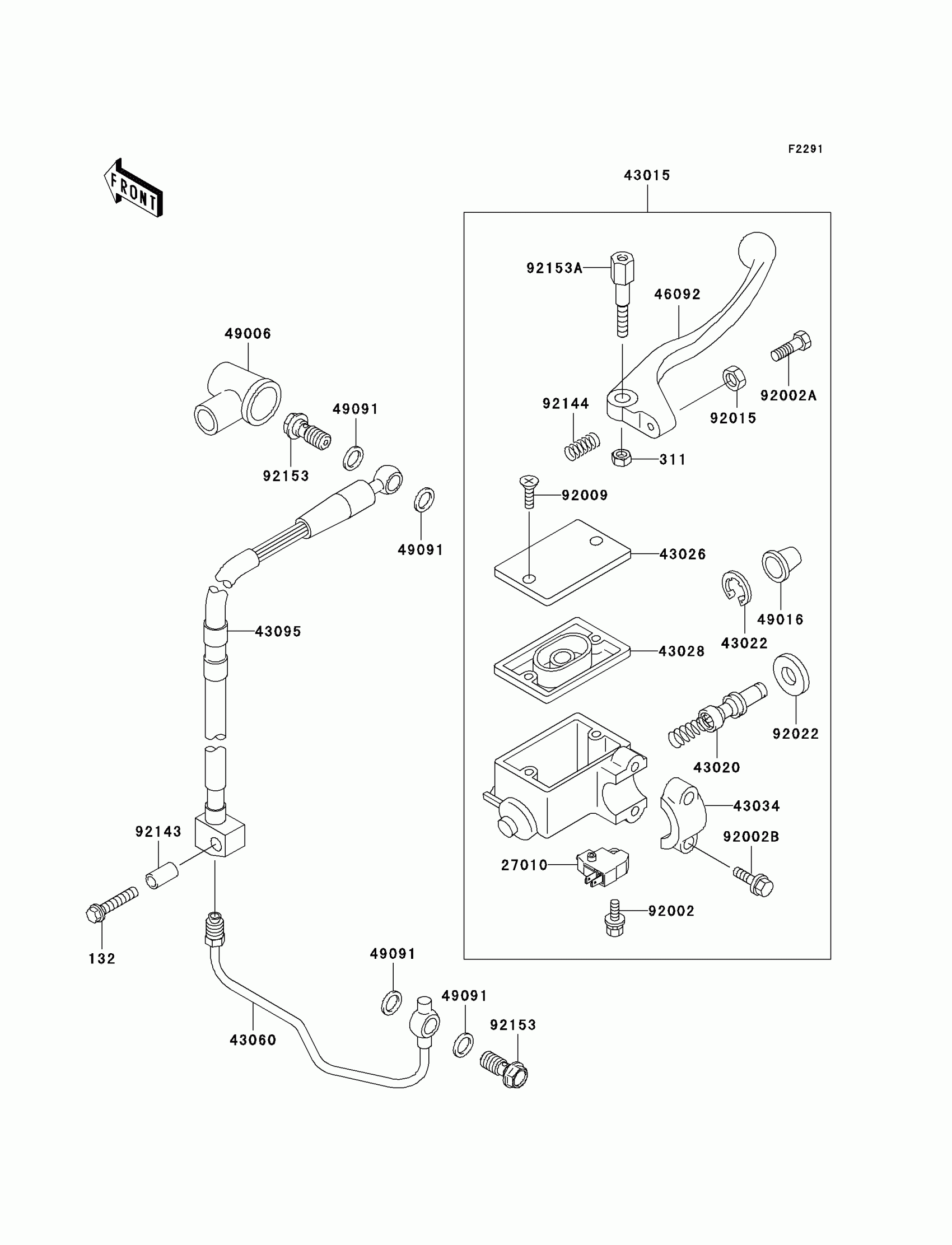

Kawasaki KLX250S Front Master Cylinder Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X30
132G0630
$2.48
311
NUT-HEX
311L0600
$1.01
27010
SWITCH,BRAKE
27010-0025
$35.04
43015
CYLINDER-ASSY-MASTER,FR
43015-0040
$298.35
43020
PISTON-COMP-BRAKE
43020-1065
$51.24
43022
STOPPER-BRAKE,PISTON
43022-1010
$4.65
43026
CAP-BRAKE
43026-1074
$25.59
43028
DIAPHRAGM
43028-1061
$16.18
43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
$19.45
43060
PIPE-BRAKE,FR
43060-1100
$58.00
43095
HOSE-BRAKE,FR
43095-0163
$135.60
46092
LEVER-GRIP,FRONT BRAKE
46092-1175
$21.91
49006
BOOT,DUST
49006-1040
$11.49
49016
COVER-SEAL,MASTER CYLINDER
49016-1044
$8.68
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92002
BOLT,SCREW,4X12
92002-1323
$3.92
92002A
BOLT,ADJUST
92002-1893
$7.45
92002B
BOLT
92002-1894
$5.52
92009
SCREW,4MM
92009-1458
$3.21
92015
NUT,ADJUST
92015-1642
$3.92
92022
WASHER
92022-1814
$4.69
92143
COLLAR,6.5X9.5X17
92143-1408
$4.76
92144
SPRING,RETURN
92144-1103
$9.43
92153
BOLT,OIL,L=23
92153-0627
$5.48
92153A
BOLT,LEVER SET
92153-0790
$19.22
