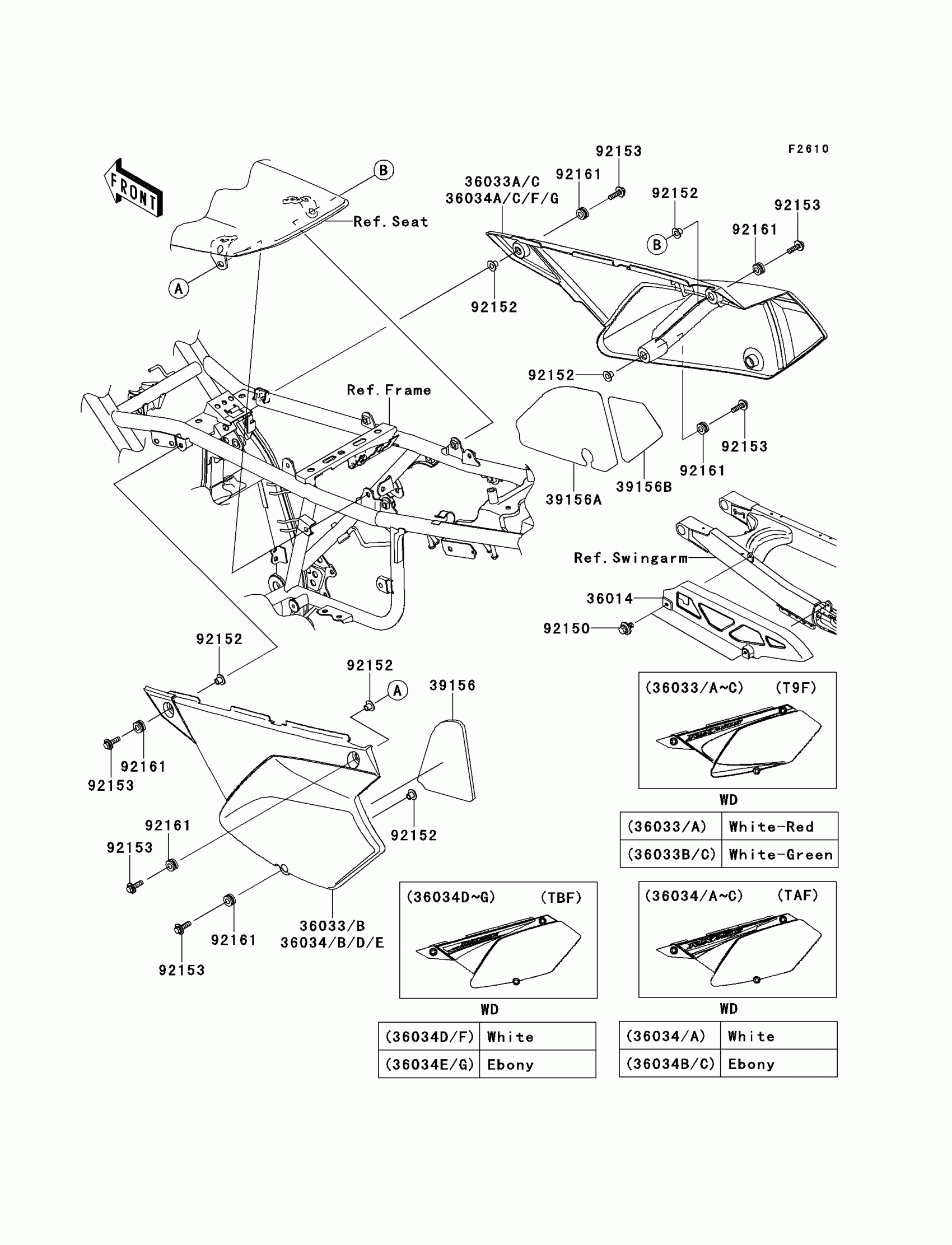

Kawasaki KLX250S (Canada Only) Side Covers/Chain Cover(T9F-TBF) Diagram

Description

Price

36014

CASE-CHAIN

36014-0050

$91.42

36034D

COVER-SIDE,LH,B.WHITE

36034-5279-266

Unavailable

36034E

COVER-SIDE,LH,EBONY

36034-5280-6C

Unavailable

36034F

COVER-SIDE,RH,B.WHITE

36034-5281-266

Unavailable

36034G

COVER-SIDE,RH,EBONY

36034-5282-6C

Unavailable

39156

PAD,SIDE COVER,LH

39156-0197

$7.53

39156A

PAD,SIDE COVER,RH

39156-0198

$29.88

39156B

PAD,SIDE COVER,RH

39156-0199

$16.24

92150

BOLT,6X12

92150-1435

$4.31

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92153

BOLT,FLANGED,6X22

92153-0950

$3.90

92161

DAMPER,8X16X8.6

92161-0685

$6.61
