Description

Price

132

BOLT-FLANGED-SMALL,6X16

132G0616

$1.47

132A

BOLT-FLANGED-SMALL,6X35

132G0635

$1.92

220

SCREW-PAN-CROS,6X8

220B0608

$0.59

221

SCREW-CSK-CROS,6X45

221B0645

$4.12

11012

CAP,SWING ARM

11012-1259

$21.80

12053

GUIDE-CHAIN,RR,INSIDE

12053-1234

$32.95

12053A

GUIDE-CHAIN,RR,OUTSIDE

12053-1235

$35.90

12053B

GUIDE-CHAIN,RR,OUTSIDE

12053-1236

$42.14

12053C

GUIDE-CHAIN,DRIVE,RR,INSIDE

12053-1270

$44.98

12053D

GUIDE-CHAIN,DRIVE,FR

12053-1328

$48.62

33001

ARM-COMP-SWING,SILVER NO.25

33001-1460-CE

Unavailable

33032

SHAFT-SWING ARM

33032-1137

$63.44

33040

ADJUSTER-CHAIN

33040-1113

$36.33

39092

PIN-HAIR

39092-1057

$4.68

42036

SLEEVE,SWING ARM

42036-1064

$21.29

92009

SCREW,SET,10X29

92009-1686

$9.05

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,14MM

92015-1407

$9.91

92043

PIN,6X45

92043-1471

$7.22

92046

BEARING-NEEDLE

92046-1128

$26.03

92143

COLLAR

92143-1156

$6.22

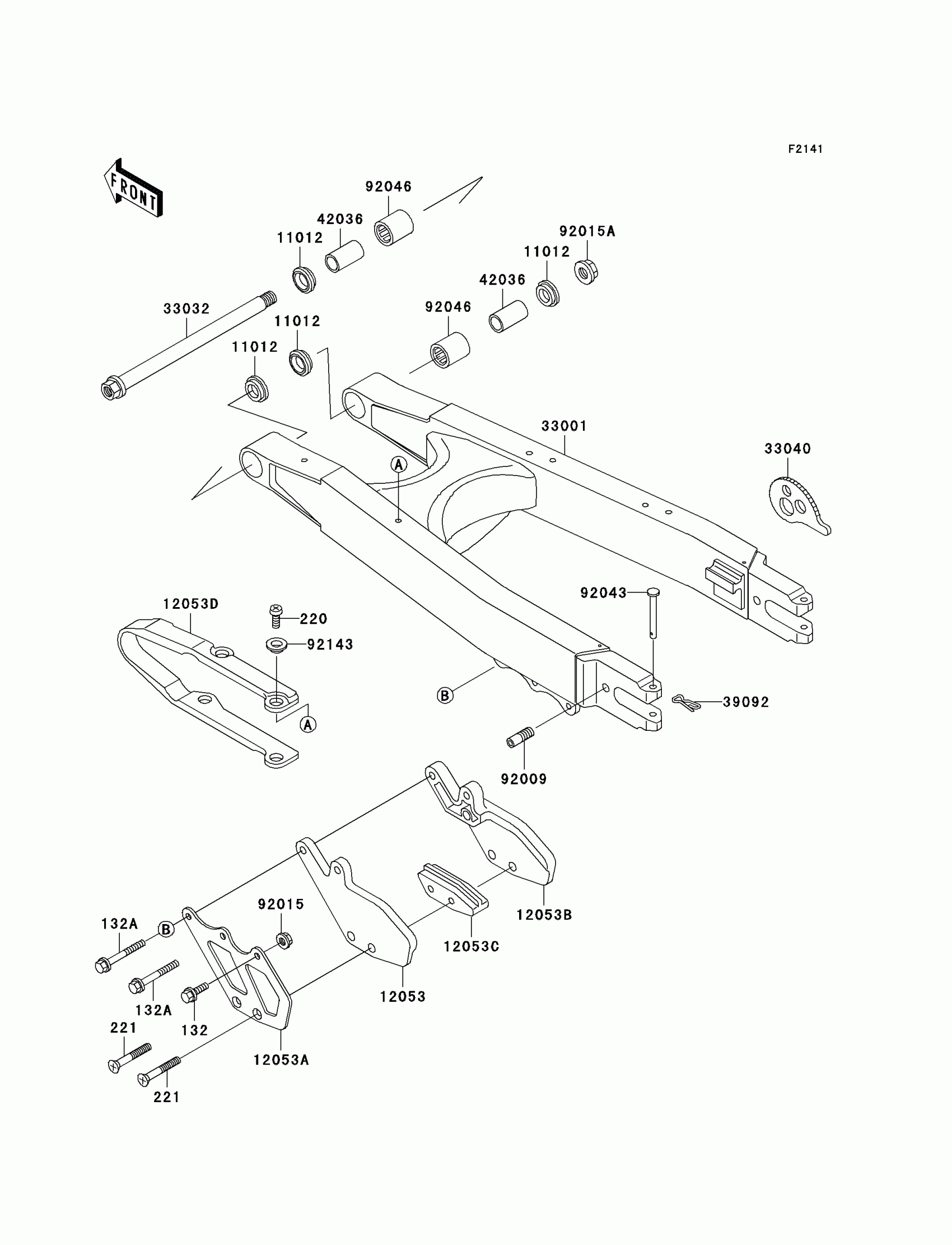

Kawasaki KLX250R Swingarm Diagram

BOLT-FLANGED-SMALL,6X16

BOLT-FLANGED-SMALL,6X35

SCREW-PAN-CROS,6X8

SCREW-CSK-CROS,6X45

CAP,SWING ARM

GUIDE-CHAIN,RR,INSIDE

GUIDE-CHAIN,RR,OUTSIDE

GUIDE-CHAIN,RR,OUTSIDE

GUIDE-CHAIN,DRIVE,RR,INSIDE

GUIDE-CHAIN,DRIVE,FR

ARM-COMP-SWING,SILVER NO.25

SHAFT-SWING ARM

ADJUSTER-CHAIN

PIN-HAIR

SLEEVE,SWING ARM

SCREW,SET,10X29

NUT,FLANGED,6MM

NUT,14MM

PIN,6X45

BEARING-NEEDLE

COLLAR
