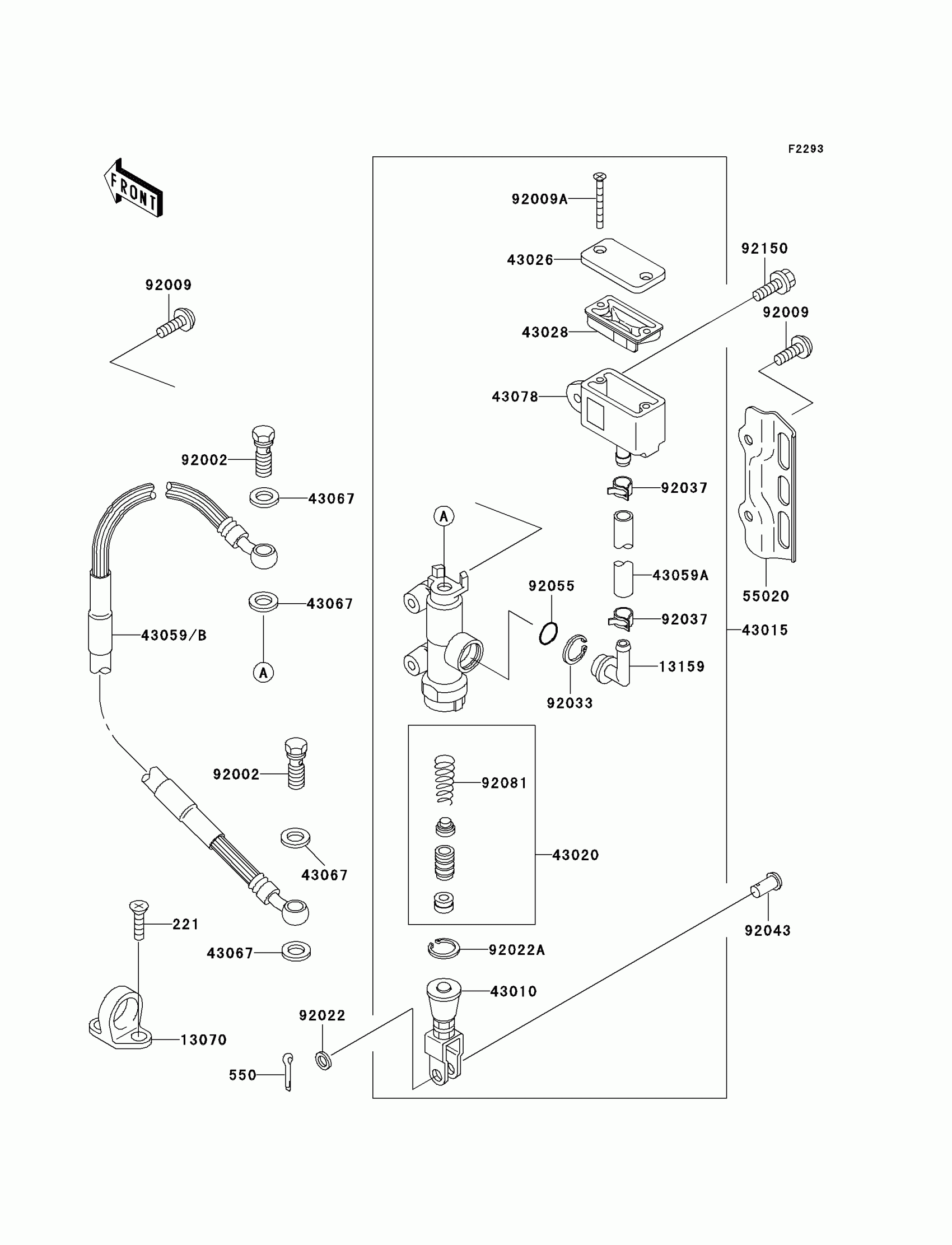

Kawasaki KLX250R Rear Master Cylinder Diagram
#
Description
Price
221
SCREW-CSK-CROS,6X16
221B0616
$0.59
550
PIN COTTER 2.0X15
550D2015
$1.04
13070
GUIDE,HOSE
13070-1144
$8.03
13159
CONNECTOR
13159-1056
$14.10
43010
ROD-ASSY-BRAKE
43010-1068
$51.24
43015
CYLINDER-ASSY-MASTER,RR
43015-1529
Unavailable
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-1075
$13.61
43028
DIAPHRAGM
43028-1067
$18.72
43059A
HOSE-BRAKE,RR MASTER CYLINDER
43059-1767
$16.90
43059B
HOSE-BRAKE,RR
43059-1827
$87.83
43067
WASHER,10.5X15X1.5
43067-001
$2.15
43078
RESERVOIR
43078-1122
$30.34
55020
GUARD,RR BRAKE RESERVOIR HOSE
55020-1489
$15.87
92002
BOLT,OIL,L=23
92002-1888
$5.48
92009
SCREW,6X14,WHITE
92009-1287
$2.55
92009A
SCREW,4X40
92009-1596
$3.94
92022
WASHER,8.5X13X1
92022-1028
$3.92
92022A
WASHER,CIRCRIP
92022-1601
Unavailable
92033
RING-SNAP,20.5MM
92033-1186
$4.96
92037
CLAMP
92037-1710
$9.91
92043
PIN
92043-1039
$9.91
92055
RING-O,MASTER CYLINDER
92055-1251
Unavailable
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92150
BOLT,6X20
92150-1339
$4.39
