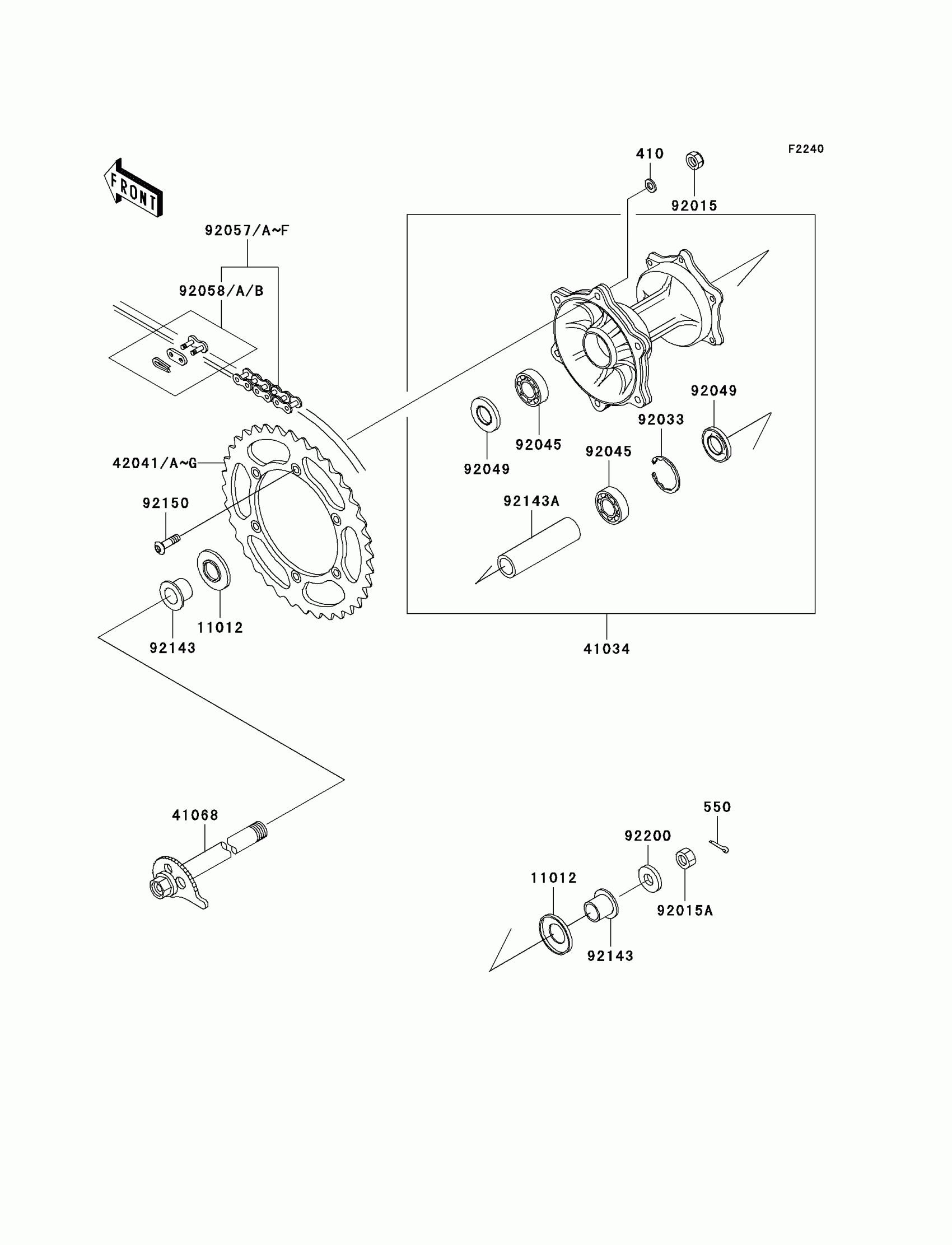

Kawasaki KLX250R Rear Hub Diagram
#
Description
Price
410
WASHER PLAIN 8MM
410B0800
$0.93
11012
CAP,AXLE
11012-1581
$6.51
41034
DRUM-ASSY,REAR BRAKE
41034-1216
$622.02
41068
AXLE,RR
41068-1340
Unavailable
42041
SPROCKET-HUB,46T
42041-1381
$73.98
42041A
SPROCKET-HUB,47T
42041-1382
$73.98
42041B
SPROCKET-HUB,48T,STEEL
42041-1383
$73.98
42041C
SPROCKET-HUB,49T,STEEL
42041-1384
$73.98
42041D
SPROCKET-HUB,50T,STEEL
42041-1408
$70.97
42041E
SPROCKET-HUB,45T
42041-1413
$73.98
42041F
SPROCKET-HUB,51T,STEEL
42041-1428
$70.97
42041G
SPROCKET-HUB,52T,STEEL
42041-1429
$70.97
92015
NUT,8MM
92015-1432
$6.57
92015A
NUT,LOCK,20MM
92015-1770
$28.25
92033
RING-SNAP,42MM
92033-1041
$6.16
92045
BEARING-BALL,6004X8JRLLX2/3A
92045-1239
$32.87
92049
SEAL-OIL,BJNC2 25425
92049-1203
$17.91
92057
CHAIN,DRIVE,DID520DS6X112L
92057-1244
Unavailable
92057B
CHAIN,DRIVE,DID520DS6X108L
92057-1376
Unavailable
92057C
CHAIN,DRIVE,EK520LV-OX108L
92057-1377
Unavailable
92057D
CHAIN,DRIVE,EK520LV-OX110L
92057-1378
Unavailable
92057E
CHAIN,DRIVE,EK520LV-OX112L
92057-1379
Unavailable
92057F
CHAIN,DRIVE,DID520DS5X110L
92057-1388
$201.45
92058
JOINT-CHAIN,DRIVE,DID520 DS6
92058-1057
$12.05
92058A
JOINT-CHAIN,DRIVE,EK
92058-1070
$11.83
92058B
JOINT-CHAIN,DRIVE,DID520 DS5
92058-1071
$12.05
92143
COLLAR,RR AXLE,L=22
92143-1259
$35.43
92143A
COLLAR,RR BRAKE DRUM,L=105
92143-1402
$17.09
92150
BOLT,SOCKET,8X28
92150-1196
$8.58
92200
WASHER,20.2X36X2
92200-1146
$5.00
550
PIN-COTTER,3.0X25
550D3025
$0.58
