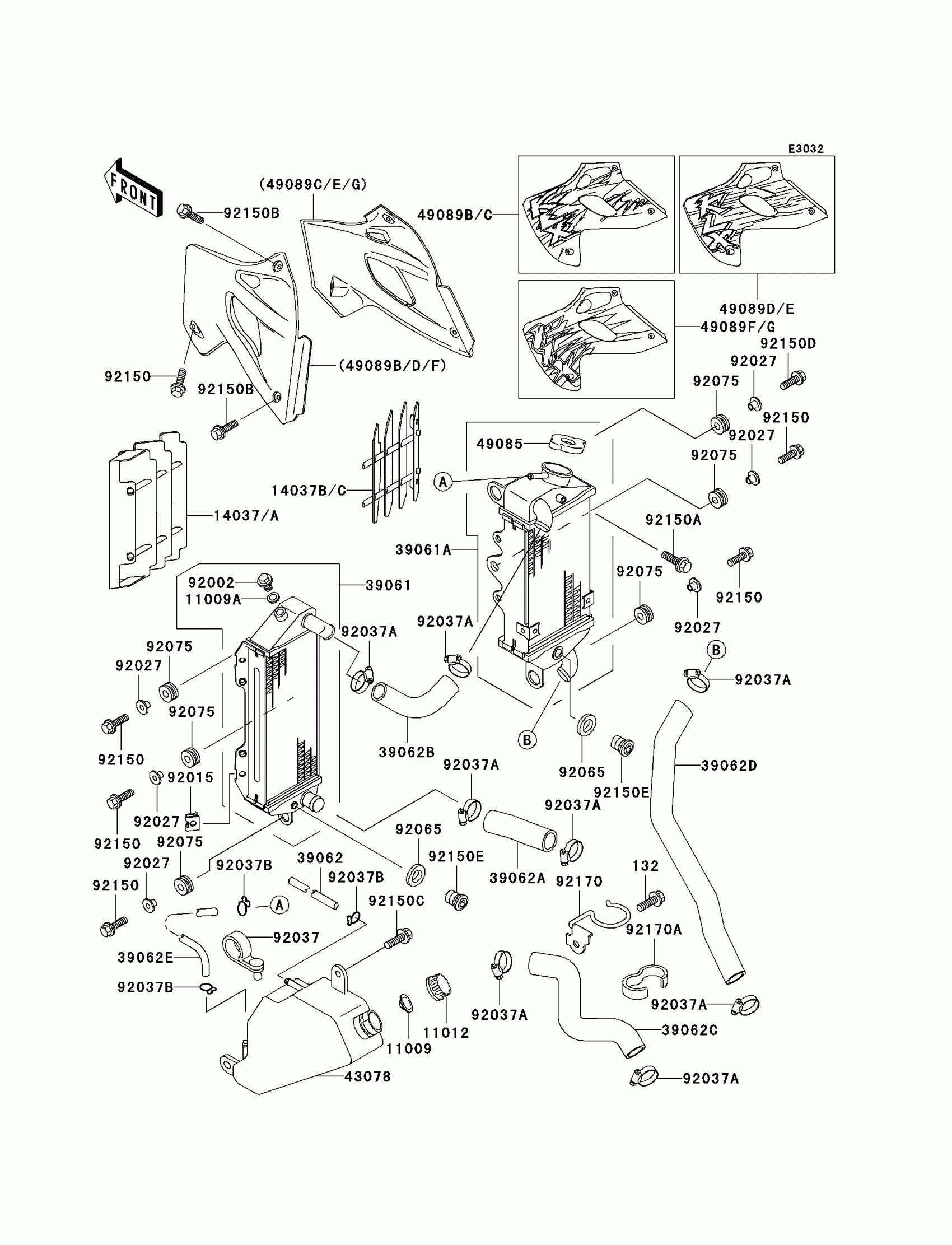

Kawasaki KLX250R Radiator Diagram
#
Description
Price
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11009A
GASKET,DRAIN BOLT
11009-1152
$7.55
11012
CAP
11012-1084
$1.72
14037
SCREEN,P.WHITE
14037-1099-6F
$23.98
14037B
SCREEN,RH,P.WHITE
14037-1121-6F
$22.68
39061
RADIATOR-ASSY,LH
39061-1193
$702.75
39061A
RADIATOR-ASSY,RH
39061-1194
$1,090.63
39062
HOSE-COOLING,5X9X420
39062-1315
Unavailable
39062A
HOSE-COOLING,HEAD-RADIATOR
39062-1535
$21.09
39062B
HOSE-COOLING,RADIATOR,L-R
39062-1536
$18.24
39062C
HOSE-COOLING,PUMP-CYLINDER
39062-1563
$28.82
39062D
HOSE-COOLING,RADIATOR-PUMP
39062-1564
$42.62
39062E
HOSE-COOLING,5X9X1080
39062-1569
$13.32
43078
RESERVOIR
43078-1140
$48.80
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
49089F
SHROUD-ENGINE,LH,P.WHITE
49089-5254-6F
$131.50
49089G
SHROUD-ENGINE,RH,P.WHITE
49089-5255-6F
$131.50
92002
BOLT,RADIATOR DRAIN
92002-1682
$20.51
92015
NUT
92015-1487
$4.80
92027
COLLAR
92027-194
$5.52
92037
CLAMP,SPEED,L=58
92037-1163
$6.57
92037A
CLAMP,COOLING HOSE
92037-1589
$18.57
92037B
CLAMP
92037-1712
$5.00
92065
GASKET,10.5X16X1
92065-058
$3.96
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92150
BOLT,6X20
92150-1339
$4.39
92150A
BOLT,6X14
92150-1340
$5.07
92150B
BOLT,6X12
92150-1435
$4.31
92150C
BOLT,FLANGED,6X14
92150-1504
$4.80
92150D
BOLT,FLANGED,6X25
92150-1507
$4.80
92150E
BOLT,10X10
92150-1867
$5.59
92170
CLAMP
92170-1357
$15.08
92170A
CLAMP
92170-1419
$5.52
132
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
