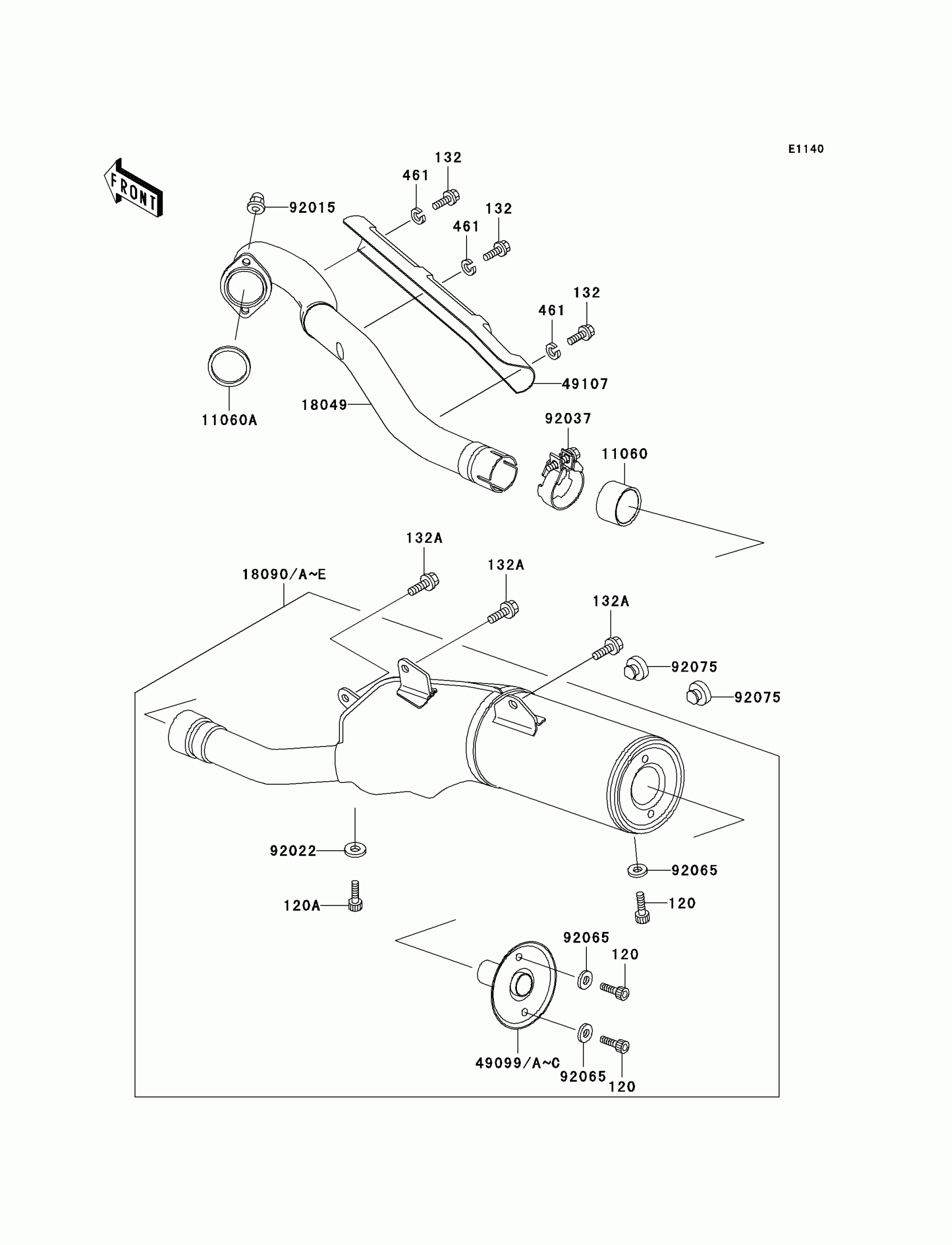

Kawasaki KLX250R Muffler(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X10

132E0610

$4.69

132A

BOLT-FLANGED-SMALL

132Y0816

$4.35

461

WASHER-SPRING,6MM

461S0600

$1.07

11060

GASKET,MANIFOLD EXHAUST

11060-1068

$28.82

11060A

GASKET,EXHAUST PIPE

11060-1203

$10.80

18049

PIPE-EXHAUST

18049-1689

$158.98

49107

COVER-EXHAUST PIPE

49107-1095

$48.78

92015

NUT,8MM

92015-1402

$4.69

92037

CLAMP,MUFFLER,BLACK

92037-1270

$20.77

92075

DAMPER RUBB MAIN STND

92075-005

$4.31

120

BOLT-SOCKET,6X12

120P0612

$1.60

120A

BOLT-SOCKET,8X14

120P0814

$4.35

18090B

BODY-COMP-MUFFLER

18090-1432

$537.57

18090E

BODY-COMP-MUFFLER

18090-1516

Unavailable

49099B

BAFFLE-PIPE MUFFLER

49099-1541

$73.98

92022

WASHER,8.2X14X1.0

92022-1488

$4.92

92065

GASKET

92065-096

$4.65
