1996 Kawasaki KLX250R Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

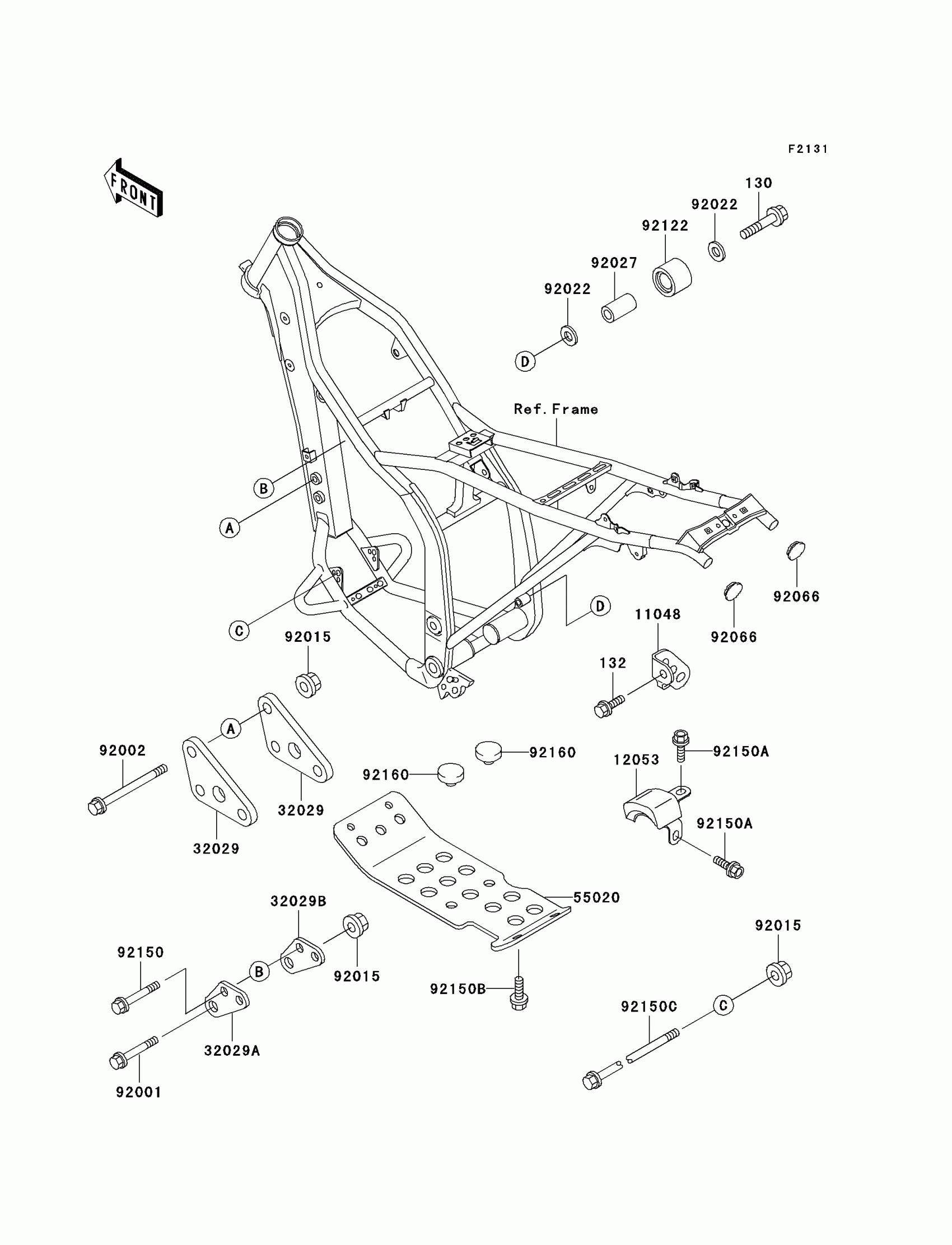

1996 Kawasaki KLX250R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

11048

1

$8.76

In stock

12053

GUIDE-CHAIN

12053-1314

1
Out of stock

32029

BRACKET-ENGINE,FR

32029-1855

1

$20.85

In stock

32029A

1

$8.54

In stock

32029B

1

$9.56

In stock

55020

GUARD,ENGINE

55020-1456

1

$95.85

In stock

92001

BOLT,FLANGED,10X44

92001-1499

1

$4.37

In stock

92002

BOLT,10X90

92002-1674

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92022

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92027

COLLAR,CHAIN ROLLER

92027-1670

1

$7.25

In stock

92066

1

$3.35

In stock

92122

ROLLER,CHAIN GUIDE

92122-1153

1

$8.44

In stock

92150

BOLT,FLANGED,8X40

92150-1168

1

$2.68

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock

92150B

BOLT,6X12

92150-1435

1

$3.43

In stock

92150C

BOLT,FLANGED,10X120

92150-1642

1

$16.78

In stock

92160

DAMPER

92160-1396

1

$4.85

In stock
