1996 Kawasaki KLX250R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1996 Kawasaki KLX250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

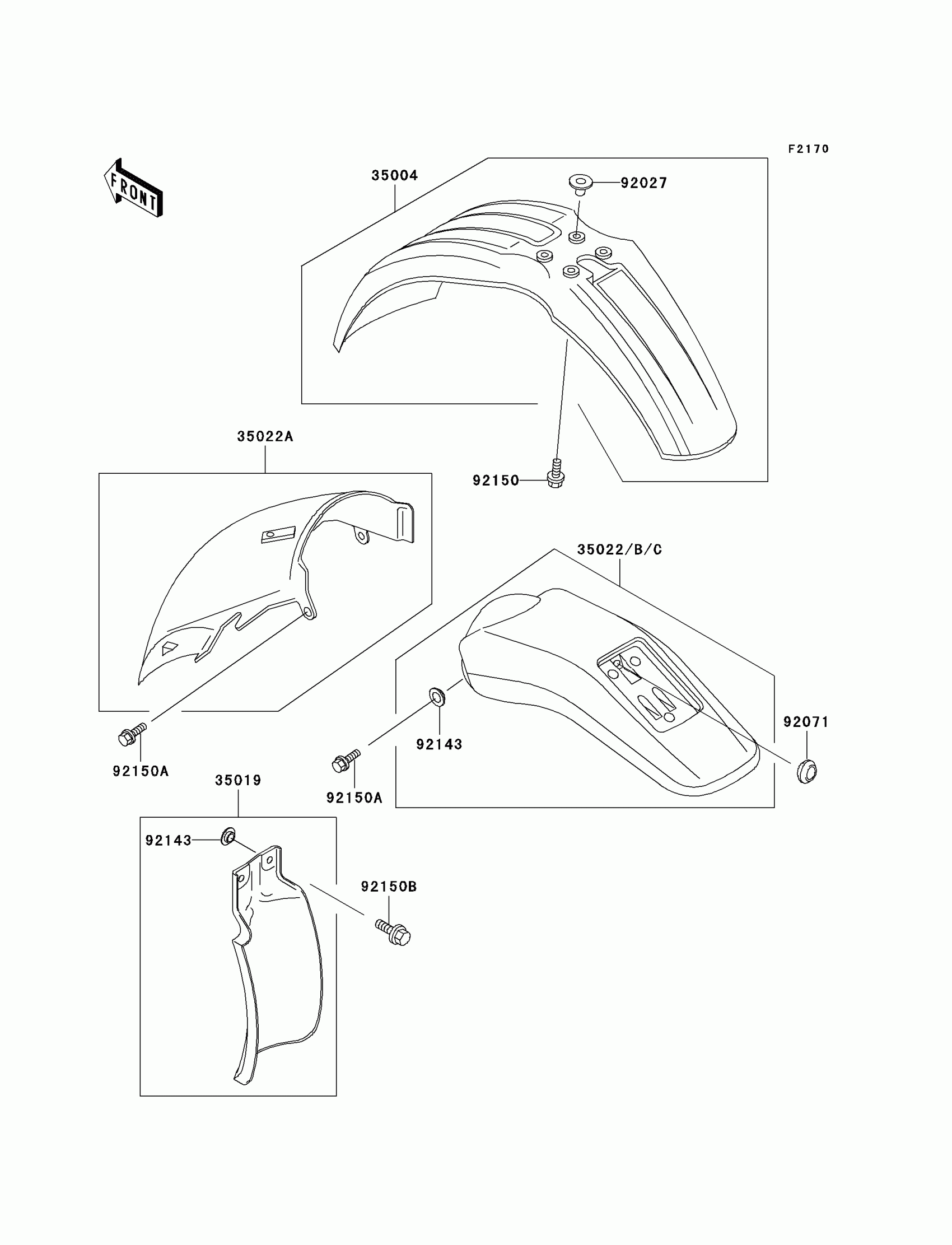

1996 Kawasaki KLX250R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-1319-6W

1
Out of stock

35019

FLAP,RR FENDER,FR

35019-1306

1

$8.82

In stock

35022A

1

$110.82

In stock

92027

COLLAR

92027-1936

1

$5.15

In stock

92071

GROMMET

92071-024

1

$4.14

In stock

92143

COLLAR

92143-1196

1

$3.72

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X14

92150-1340

1

$4.02

In stock

92150B

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

35022B

FENDER-COMP-REAR,RR,L.GREEN

35022-1299-6W

1
Out of stock

35022C

FENDER-COMP-REAR,RR,L.GREEN

35022-1300-6W

1
Out of stock
