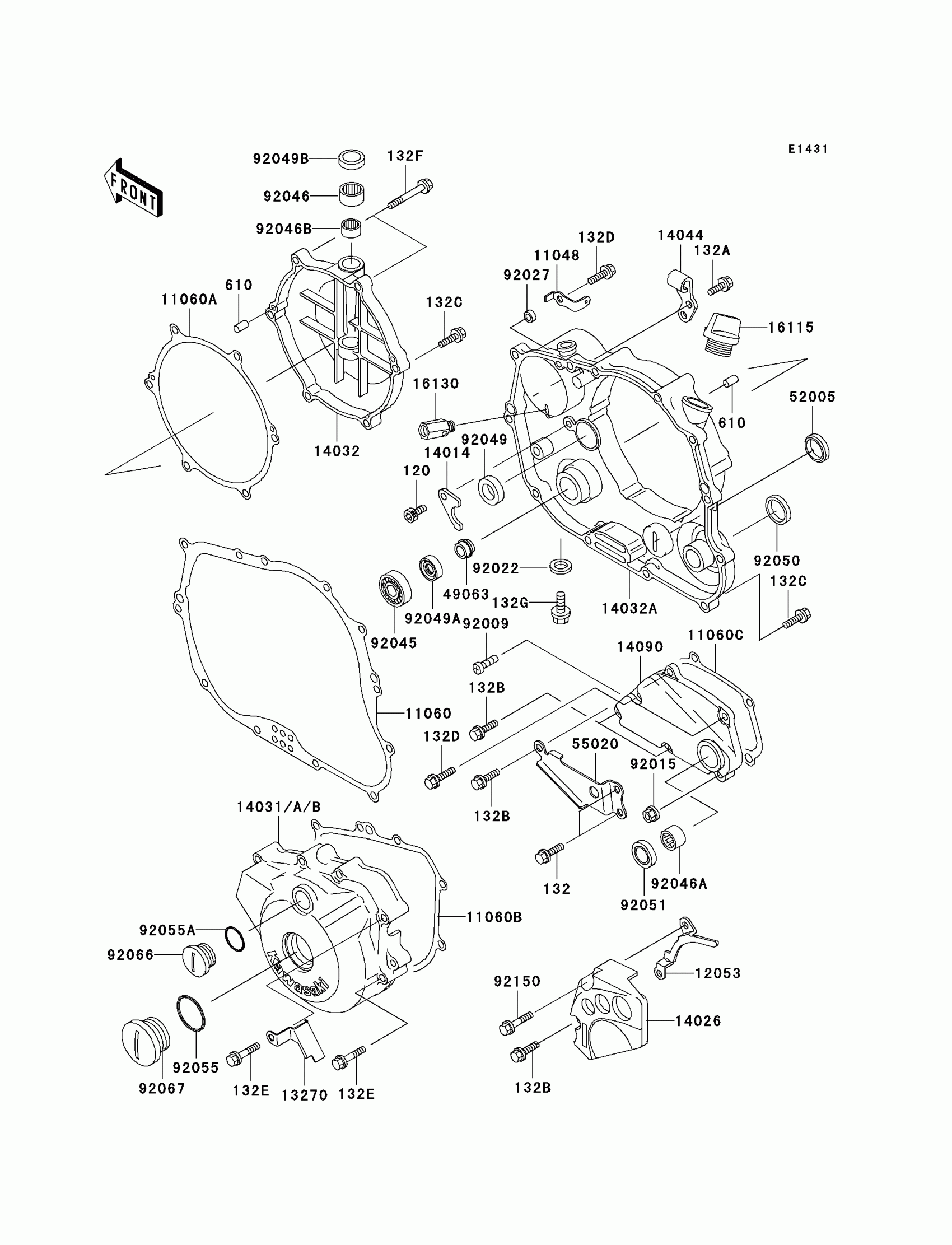

Kawasaki KLX250R Engine Cover(s) Diagram
#
120
BOLT-SOCKET,6X10
120P0610
$1.60
11048
BRACKET
11048-1300
Unavailable
11060
GASKET,CLUTCH COVER INNER
11060-1324
$41.13
11060A
GASKET,CLUTCH COVER OUTER
11060-1325
$15.87
11060B
GASKET,GENERATOR COVER
11060-1326
$20.77
11060C
GASKET,TRANSMISSION COVER
11060-1327
$14.10
12053
GUIDE-CHAIN
12053-1337
$12.96
13270
PLATE
13270-1146
Unavailable
14014
PLATE-POSITION
14014-1062
$8.10
14026
COVER-CHAIN
14026-1186
$32.29
14031A
COVER-GENERATOR
14031-1301
$204.37
14032
COVER-CLUTCH,OUTER
14032-1335
$117.93
14032A
COVER-CLUTCH,INNER
14032-1359
$271.25
14044
HOLDER-CABLE
14044-1078
$7.45
14090
COVER,TRANSMISSION
14090-1285
$101.12
16115
CAP-OIL FILLER
16115-018
$10.56
16130
VALVE-ASSY-RELIEF
16130-1001
Unavailable
49063
SEAL-MECHANICAL,WATER PUMP
49063-1002
$20.06
52005
GAUGE,OIL LEVEL
52005-1009
$18.40
55020
GUARD,TRANSMISSION COVER
55020-1460
$14.94
92009
SCREW
92009-1726
$4.67
92015
NUT,FLANGED,6MM
92015-1193
Unavailable
92022
WASHER,8.2X14X1.0
92022-1488
$4.92
92027
COLLAR,6.5X10.5X4.5
92027-1885
$6.22
92045
BEARING-BALL,6901
92045-1246
$29.76
92046
BEARING-NEEDLE,HK1210
92046-1010
Unavailable
92046A
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92046B
BEARING-NEEDLE
92046-1230
Unavailable
92049
SEAL-OIL
92049-1191
$24.41
92049A
SEAL-OIL,SC 12X22X5
92049-1228
$9.28
92049B
SEAL-OIL,AG0353-F0
92049-1262
$6.57
92050
SEAL-OIL
92050-078
$8.58
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,27.7X2.4
92055-091
$6.22
92055A
RING-O,20X2
92055-1146
$8.58
92066
PLUG,COVER
92066-1397
$14.76
92067
PLUG,30X8
92067-024
$11.29
92150
BOLT,6X35
92150-1137
$6.15
132
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
132A
BOLT-FLANGED-SMALL,6X16
132Y0616
$3.84
132B
BOLT-FLANGED-SMALL,6X20
132Y0620
$3.84
132C
BOLT-FLANGED-SMALL,6X25
132Y0625
$5.02
132D
BOLT-FLANGED-SMALL,6X30
132Y0630
$3.41
132E
BOLT-FLANGED-SMALL,6X40
132Y0640
$4.80
132F
BOLT-FLANGED-SMALL
132Y0670
$5.25
132G
BOLT-FLANGED-SMALL,8X10
132Y0810
$4.35
610
ROLLER,4X8
610A0408
$4.31
