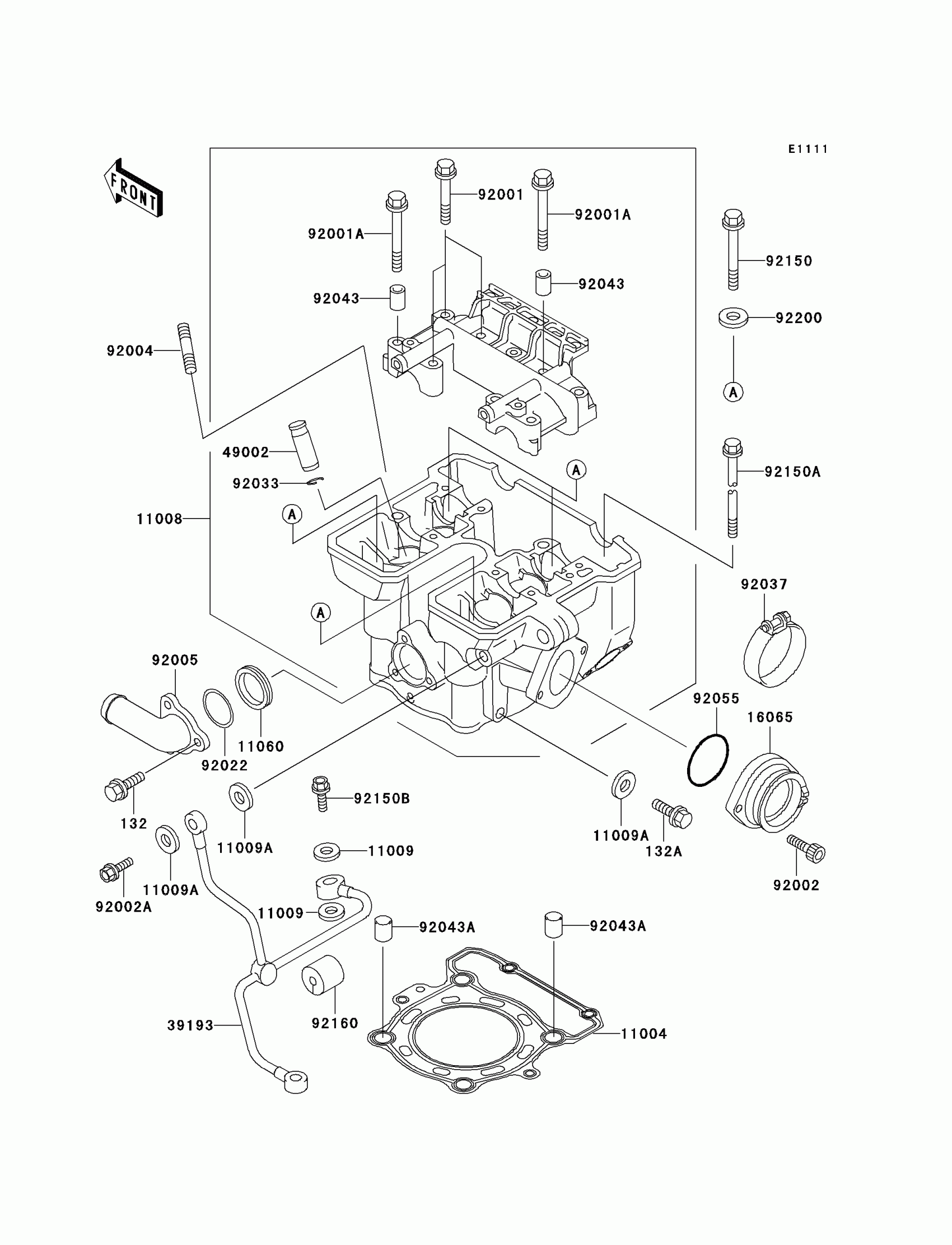

Kawasaki KLX250R Cylinder Head Diagram
#
Description
Price
132
BOLT-FLANGED-SMALL,6X12
132Y0612
$1.92
132A
BOLT-FLANGED-SMALL,8X10
132Y0810
$4.35
11004
GASKET-HEAD
11004-1249
$46.85
11008
HEAD-COMP-CYLINDER
11008-1277
Unavailable
11009
GASKET,10X14.5X1.5
11009-1105
$6.51
11009A
GASKET,8.2X14X1.0
11009-1344
$3.17
11060
GASKET,THERMOSTAT
11060-1300
$6.51
16065
HOLDER-CARBURETOR
16065-1279
Unavailable
39193
PIPE-OIL
39193-1011
$130.02
49002
GUIDE-VALVE
49002-1126
Unavailable
92001
BOLT,FLANGED,6X38
92001-1105
$4.69
92001A
BOLT,6X46
92001-1872
$4.31
92002
BOLT,6X16
92002-1143
$3.92
92002A
BOLT,BANJO,8X20
92002-1618
$10.56
92004
STUD,8X22
92004-1217
$5.65
92005
FITTING
92005-1258
$36.12
92022
WASHER,25.3X30X1
92022-161
$10.65
92033
RING-SNAP
92033-1247
$3.91
92037
CLAMP,ID=53,BLACK
92037-1304
$10.28
92043
PIN,6.2X8X14
92043-1263
$0.43
92043A
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O
92055-1255
$18.57
92150
BOLT,10X165
92150-1368
$18.89
92150A
BOLT,6X135
92150-1552
$7.34
92150B
BOLT,BANJO,10X23
92150-1641
$14.23
92160
DAMPER,6.3X22X20
92160-1013
$8.66
92200
WASHER,10.5X19X2.3
92200-1042
$3.92
