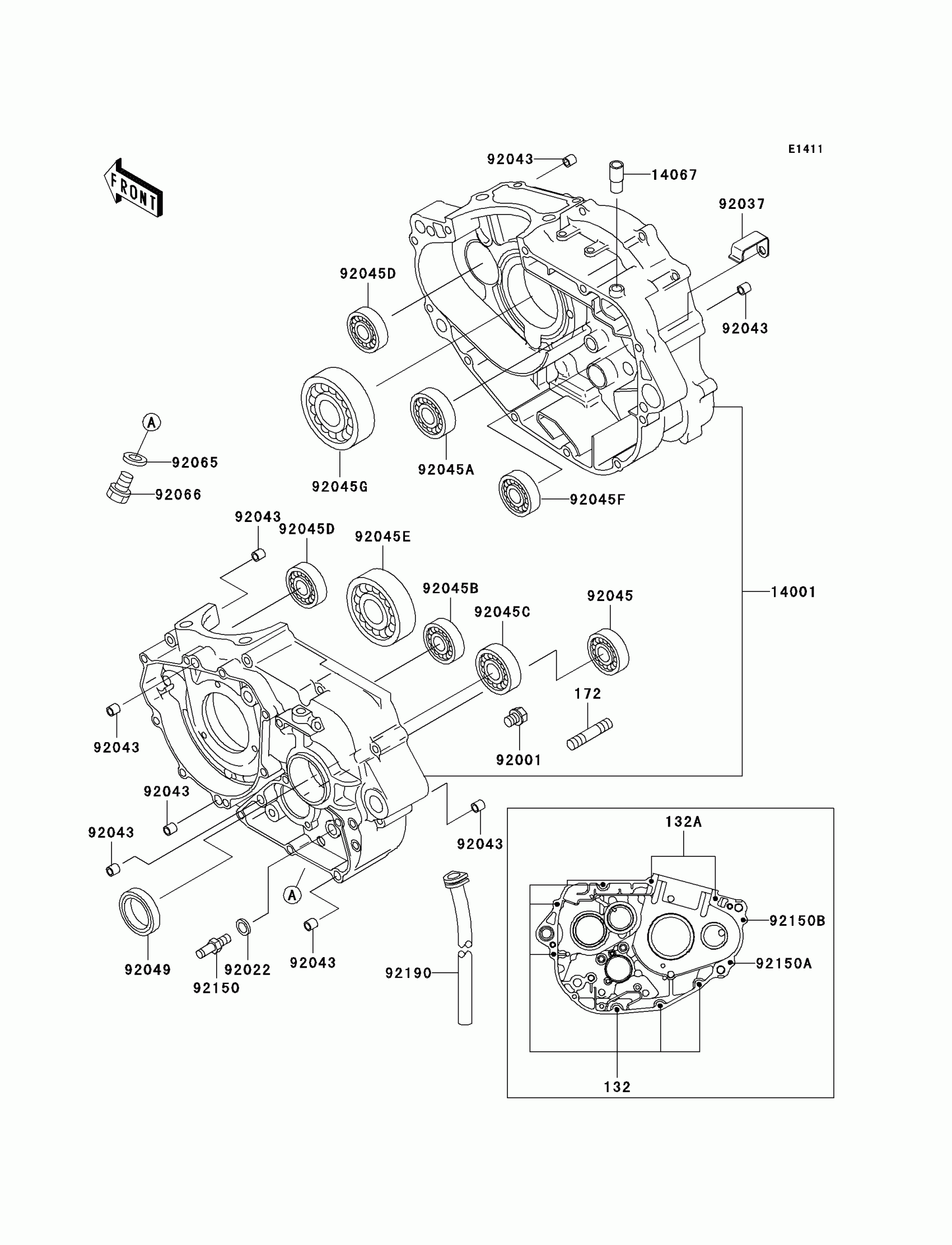

Kawasaki KLX250R Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL

132Y0650

$4.44

132A

BOLT-FLANGED-SMALL

132Y0670

$5.25

172

BOLT-STUD,6X80

172G0680

$2.76

14001

SET-CRANKCASE

14001-5318

Unavailable

14067

FITTING,BREATHER

14067-006

$21.09

92001

BOLT,W/WASHER,6X14

92001-1829

$3.92

92022

WASHER,10X15X1.0

92022-1973

$4.69

92037

CLAMP,HARNESS

92037-1318

$7.34

92043

PIN,6.2X8X14

92043-1263

$0.43

92045

BEARING-BALL,#6905

92045-036

$27.88

92045A

BEARING-BALL,TMB204 JR

92045-1041

$32.24

92045B

BEARING-BALL,TMB203LU

92045-1287

$26.30

92045C

BEARING-BALL,TMB205LU

92045-1288

$34.71

92045D

BEARING-BALL,TMB302JR2C3

92045-1289

$18.83

92045E

BEARING-BALL,TMB207JR2C4

92045-1290

$38.39

92045F

BEARING-BALL,TMB203

92045-1291

$20.71

92045G

BEARING-BALL,TMB306JR2C3

92045-1292

$40.12

92049

SEAL-OIL,TC32457

92049-1159

$8.60

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG,DRAIN

92066-1241

$6.51

92150

BOLT,RETURN SPRING

92150-1803

$9.51

92150A

BOLT,SOCKET,6X50

92150-1874

$5.66

92150B

BOLT,SOCKET,6X35

92150-1875

$5.29

92190

TUBE

92190-1493

$11.66
