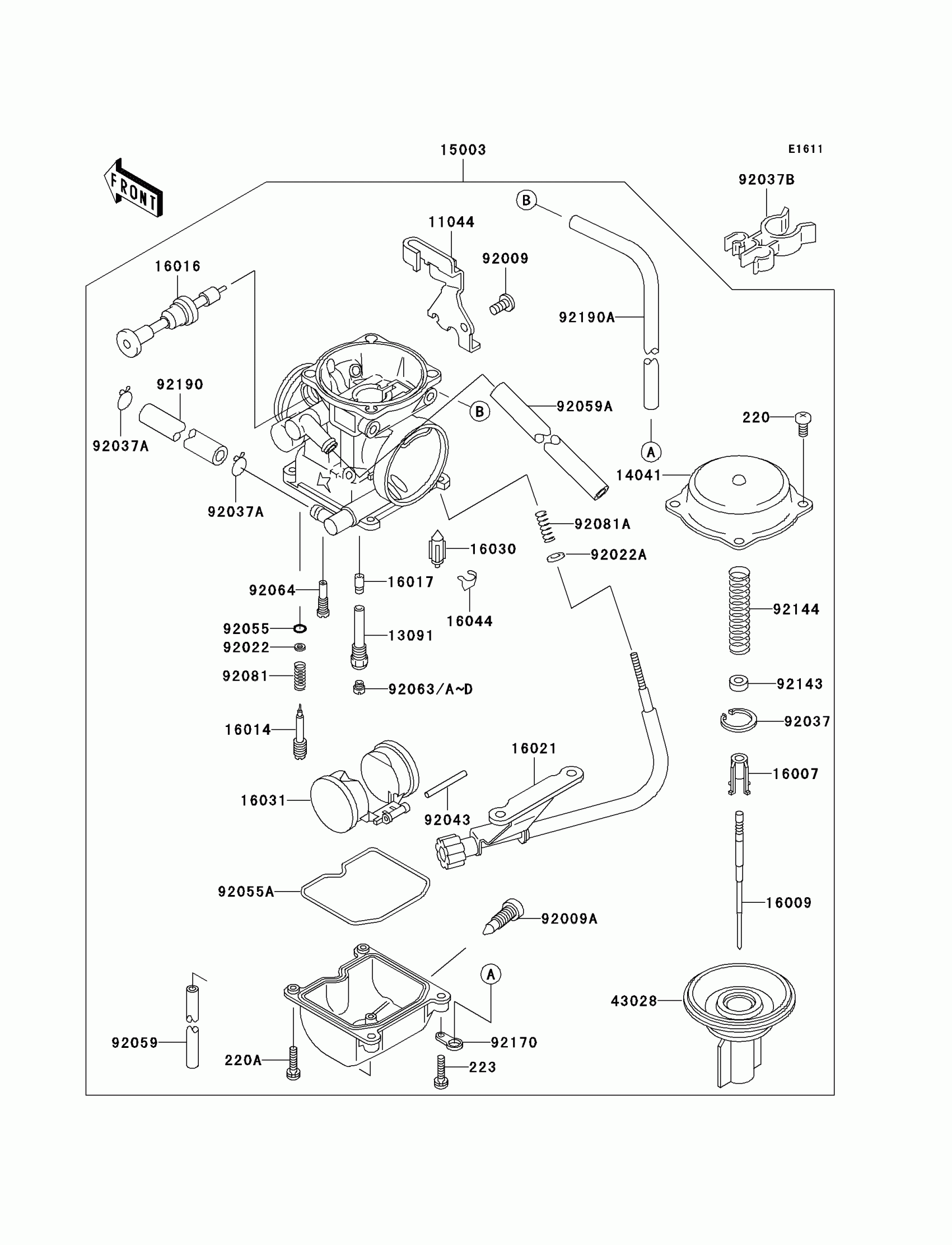

Kawasaki KLX250R Carburetor Diagram
#
11044
BRACKET,THROTTLE CABLE
11044-1353
$59.62
13091
HOLDER,NEEDLE JET
13091-1259
$33.38
14041
TOP-CHAMBER,MIXING,INSIDE
14041-1077
$95.95
15003
CARBURETOR-ASSY
15003-1188
$509.07
16007
SEAT-SPRING,THROTTLE VALVE
16007-1120
$26.23
16009
NEEDLE-JET,N1SA
16009-1790
$31.74
16014
SCREW-PILOT AIR
16014-1054
$24.57
16016
PLUNGER,STARTER
16016-1068
$50.27
16017
JET-NEEDLE
16017-1368
$49.12
16021
SCREW-THROTTLE STOP
16021-1144
Unavailable
16030
VALVE-FLOAT
16030-1007
$47.99
16031
FLOAT
16031-1056
$53.59
16044
CLAMP,FLOAT VALVE
16044-007
$7.91
43028
DIAPHRAGM,VALVE
43028-1080
$200.34
92009
SCREW,5X10
92009-1365
$7.34
92009A
SCREW,DRAIN,M6X0.75
92009-1551
$9.91
92022
WASHER,PLAIN
92022-1003
$4.31
92022A
WASHER,PLAIN,STOP SPRING
92022-1480
$5.00
92037
CLAMP,JET NEEDLE
92037-1401
$4.31
92037A
CLAMP,TUBE
92037-1531
$5.52
92037B
CLAMP
92037-1886
$8.98
92043
PIN,FLOAT
92043-1207
$11.14
92055
RING-O,PILOT ADJUST
92055-1002
$4.31
92055A
RING-O,FLOAT CHAMBER
92055-1222
$17.44
92059
TUBE,3.5X6.5X330
92059-1110
Unavailable
92059A
TUBE,6.5X9.5X350
92059-1237
$23.79
92063
JET-MAIN,#118
92063-1071
$14.79
92063A
JET-MAIN,#120
92063-1072
$14.79
92063B
JET-MAIN,#110
92063-1114
$14.79
92063C
JET-MAIN,#112
92063-1117
$14.79
92063D
JET-MAIN,#115
92063-1118
$14.79
92064
JET-PILOT,#35
92064-1101
$17.03
92081
SPRING,PILOT ADJUST SCREW
92081-1002
$5.46
92081A
SPRING,THROTTLE STOP SCREW
92081-1617
$6.11
92143
COLLAR
92143-1667
$6.12
92144
SPRING,DIAPHRAGM VALVE
92144-1745
$19.56
220
SCREW PAN HEAD 4X8
220B0408
$0.67
220A
SCREW-PAN-CROS,4X14
220D0414
$4.60
223
SCREW-PAN-WS-CROS,4X16
223D0416
Unavailable
92170
CLAMP,TUBE
92170-1496
$13.04
92190
TUBE,6.5X11.5X100
92190-1474
Unavailable
92190A
TUBE,5X8X430
92190-1560
$22.46
