Description

Price

132

BOLT-FLANGED-SMALL

132G0612

$1.17

11011

CASE-AIR FILTER

11011-1399

$140.73

11012

CAP,AIR FILTER

11012-1834

Unavailable

11013

ELEMENT-AIR FILTER

11013-1196

Unavailable

11060

GASKET,AIR FILTER CASE

11060-1323

Unavailable

13091

HOLDER,ELEMENT

13091-1454

$50.19

13091A

HOLDER,ELEMENT

13091-1835

$43.67

13270

PLATE,DUCT FITTING

13270-1284

$20.46

14073

DUCT,AIR FILTER

14073-1561

$30.85

14073A

DUCT,AIR INLET

14073-1577

$51.94

49006

BOOT

49006-1211

$6.63

52014

ELBOW

52014-1083

$7.84

92002

BOLT,WING

92002-1719

$6.57

92005

FITTING

92005-1236

$9.64

92015

NUT,FLANGED,5MM

92015-1656

$3.21

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92037

CLAMP

92037-1861

$9.21

92037A

CLAMP,TUBE

92037-213

$4.31

92062

NOZZLE

92062-1076

$15.08

92150

BOLT,6X20

92150-1339

$4.39

92170

CLAMP

92170-1448

$8.10

92190

TUBE,BREATHER

92190-1397

$11.88

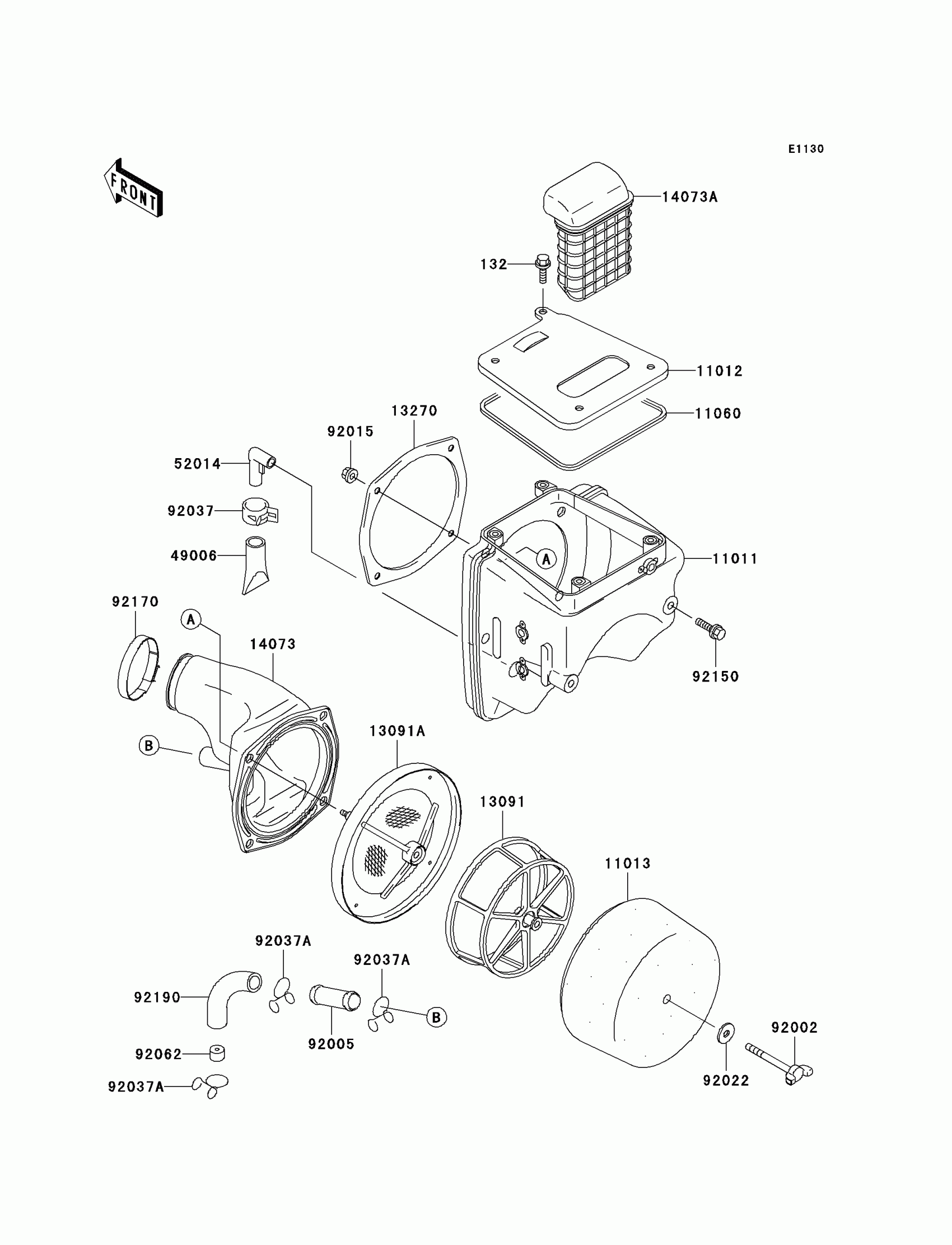

Kawasaki KLX250R Air Cleaner Diagram

BOLT-FLANGED-SMALL

CASE-AIR FILTER

CAP,AIR FILTER

ELEMENT-AIR FILTER

GASKET,AIR FILTER CASE

HOLDER,ELEMENT

HOLDER,ELEMENT

PLATE,DUCT FITTING

DUCT,AIR FILTER

DUCT,AIR INLET

BOOT

ELBOW

BOLT,WING

FITTING

NUT,FLANGED,5MM

WASHER,6.5X20X1.6

CLAMP

CLAMP,TUBE

NOZZLE

BOLT,6X20

CLAMP

TUBE,BREATHER
