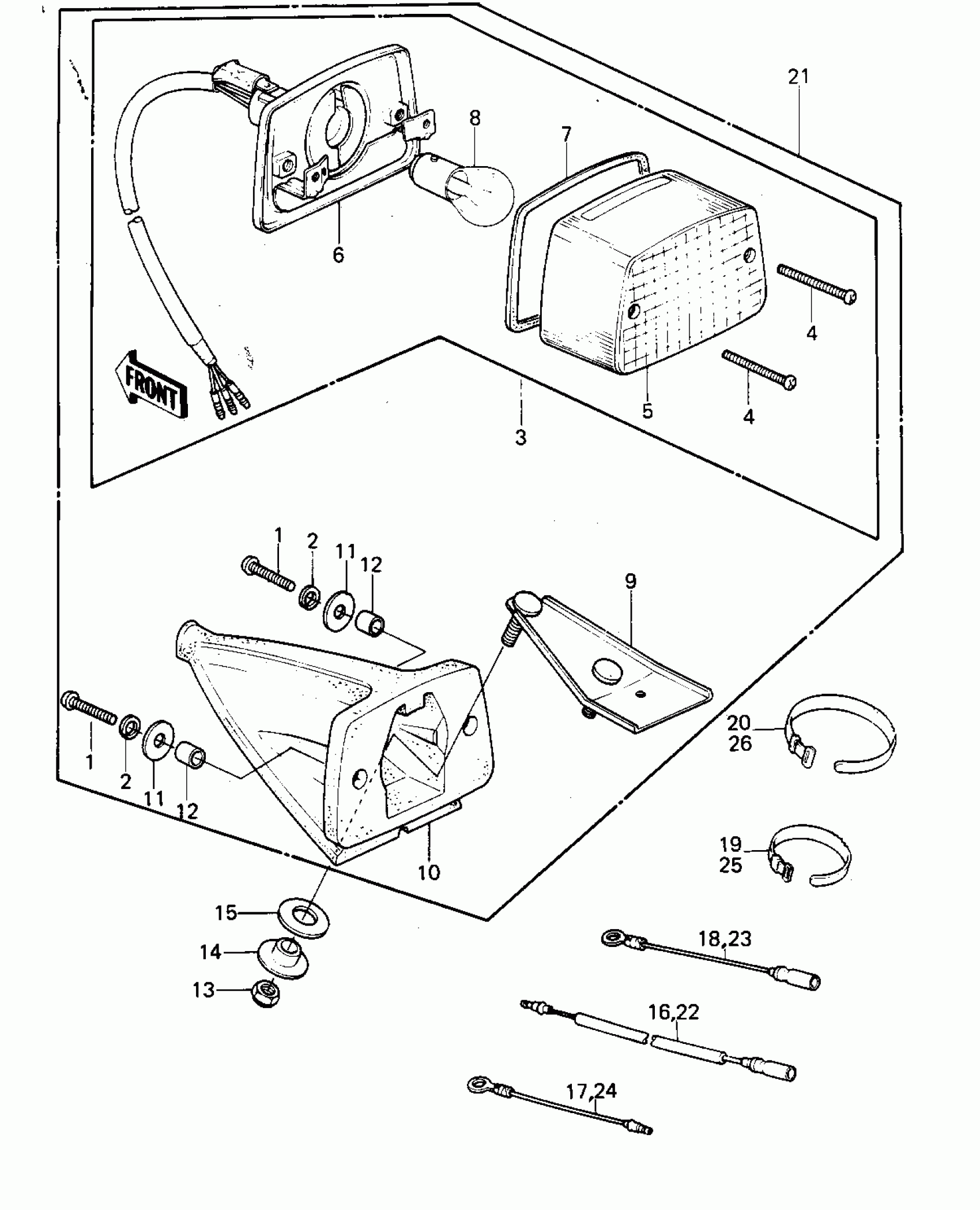

Kawasaki KLX250 TAILLIGHT (KLX250-A2) (OPTIONAL FOR KLX2 Diagram

#

Description

Price

1

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

2

WASHER SPRING 5MM

461F0500

Unavailable

3

LAMP,TAIL

23025-075

Unavailable

4

SCREW-PAN-CROS

220B0330

Unavailable

5

LENS,TAIL LAMP

23026-040

Unavailable

6

CASE,TAIL LAMP

23027-044

Unavailable

7

GASKET,TAIL LIGHT

23028-020

Unavailable

8

BULB,6V 17/5.3W

92069-028

Unavailable

9

BRACKET,TAIL LAMP

23036-4001

Unavailable

10

BODY,TAIL LAMP

23069-4001

Unavailable

11

WASHER,TAIL LAMP

92022-4001

Unavailable

12

COLLAR,TAIL LAMP

92027-4002

Unavailable

13

NUT,LOCK,6MM

92019-008

Unavailable

14

COLLAR

92027-1045

Unavailable

15

DAMPER RUBBER

92075-118

Unavailable

16

WIRE, TAILLAMP

26011-4001

Unavailable

17

WIRE, GROUND HEADLAMP

26011-4002

Unavailable

18

WIRE, GROUND TAILLITE

26011-4003

Unavailable

19

BAND

92072-3505

Unavailable

20

BAND,L=292.1

92072-3509

Unavailable

21

TAIL LAMP ASSY

23024-4001

Unavailable

22

WIRE,LEAD

26011-1067

Unavailable

23

WIRE,LEAD

26011-1068

Unavailable

24

WIRE,LEAD

26011-1069

Unavailable

25

BAND,L=123

92072-030

Unavailable

26

BAND,L=186

92072-056

Unavailable
