1980 Kawasaki KLX250 Seat/side Covers Diagram

← All diagrams

Find the part on the Seat/side Covers diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

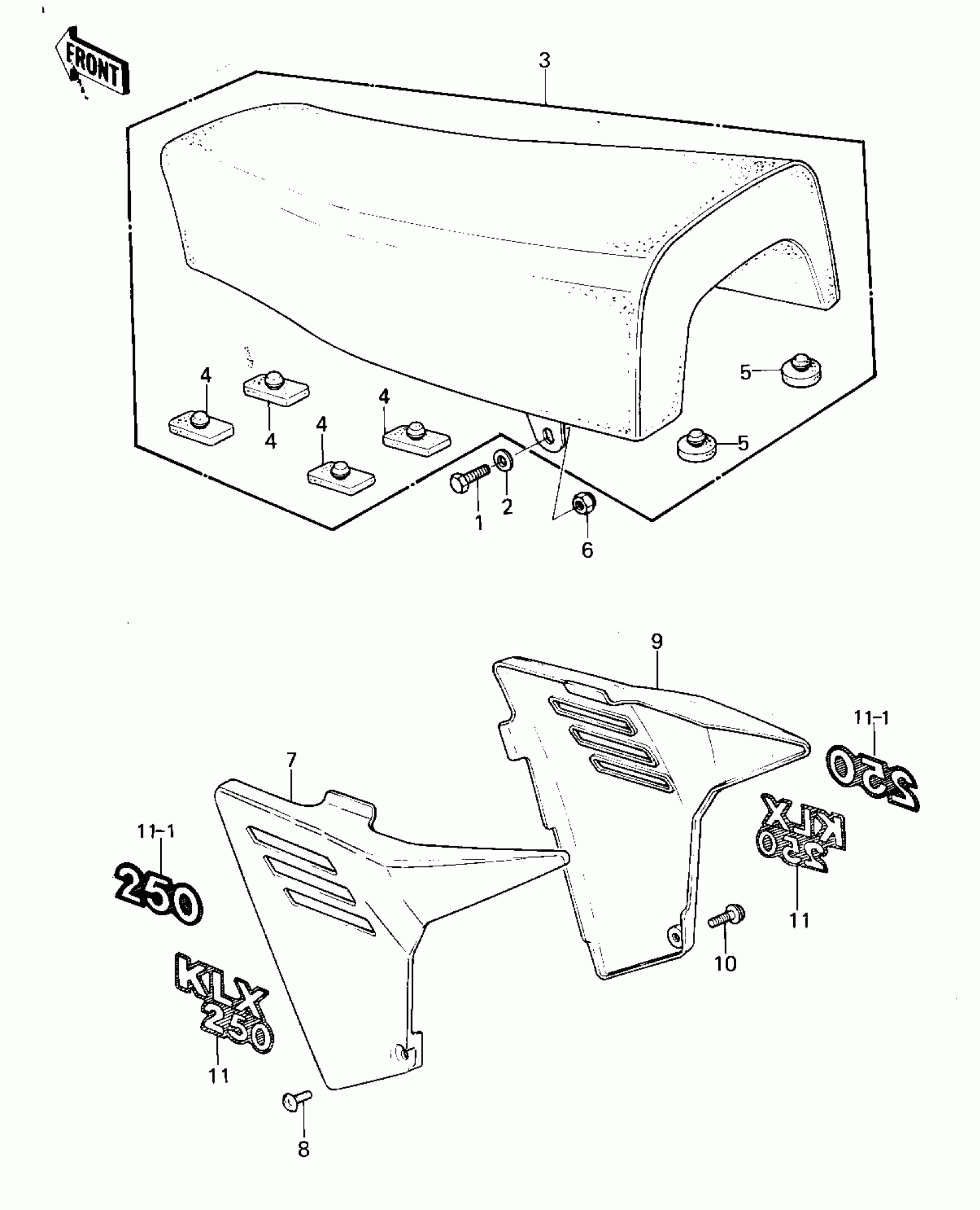

1980 Kawasaki KLX250 Seat/side Covers Diagram

#

Description
Price
Status
Order Qty

1

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock

2

WASHER PLAIN 8MM

411B0800

Out of stock

3

SEAT-ASSY,DUAL

53001-1062

$307.03

In stock

4

DAMPER

92075-1054

Out of stock

5

DAMPER,9X24X14

92075-281

Out of stock

6

NUT,LOCK,8MM

92015-1124

Out of stock

7

COVER,SIDE,L.H,GREEN

36001-1074-6W

Out of stock

8

SCREW,6X14,WHITE

92009-1287

Out of stock

9

COVER,SIDE,R.H,GREEN

36001-1075-6W

Out of stock

10

SCREW,6X14,WHITE

92009-1287

Out of stock

11

MARK,SIDE COVER

56018-1125

Out of stock

11-1

MARK,SIDE COVER,"250"

56018-1139

Out of stock
