1980 Kawasaki KLX250 Frame/frame Fittings Diagram

← All diagrams

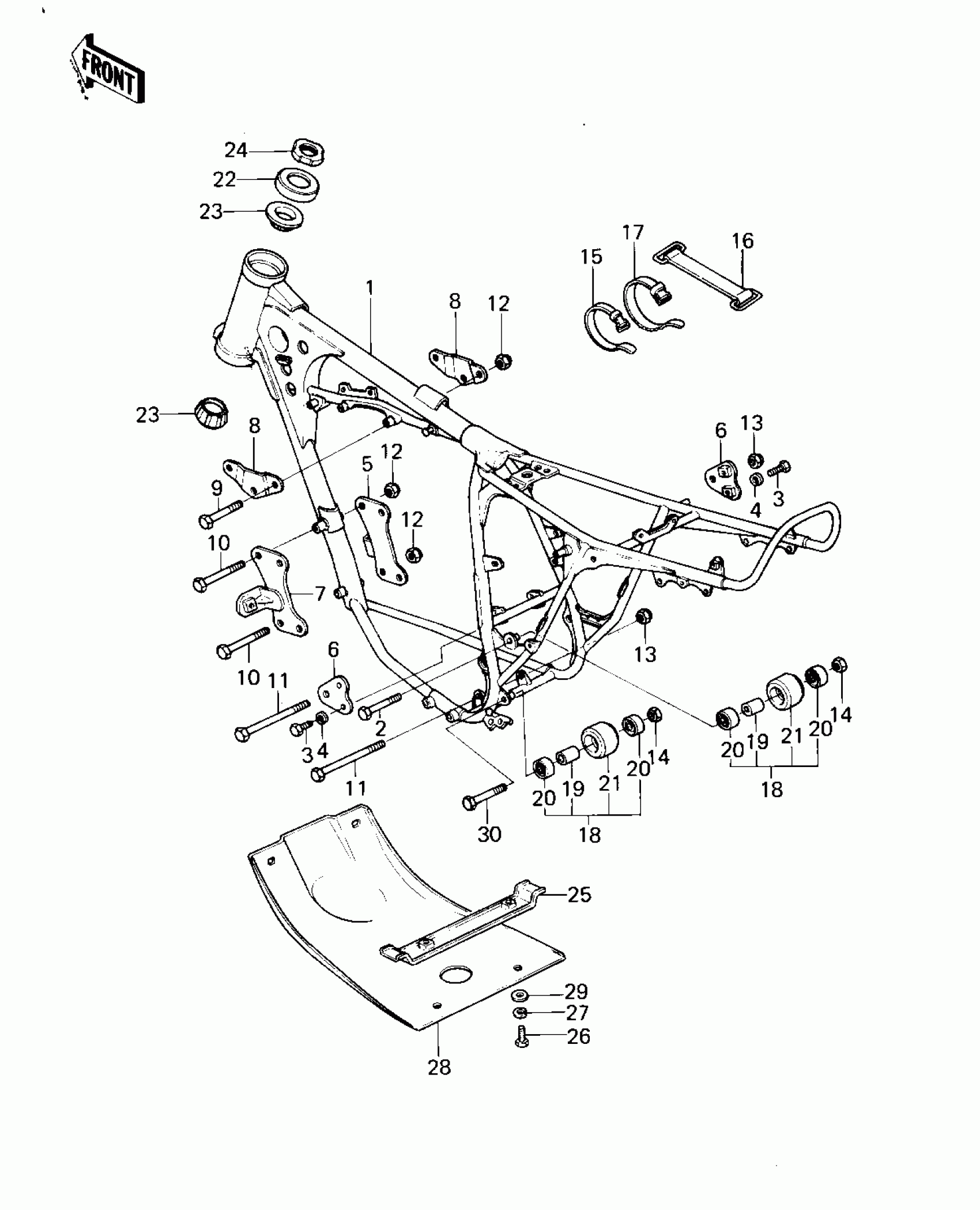

Find the part on the Frame/frame Fittings diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KLX250 Frame/frame Fittings Diagram

#

Description
Price
Status
Order Qty

1

FRAME

32002-1089

Out of stock

2

BOLT,8X55

92001-1386

Out of stock

3

BOLT-SMALL-UPSET,8X18

115G0818

Out of stock

4

WASHER SPRING 8MM

461F0800

Out of stock

5

BRACKET,ENGINE,FRONT

32029-1102

Out of stock

6

BRACKET,ENGINE,REAR

32029-1104

Out of stock

7

BRACKET,ENGINE,FRONT

32029-1105

Out of stock

8

BRACKET,ENGINE,HEAD

32029-1108

Out of stock

9

BOLT,HEX HEAD,8X60

110G0860

Out of stock

10

BOLT,8X63

92001-1397

Out of stock

11

BOLT,HEX HEAD,10X105

92001-1282

Out of stock

12

NUT,LOCK,8MM

92015-1124

Out of stock

13

NUT,LOCK,10MM

92019-021

Out of stock

14

NUT,LOCK,8MM

92015-1124

Out of stock

15

BAND,L=149

92072-031

Out of stock

16

BAND,L=90

92072-045

Out of stock

17

BAND,L=186

92072-056

Out of stock

18

ROLLER,ASSY

92122-1013

Out of stock

19

COLLAR

92027-1081

Out of stock

20

BEARING-BALL,608LLU/2A

92045-1009

Out of stock

21

ROLLER

92122-1014

Out of stock

22

CAP,STEERING STEM

46098-015

Out of stock

23

RACE,ROLLER,32005JR RS

92047-017

Out of stock

24

NUT,25MM,T=12

92015-1546

Out of stock

25

BRACKET,ENGINE GUARD

11034-5009

Out of stock

26

BOLT-UPSET 6X14

112B0614

Out of stock

27

WASHER SPRING 6MM

461F0600

Out of stock

28

GUARD ENGINE

55020-5001

Out of stock

29

WASHER,6.5X20X1.6

92022-125

Out of stock

30

BOLT,10X45

92001-1182

Out of stock
← Fenders/number Plate Seat/side Covers →
