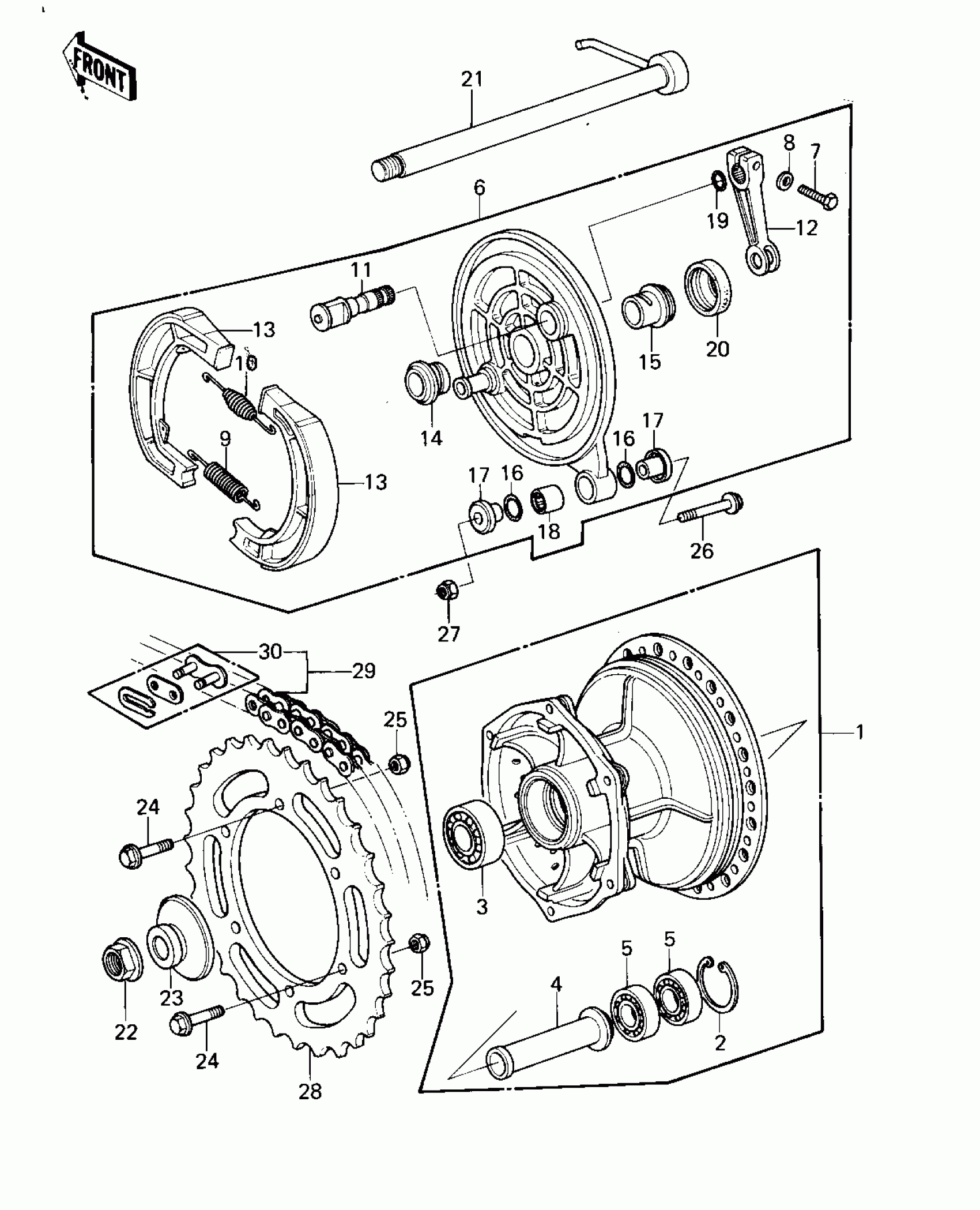

Kawasaki KLX250 REAR HUB/BRAKE/CHAIN Diagram
#
Description
Price
1
DRUM-ASSY,RR BRK
41034-1017
Unavailable
2
CIRCLIP-TYPE-C,35MM
481J3500
Unavailable
3
BEARING-BALL,#6004UUC3
601B6004UU
Unavailable
4
COLLAR,REAR BRAKE
92027-1207
Unavailable
5
BEARING-BALL,#6003UC3
601B6003U
Unavailable
6
PANEL-ASY,RR BRK
41035-1025
Unavailable
7
BOLT-UPSET
112G0622
Unavailable
8
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
9
SPRING,BRAKE SHOE
92081-1766
Unavailable
10
SPRING,BRAKE SHOE
92081-1550
Unavailable
11
CAM SHAFT,
41050-1007
Unavailable
12
LEVER,BROKE CAM REAR
41053-1008
Unavailable
13
SHOE,BRAKE
42019-010
Unavailable
14
SLEEVE,REAR BRAKE
42036-1009
Unavailable
15
SLEEVE,REAR PANEL,R.
42036-1035
Unavailable
16
O RING,11MM
670B2011
Unavailable
17
COLLAR,L=11.5
92027-1040
Unavailable
18
BEARING-NEEDLE,HK1216LL
92046-1009
Unavailable
1
O RING,12MM
670B2012
Unavailable
20
OIL SEAL
92093-1004
Unavailable
21
AXLE,REAR
41068-4002
Unavailable
22
NUT,16MM
92015-1015
Unavailable
23
COLLAR,REAR AXLE
92027-1206
Unavailable
24
BOLT,HEX HEAD,8X32
92001-1040
Unavailable
25
NUT,LOCK,8MM
92015-1124
Unavailable
26
BOLT,FLANGED,8X36
92001-1041
Unavailable
27
NUT,LOCK,8MM
92015-1124
Unavailable
28
REAR SPROCKET 46T
42041-1036
Unavailable
28
REAR SPROCKET,44T
42041-1037
Unavailable
28
REAR SPROCKET,47T
42041-1038
Unavailable
29
DR CHAIN 520X108L
92057-1032
Unavailable
30
CHAIN JOINT 520
92058-1002
Unavailable
