1980 Kawasaki KLX250 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

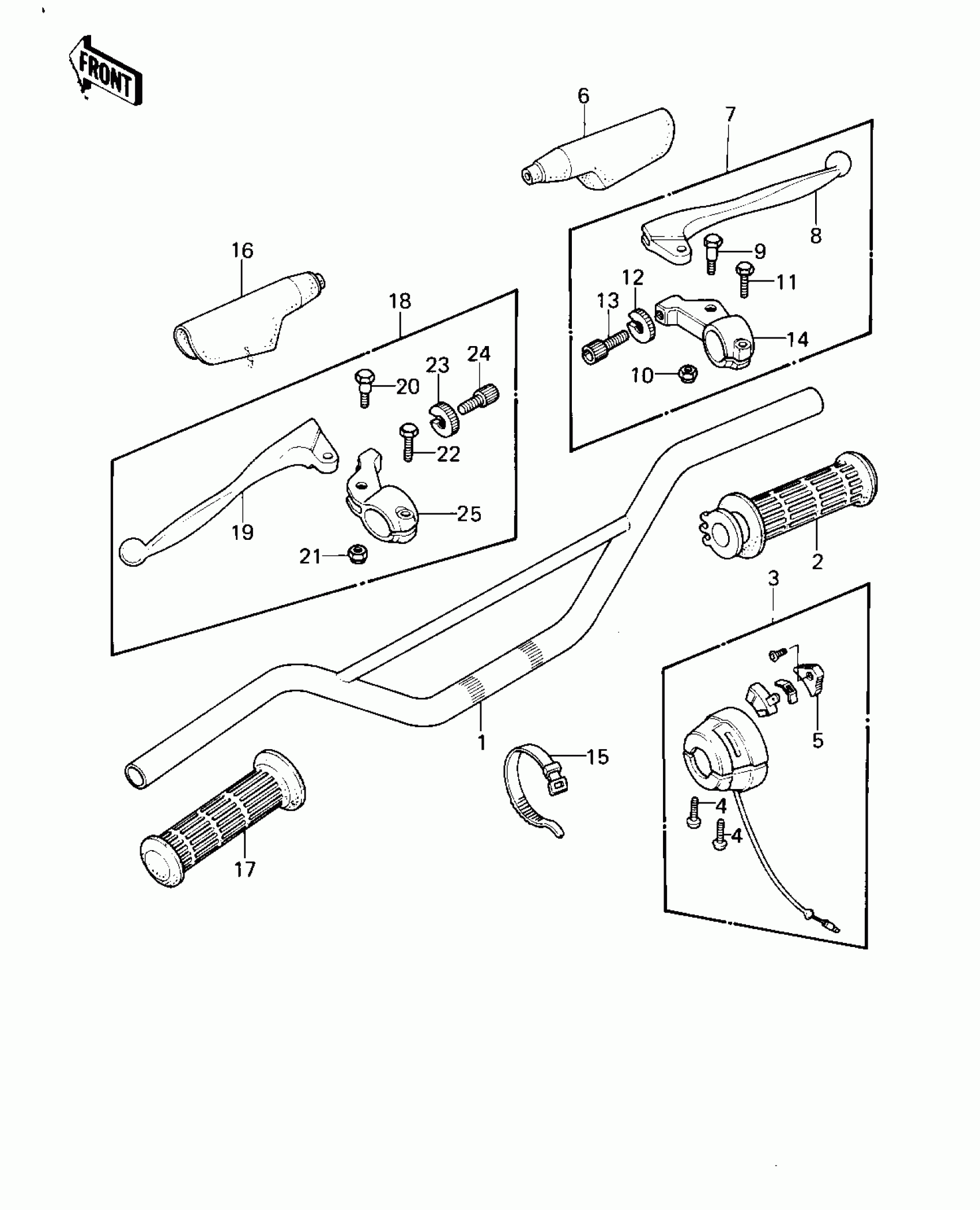

1980 Kawasaki KLX250 Handlebar Diagram

#

Description
Price
Status
Order Qty

1

HANDLEBAR

46003-1046

Out of stock

2

GRIP ASSY,THROTTLE

46019-1001

Out of stock

3

HOUSING ASSY,CONT,R.H

46091-1011

Out of stock

4

SCREW-PAN-CROS,5X25

220B0525

Out of stock

5

SWITCH,ENGINE STOP

92077-1006

Out of stock

6

DUST COVER

46071-003

Out of stock

7

LEVER ASSY,FRONT BRA

46076-1003

Out of stock

8

FRONT BRAKE LEVER

46058-018

$58.85

In stock

9

BOLT,HEX HEAD,6MM

92001-140

Out of stock

10

NUT,LOCK,6MM

92019-008

Out of stock

11

BOLT-UPSET

112N0620

Out of stock

12

NUT,CABLE ADJUST

46056-006

$8.71

In stock

13

$14.99

In stock

14

HOLDER,F.BRAKE LEVER

46060-010-21

$69.80

In stock

15

BAND,L=123

92072-030

Out of stock

16

DUST COVER

46071-003

Out of stock

17

RUBBER,L.H.GRIP

46075-1001

Out of stock

18

LEVER ASSY,CLUTCH

46076-1004

Out of stock

19

LEVER, CLUTCH

46092-021

Out of stock

20

BOLT,HEX HEAD,6MM

92001-140

Out of stock

21

NUT,LOCK,6MM

92019-008

Out of stock

22

BOLT-UPSET

112N0620

Out of stock

23

NUT,CABLE ADJUST

46056-006

$8.71

In stock

24

$14.99

In stock

25

HOLDER,CLUTCH LEVER

46094-014-21

Out of stock
