1980 Kawasaki KLX250 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1980 Kawasaki KLX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

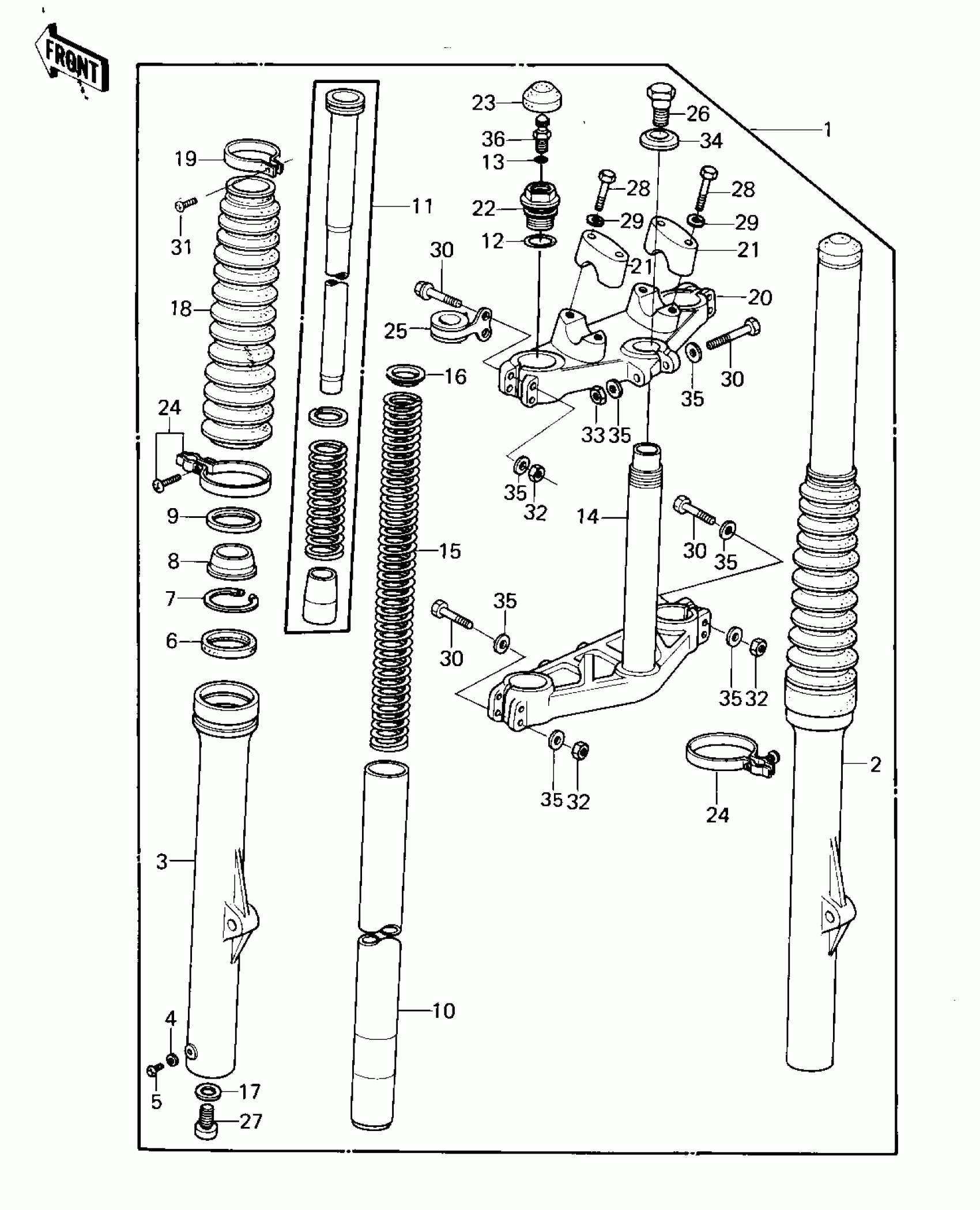

1980 Kawasaki KLX250 Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-1145

Out of stock

2

TUBE,RH,FORK OUTER

44006-1030

Out of stock

3

TUBE,LH,FORK OUTER

44005-1030

Out of stock

4

GASKET,FORK DRAIN PLUG

44045-002

Out of stock

5

SCREW PAN HEAD 4X8

220B0408

Out of stock

6

OIL,SEAL,FORK OUTER

92049-1009

Out of stock

7

RING,SNAP,FORK OUTER

92033-1005

Out of stock

8

DUST SHIELD,FORK

92093-1007

Out of stock

9

CASE,DUST SHIELD

32099-1002

Out of stock

10

TUBE,FORK INNER

44013-1026

Out of stock

1

CYLINDER-FORK

44022-1030

Out of stock

12

RING-O,FORK TOP CAP

92055-1051

Out of stock

13

"0" RING,AIR VALVE

92055-1018

Out of stock

14

STEM,STEERING

44037-1021

Out of stock

15

SPRING,FORK

44026-1038

Out of stock

16

GUIDE-FORK SPRING

44028-1004

Out of stock

17

GASKET

44045-057

Out of stock

18

BOOTS,FORK

49006-1009

Out of stock

19

BAND,BOOT

92072-1008

Out of stock

20

HEAD,STEERING STEM

44039-1018

Out of stock

21

HOLDER,HANDLE BAR

46012-1003

$12.05

In stock

22

CAP,FORK TOP

44029-1011

Out of stock

23

CAP,RUBBER,FORK TOP

44029-1009

Out of stock

24

BAND,BOOTS L.H.

92072-1011

Out of stock

25

BAND,CABLE

92072-1040

Out of stock

26

BOLT,FORK TOP

44041-065

Out of stock

27

BOLT,SOCKET,FORK CYLINDER

44041-040

Out of stock

28

BOLT

92001-1578

Out of stock

29

WASHER SPRING 8MM

461F0800

Out of stock

30

SCREW-PAN-CROS

220B0420

Out of stock

31

SCREW-PAN-CROS

220B0420

Out of stock

32

NUT-HEX,8MM

311G0800

Out of stock

33

NUT,LOCK,8MM

92015-1124

Out of stock

34

WASHER

44043-052

Out of stock

35

WASHER PLAIN 8MM

410B0800

Out of stock

36

VALVE ASSY,AIR

16126-1003

Out of stock
