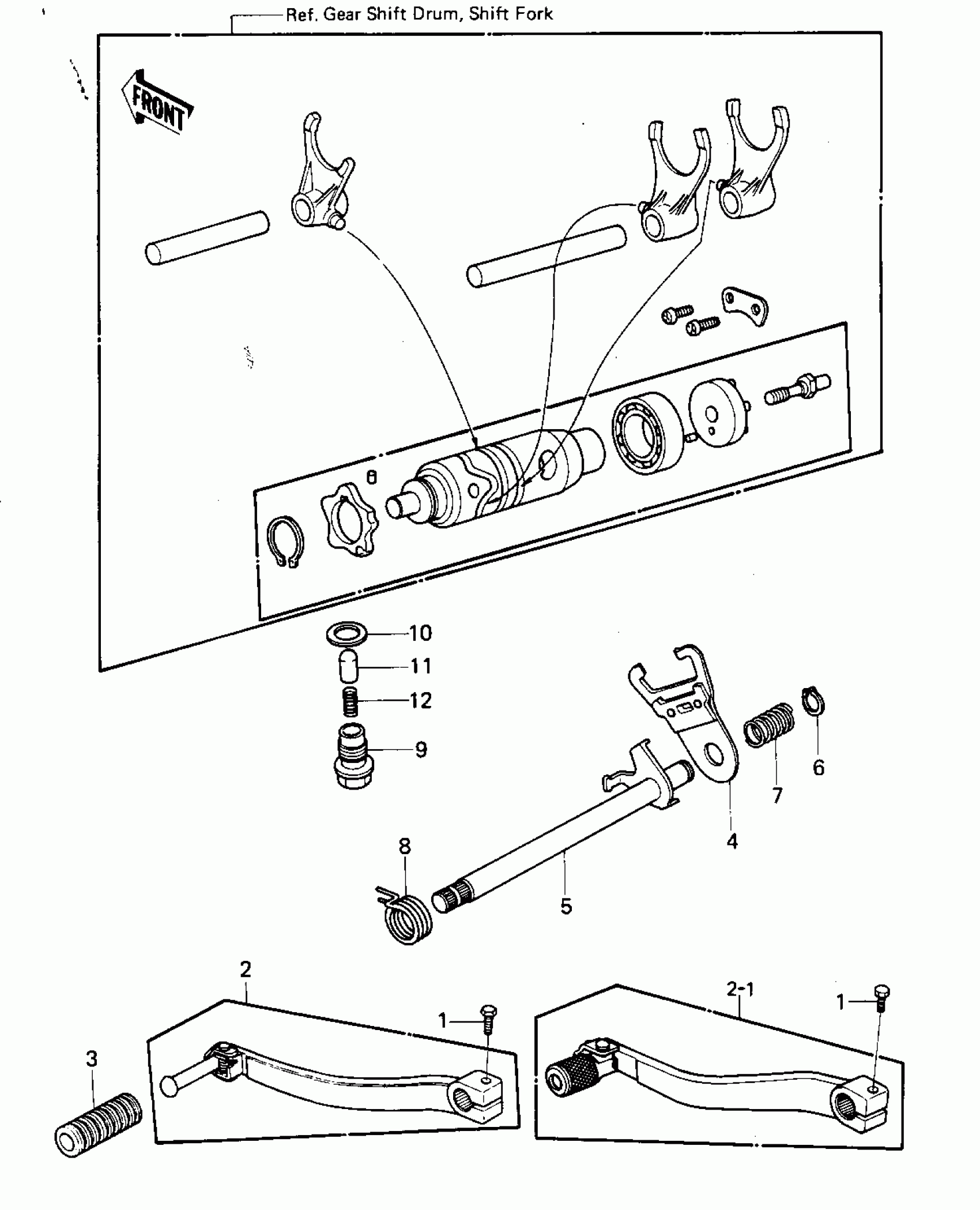

Kawasaki KLX250 GEAR CHANGE MECHANISM Diagram

#

Description

Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

LEVER ASSY,SHIFT PEDL

13242-1026

Unavailable

2-1

LEVER ASSY,SHIFT PEDL

13242-1026

Unavailable

3

DAMPER,CHANGE PEDAL

92160-1108

Unavailable

4

LEVER ASSY,GEAR SHIFT

13161-044

Unavailable

5

LEVER ASSY,GEAR SHIFT

13161-1013

Unavailable

6

CIRCLIP-TYPE-C,13MM

480J1300

Unavailable

7

SPRING,COIL

92081-149

Unavailable

8

SPRING,CHG PEDL RTRN

92083-028

Unavailable

9

BOLT,NEUTRAL POSITION

92001-182

Unavailable

10

WASHER,16.5X23X2

92022-324

Unavailable

11

PIN,NEUTRAL POSITIONG

92043-131

Unavailable

12

SPRING

92081-112

Unavailable
