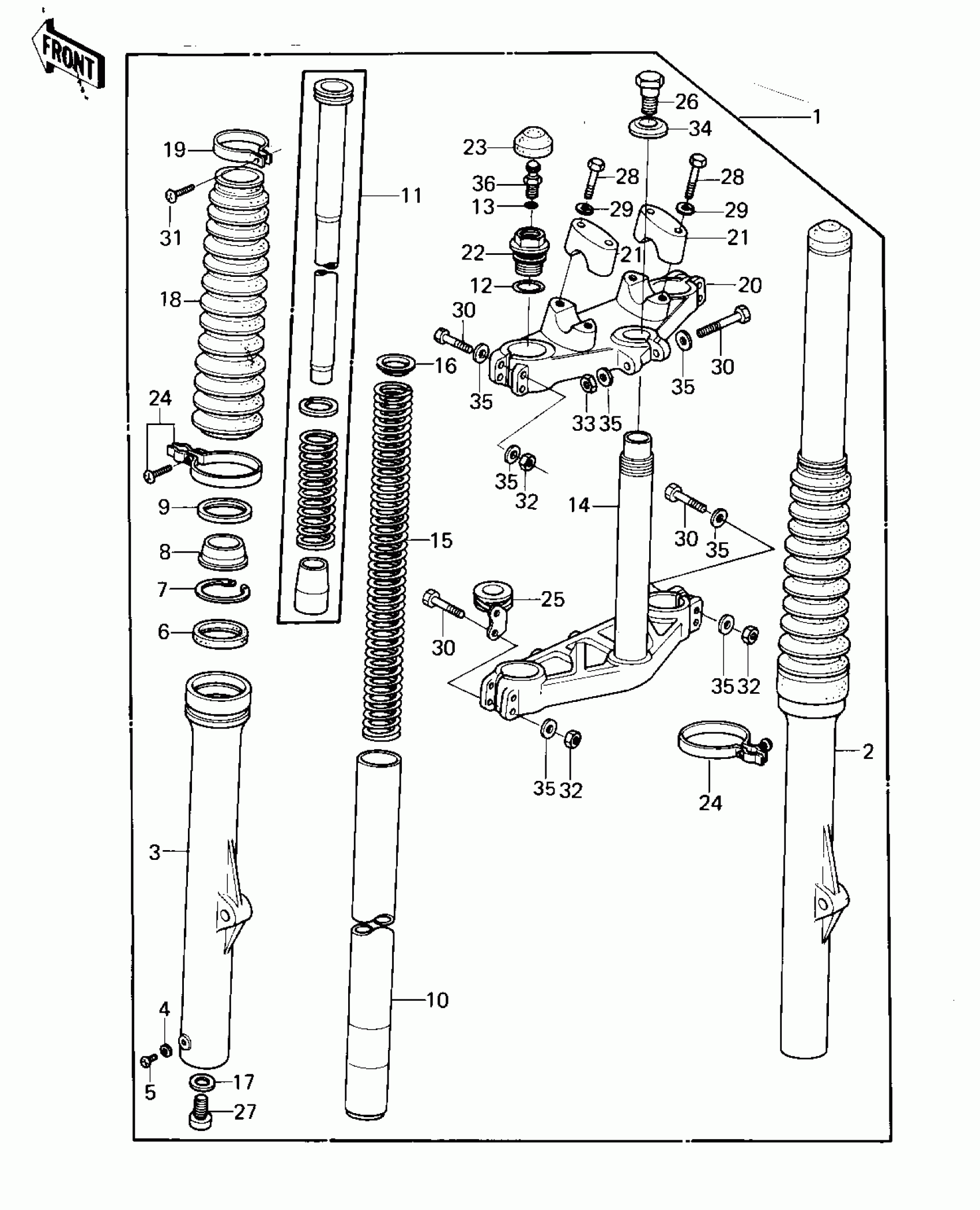

Kawasaki KLX250 FRONT FORK (KLX250-A1) Diagram
#
1
FORK-FRONT
44001-1088
Unavailable
2
TUBE,RH,FORK OUTER
44006-1030
Unavailable
3
TUBE,LH,FORK OUTER
44005-1030
Unavailable
4
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
5
SCREW PAN HEAD 4X8
220B0408
Unavailable
6
OIL,SEAL,FORK OUTER
92049-1009
Unavailable
7
RING,SNAP,FORK OUTER
92033-1005
Unavailable
8
DUST SHIELD,FORK
92093-1007
Unavailable
9
CASE,DUST SHIELD
32099-1002
Unavailable
10
TUBE,FORK INNER
44013-1026
Unavailable
11
CYLINDER-FORK
44022-1030
Unavailable
12
RING-O,FORK TOP CAP
92055-1051
Unavailable
13
"0" RING,AIR VALVE
92055-1018
Unavailable
14
STEM,STEERING
44037-1021
Unavailable
15
SPRING,FORK
44026-1038
Unavailable
16
GUIDE-FORK SPRING
44028-1004
Unavailable
17
GASKET
44045-057
Unavailable
18
BOOTS,FORK
49006-1009
Unavailable
19
BAND,BOOT
92072-1008
Unavailable
20
HEAD,STEERING STEM
44039-1018
Unavailable
21
HOLDER,HANDLE BAR
46012-1003
Unavailable
22
CAP,FORK TOP
44029-1011
Unavailable
23
CAP,RUBBER,FORK TOP
44029-1009
Unavailable
24
BAND,BOOTS L.H.
92072-1011
Unavailable
25
CLAMP,CABLE
92072-1027
Unavailable
26
BOLT,FORK TOP
44041-065
Unavailable
27
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
28
BOLT
92001-1578
Unavailable
29
WASHER SPRING 8MM
461F0800
Unavailable
30
BOLT FLANGED 8X55
92001-1398
Unavailable
31
SCREW-PAN-CROS
220B0420
Unavailable
32
NUT-HEX,8MM
311G0800
Unavailable
33
NUT,LOCK,8MM
92015-1124
Unavailable
34
WASHER
44043-052
Unavailable
35
WASHER PLAIN 8MM
410B0800
Unavailable
36
VALVE ASSY,AIR
16126-1003
Unavailable
