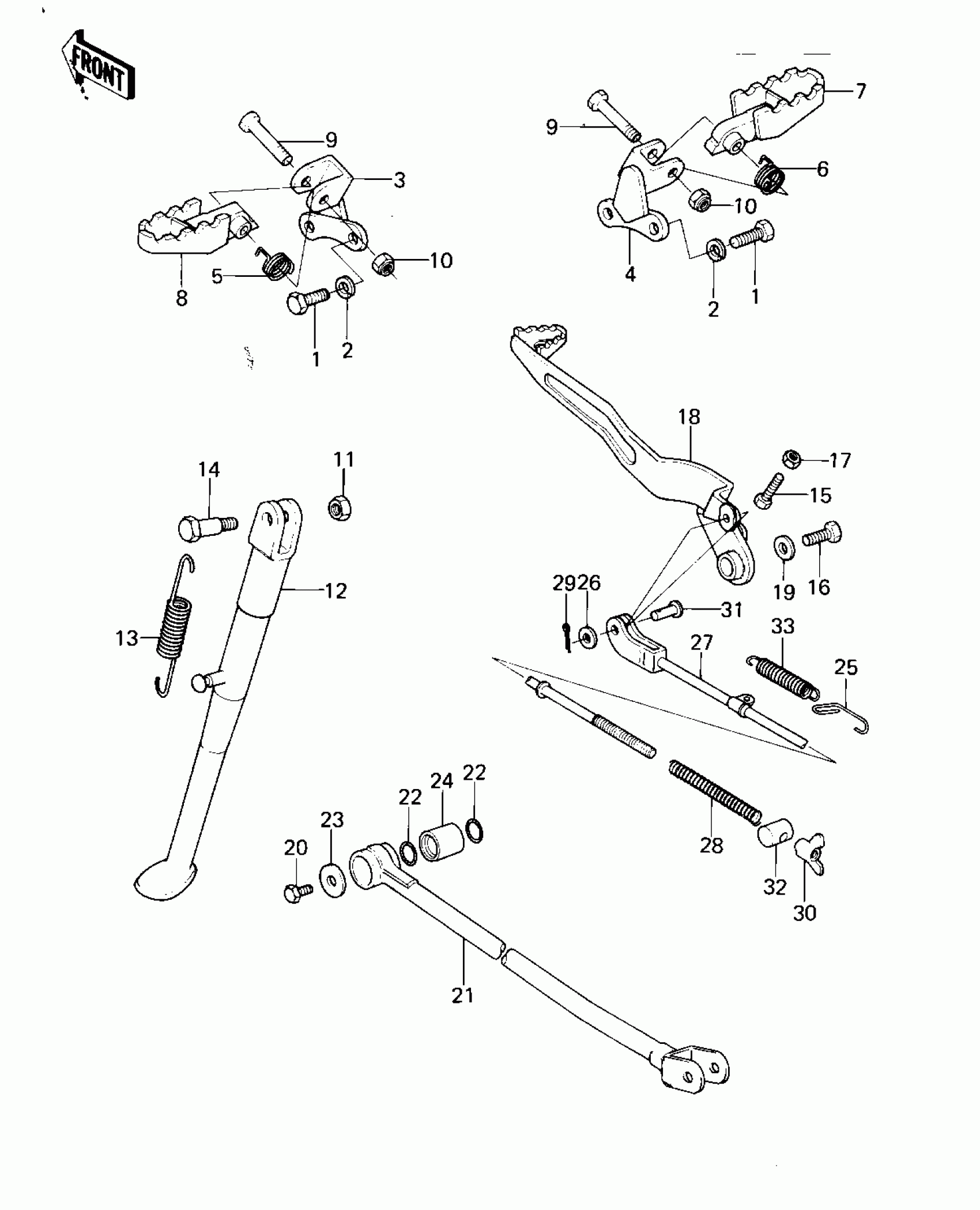

Kawasaki KLX250 FOOTRESTS/STAND/BRAKE PEDAL Diagram
#
Description
Price
1
BOLT-UPSET,10X20
112B1020
Unavailable
2
WASHER SPRING 10MM
461F1000
Unavailable
3
HOLDER,FOOTREST STEP
34003-1045
Unavailable
4
HOLDER,FOOTREST STEP
34003-1046
Unavailable
5
SPRING,L.H,FOOTREST
92081-1254
Unavailable
6
SPRING,R.H,FOOTREST
92081-1255
Unavailable
7
STEP
34028-1033
Unavailable
8
STEP
34028-1034
Unavailable
9
BOLT,HEX HEAD 10X40
92001-1028
Unavailable
10
NUT,LOCK,10MM
92019-021
Unavailable
11
NUT-HEX-FINE,10MM
315B1000
Unavailable
12
STAND-SIDE
34024-4001
Unavailable
13
SPRING,STAND
34025-008
Unavailable
14
BOLT,SIDE STAND
92003-157
Unavailable
15
BOLT-UPSET
112G0625
Unavailable
16
BOLT-SMALL-UPSET,8X14
115B0814
Unavailable
17
NUT 6MM
312B0600
Unavailable
18
LEVER,BRAKE PEDAL
43001-1036
Unavailable
19
WASHER,8X26X2.3
92022-1564
Unavailable
20
BOLT,6X10
112G0610
Unavailable
21
ROD,TORQUE
43007-1013
Unavailable
22
O RING,15MM
670B2015
Unavailable
23
WASHER,7X24X1.6
92022-228
Unavailable
24
BUSHING,BRAKE ROD
92028-1023
Unavailable
25
HOOK,BRAKE SPRING
27012-1013
Unavailable
26
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
27
ROD,BRAKE
43011-1015
Unavailable
28
SPRING,BRAKE ROD
43012-001
Unavailable
29
PIN COTTER 2.0X15
550D2015
Unavailable
30
NUT,WING,6MM
92015-4004
Unavailable
31
PIN,6X17
92043-064
Unavailable
32
PIN,BRAKE
92043-1024
Unavailable
33
SPRING,BRAKE PEDAL
92081-1025
Unavailable
