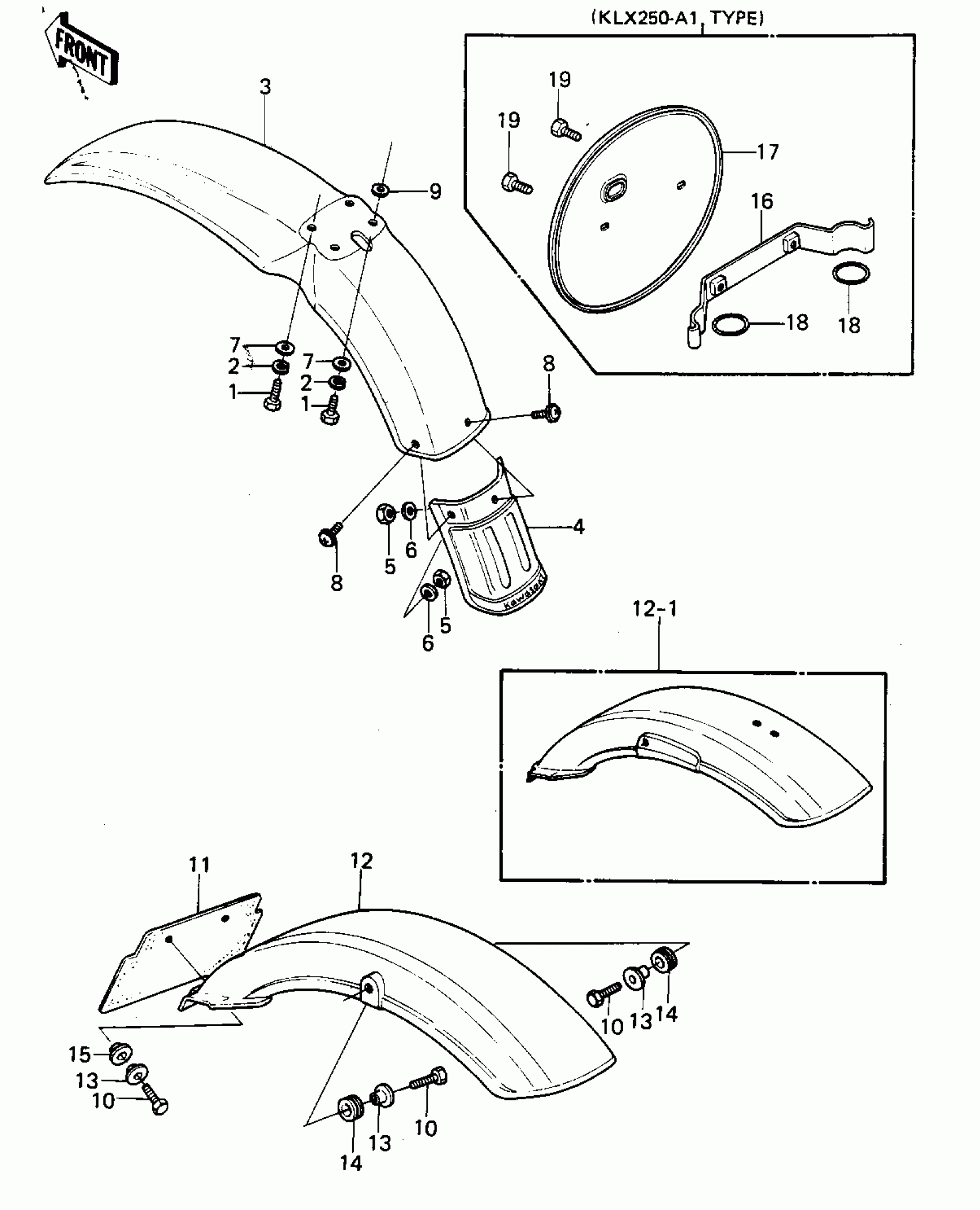

Kawasaki KLX250 FENDERS/NUMBER PLATE Diagram

#

Description

Price

1

BOLT-UPSET

112G0618

Unavailable

2

WASHER SPRING 6MM

461F0600

Unavailable

3

FENDER-FR,L.GREEN

35004-1015-6W

Unavailable

4

FLAP,FRONT FENDER

35019-1002

Unavailable

5

NUT,LOCK,6MM

92019-008

Unavailable

6

WASHER PLAIN

92022-024

Unavailable

7

WASHER,6.5X20X1.6

92022-125

Unavailable

8

SCREW,6X14,WHITE

92009-1287

Unavailable

9

WASHER,PLAIN

92022-283

Unavailable

10

BOLT-UPSET,6X20

112G0620

Unavailable

11

FLAP,REAR FENDER

35019-1012

Unavailable

12

FENDER-RR,L.GREEN

35022-1057-6W

Unavailable

12-1

FENDER-RR,L.GREEN

35022-1057-6W

Unavailable

13

COLLAR

92027-1045

Unavailable

14

DAMPER

92075-1028

Unavailable

15

DAMPER RUBBER

92075-103

Unavailable

16

BRACKET,NUMBER PLATE

11034-1089

Unavailable

17

PLATE,NUMBER,L.GREEN

58029-1004-6W

Unavailable

18

O RING,55MM

671B2555

Unavailable

19

SCREW,6X14,WHITE

92009-1287

Unavailable
