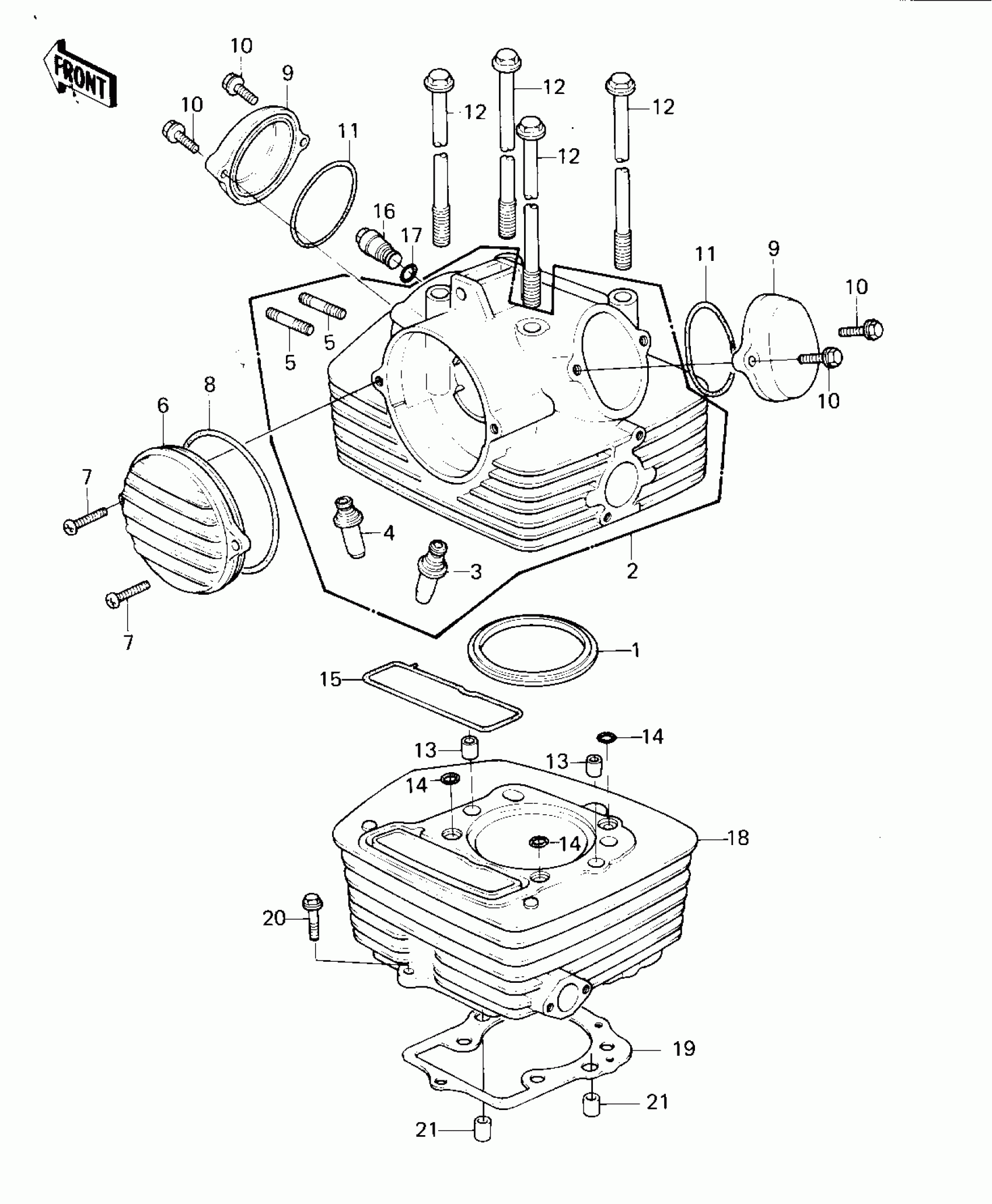

Kawasaki KLX250 CYLINDER HEAD/CYLINDER Diagram

#

Description

Price

1

GASKET,CYLINDER HEAD

11004-1002

Unavailable

2

HEAD ASSY,CYL,F.BLACK

11002-5015

Unavailable

3

GUIDE,INLET VALVE

12013-003

Unavailable

4

GUIDE,EXHAUST VALVE

49002-1010

Unavailable

5

STUD,6X27

92004-066

Unavailable

6

COVER,CAM,FLAT BLACK

14025-1103

Unavailable

7

SCREW PAN HEAD 6X25

220B0625

Unavailable

8

"O" RING,99M/M

92055-107

Unavailable

9

CAP,ROCKER,FLAT BLACK

11012-1078

Unavailable

10

BOLT,FLANGED,6X25

130G0625

Unavailable

11

RING-O,53.5X2.6

92055-112

Unavailable

12

BOLT,8X233

92003-220

Unavailable

13

PIN,DOWEL,10X14

92043-1037

Unavailable

14

RING-O,10MM

92055-1149

Unavailable

15

"0" RING

92055-105

Unavailable

16

PLUG,TACHOMETER GEAR

92066-060

Unavailable

17

RING-O,10MM

92055-1149

Unavailable

18

CYLINDER ASSY,F.BLACK

11006-1002

Unavailable

19

GASKET,CYLINDER BASE

11009-043

Unavailable

20

BOLT,FLANGED,6X28

92003-202

Unavailable

21

PIN,DOWEL,10X14

92043-1037

Unavailable
