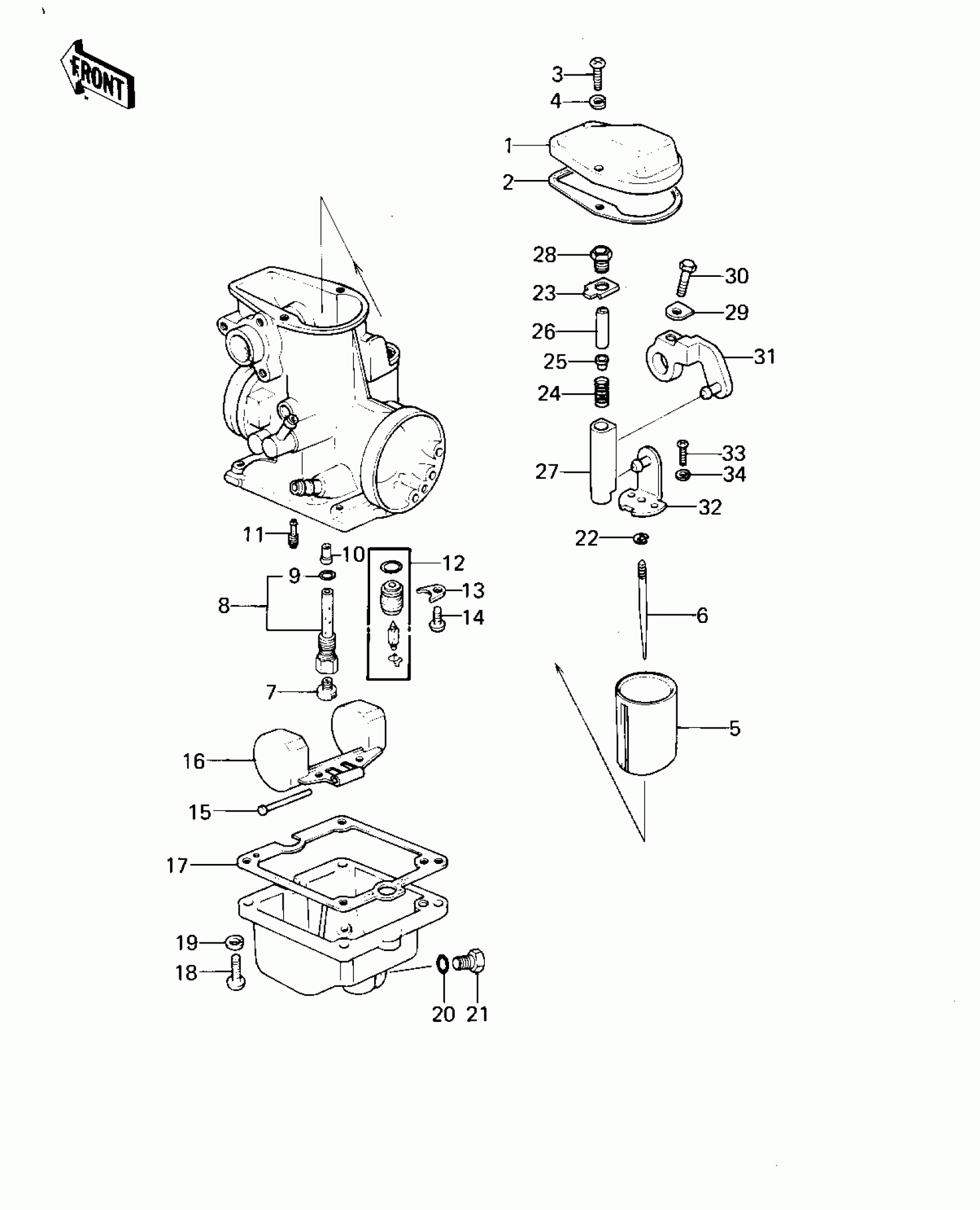

Kawasaki KLX250 CARBURETOR PARTS Diagram
#
1
TOP,MIXING CHAMBER
16005-1007
Unavailable
2
GASKET,CHAMBER TOP
16019-018
Unavailable
3
SCREW-PAN-CROS
220B0414
Unavailable
4
WASHER SPRING 4MM
461F0400
Unavailable
5
VALVE,THROTLE,C.A.2.5
16025-1035
Unavailable
5
VALVE,THROTTLE,CA=2.5
16025-1042
Unavailable
6
JET NEEDLE,#6H2-2
16009-1042
Unavailable
7
MAIN JET,#A137.5
92063-1087
Unavailable
7
JET-MAIN NO 132.5R
92063-103
Unavailable
7
MAIN JET NO 135R
92063-104
Unavailable
7
MAIN JET,#140A
92063-116
Unavailable
7
JET-MAIN NO 142.5R
92063-117
Unavailable
8
HOLDER,NEEDLE JET
13091-1061
Unavailable
9
"0" RING,MAIN JET COV
16038-016
Unavailable
10
NEEDLE JET,#P-2
16017-1042
Unavailable
11
JET-PILOT,#30
92064-022
Unavailable
11
JET-PILOT,#25
92064-032
Unavailable
12
FLOTE VALVE ASSY,#2.8
16030-1008
Unavailable
13
PLATE, LOCK
13169-1190
Unavailable
14
SCREW PAN HEAD 4X6
220B0406
Unavailable
15
PIN,FLOAT
16032-008
Unavailable
16
FLOAT
16031-1008
Unavailable
17
GASKET,FLOAT CHAMBER
11009-1156
Unavailable
18
UNAVAILABLE IN PRICE BOOK
214B0516A
Unavailable
19
WASHER SPRING 5MM
461F0500
Unavailable
20
"0" RING,MAIN JET COV
16038-016
Unavailable
21
BOLT,HEX HEAD,DRAIN
92066-1045
Unavailable
22
CLAMP,E-TYPE
16008-010
Unavailable
23
WASHER,LOCK
16054-003
Unavailable
24
SPRING
16040-026
Unavailable
25
SEAT-SPRING
16057-002
Unavailable
26
HOLDER,THROTTLE SHAFT
16065-017
Unavailable
27
SHAFT,THROTTLE VALVE
16052-003
Unavailable
28
GUIDE SCREW
92001-1289
Unavailable
29
WASHER,LOCK,B
16054-004
Unavailable
30
BOLT,B
16067-004
Unavailable
31
LEVER,A
16068-007
Unavailable
32
BRACKET,THROTTLE VALV
11034-1584
Unavailable
33
SCREW-PAN-CROS
220B0310
Unavailable
34
WASHER SPRING 3MM
461F0300
Unavailable
