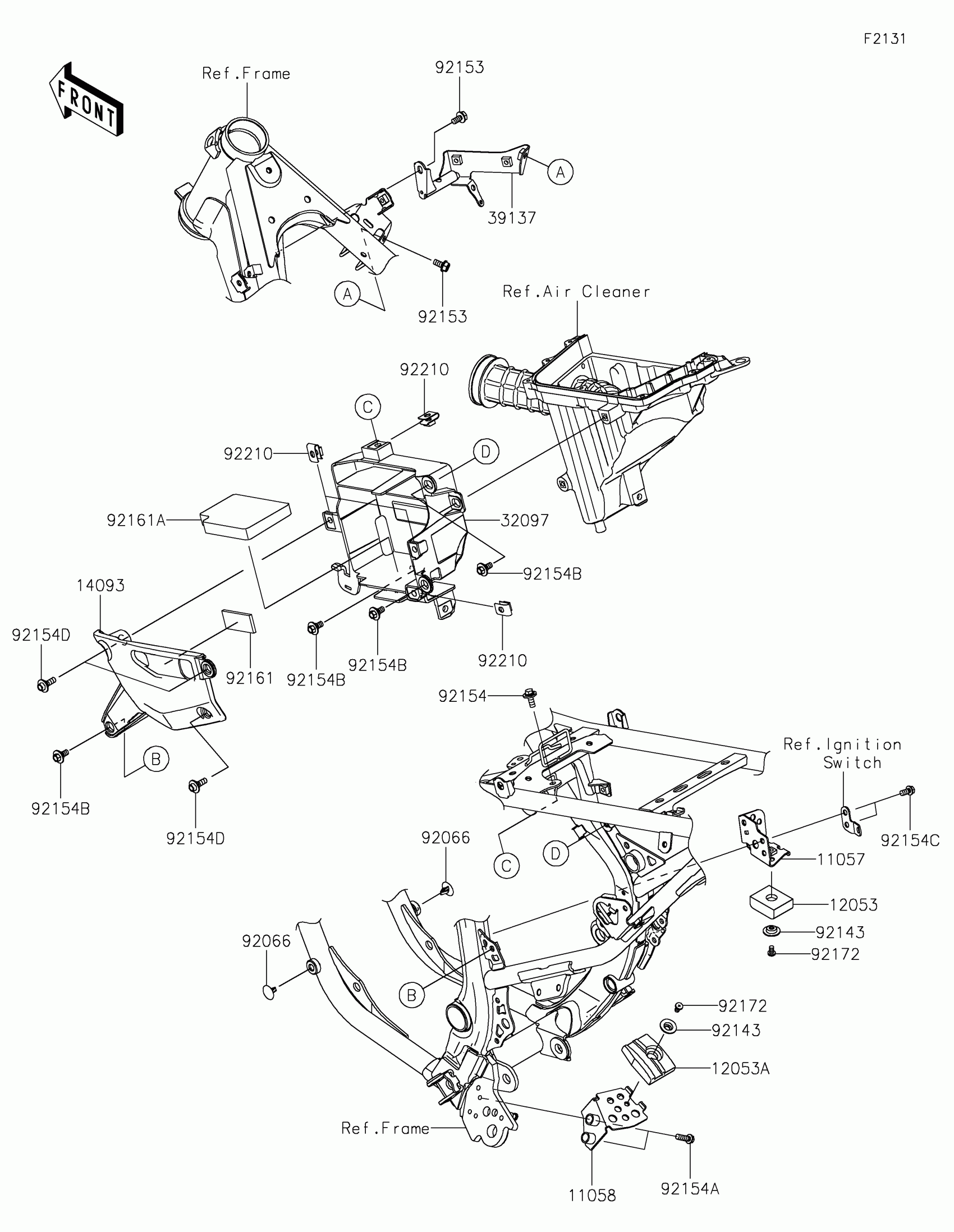

Kawasaki KLX230SM ABS Frame Fittings Diagram

Description

Price

11057

BRACKET,UPP

11057-2067

$14.32

11058

BRACKET,LWR

11058-0854

$17.37

12053

GUIDE-CHAIN,UPP

12053-0270

$2.78

12053A

GUIDE-CHAIN,LWR

12053-0271

$3.02

14093

COVER,BATTERY CASE

14093-1562

$33.90

32097

CASE-BATTERY

32097-0571

$30.74

39137

STAY-COMP,REGULATOR,F.S.BLACK

39137-0753-18R

$33.08

92066

PLUG

92066-0934

$1.89

92143

COLLAR

92143-1676

$6.22

92153

BOLT,FLANGED,6X12

92153-1283

$2.41

92154

BOLT,FLANGED-SMALL,6X16

92154-1183

$1.48

92154A

BOLT,FLANGED,6X20

92154-2757

$2.95

92154B

BOLT,FLANGED,6X13

92154-4411

$3.74

92154C

BOLT,FLANGED,6X12

92154-7279

$1.20

92154D

BOLT,FLANGED,6X14

92154-7286

$2.65

92161

DAMPER,49X23X4

92161-2536

$3.91

92161A

DAMPER,BATTERY CASE

92161-2581

$25.29

92172

SCREW,5X8

92172-1540

$2.03

92210

NUT,6MM

92210-0218

$2.55
