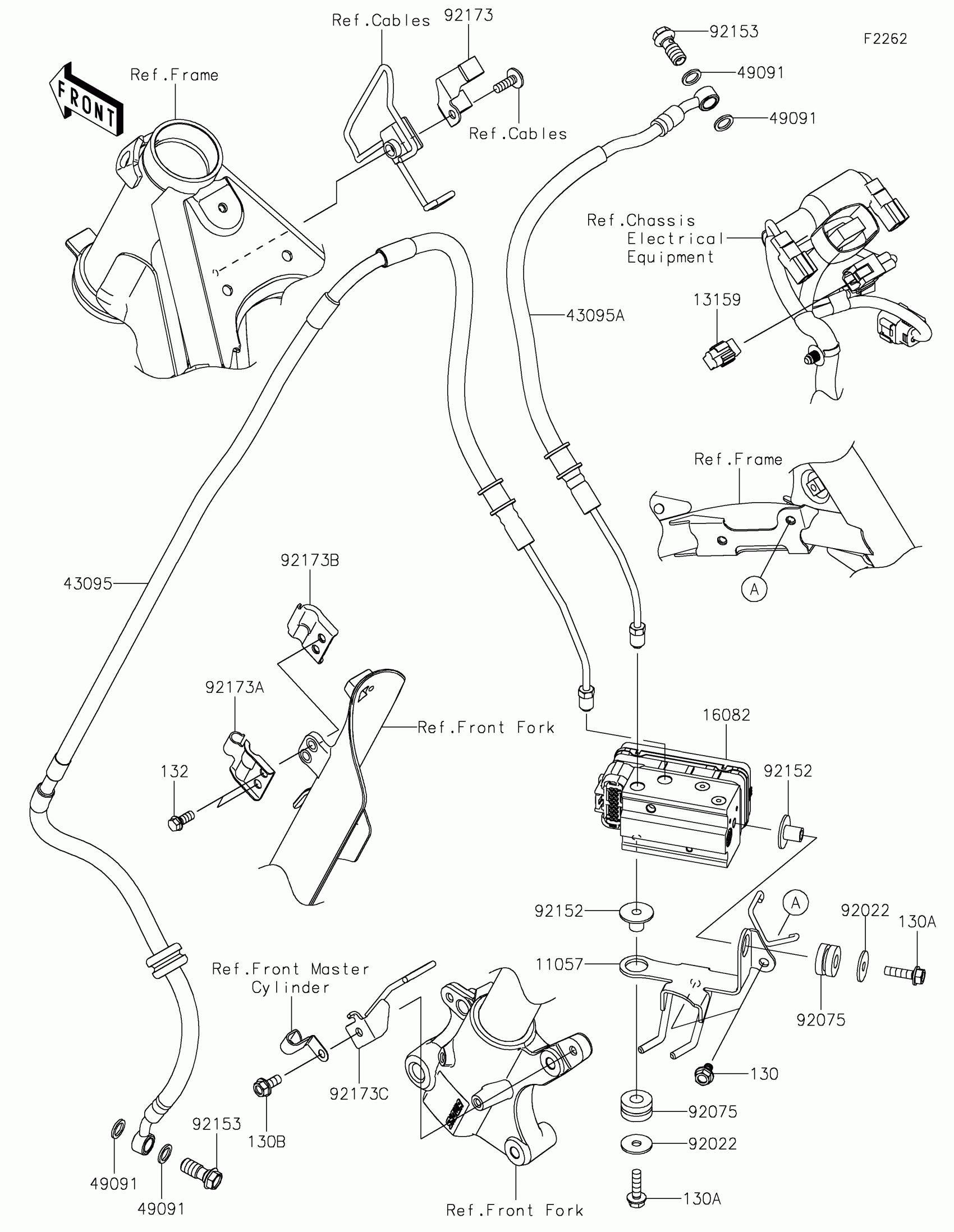

Find the part on the Brake Piping diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLX230SM ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-2358

1
Out of stock

13159

CONNECTOR

13159-0037

1
Out of stock

16082

PUMP-ASSY-OIL,ABS,BOSCH,10.3MB

16082-0920

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1999

1
Out of stock

43095A

HOSE-BRAKE,ABS UNIT-FR M/C

43095-2073

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0029

1
Out of stock

92173

CLAMP

92173-2045

1
Out of stock

92173A

CLAMP

92173-2499

1
Out of stock

92173B

CLAMP

92173-2500

1
Out of stock

92173C

CLAMP

92173-2880

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

130B

BOLT-FLANGED,6X14

130BC0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X14

132BA0614

1
Out of stock
