2025 Kawasaki KLX230SM ABS Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2025 Kawasaki KLX230SM ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

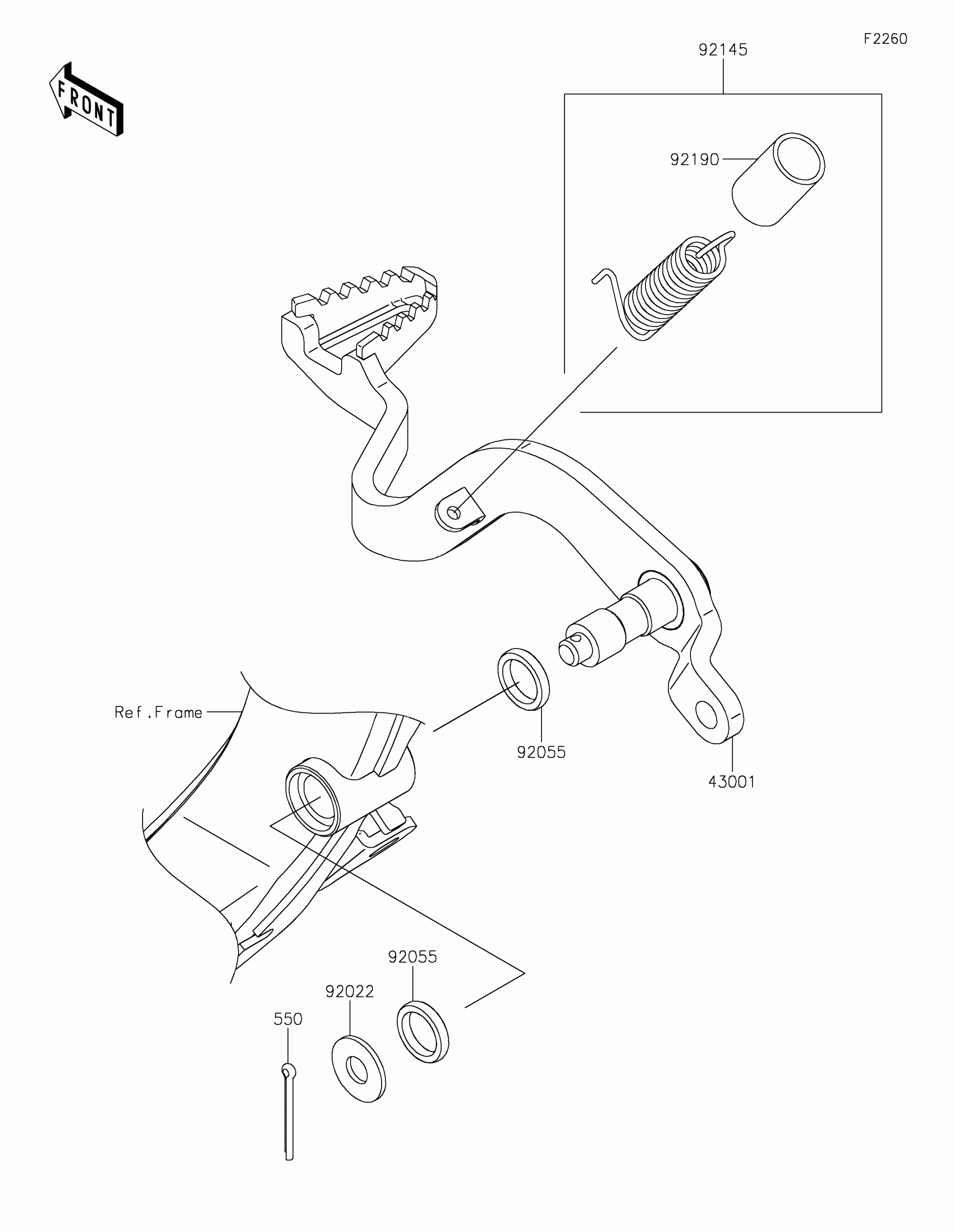

2025 Kawasaki KLX230SM ABS Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE

43001-0792

1
Out of stock

92022

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

92055

RING-O,13.1X2.7

92055-0768

1
Out of stock

92145

SPRING,BRAKE PEDAL RETURN

92145-1867

1
Out of stock

92190

TUBE,13X16X25

92190-1488

1
Out of stock

550

PIN-COTTER,2.5X25

550AA2525

1
Out of stock
