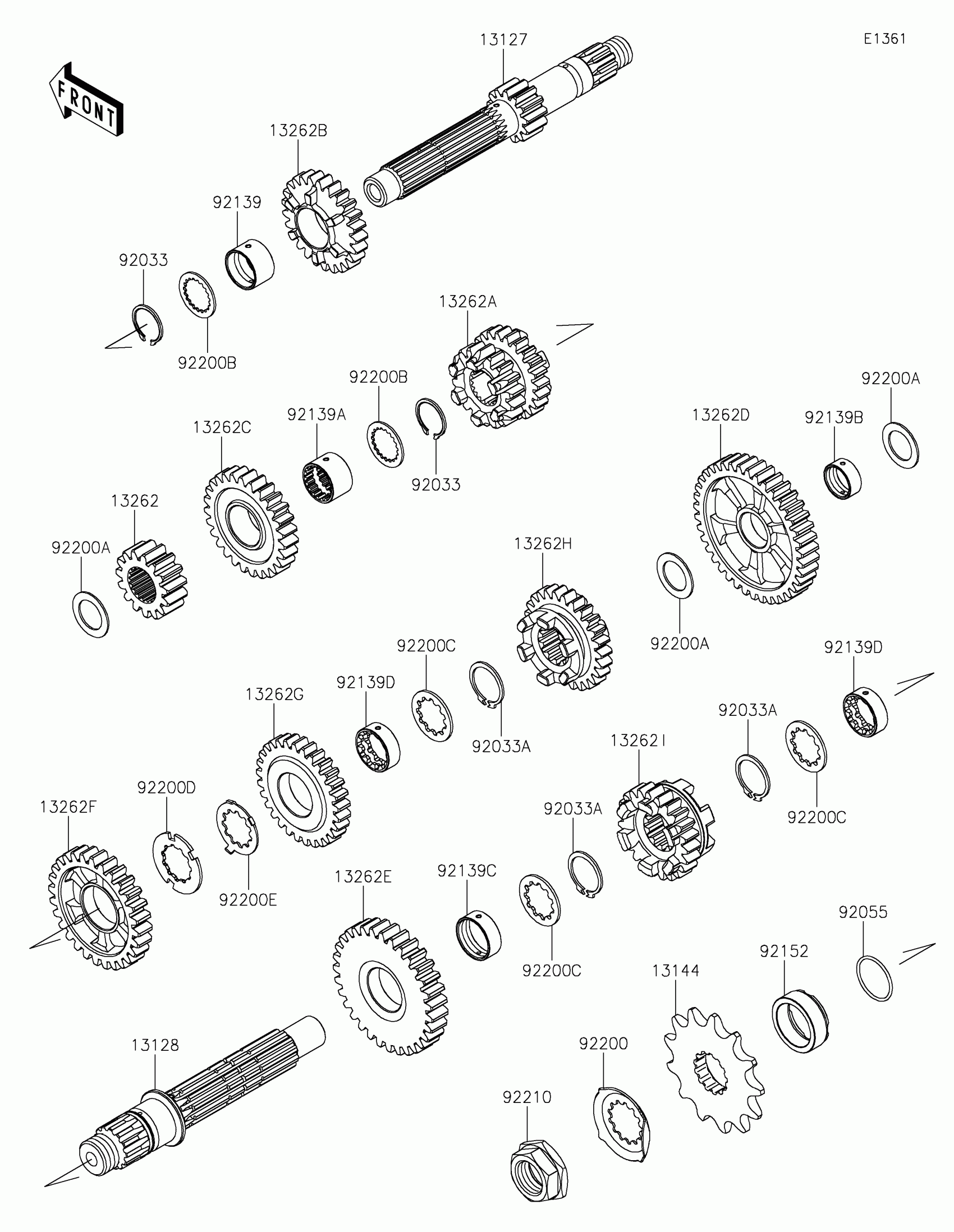

Kawasaki KLX230R S Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-0698

$236.71

13128

SHAFT-TRANSMISSION OUTPUT

13128-0712

$250.13

13144

SPROCKET-OUTPUT,13T

13144-0591

$34.14

13262

GEAR,INPUT 2ND,15T

13262-1368

$56.38

13262A

GEAR,INPUT 3RD&4TH,18T&23T

13262-1369

$134.87

13262B

GEAR,INPUT 5TH,25T

13262-1370

$79.55

13262C

GEAR,INPUT 6TH,27T

13262-1371

$82.47

13262D

GEAR,OUTPUT LOW,39T

13262-1372

$47.25

13262E

GEAR,OUTPUT 2ND,31T

13262-1373

$134.87

13262F

GEAR,OUTPUT 3RD,28T

13262-1374

$113.18

13262G

GEAR,OUTPUT 4TH,29T

13262-1375

$111.63

13262H

GEAR,OUTPUT 5TH,26T

13262-1376

$97.63

13262I

GEAR,OUTPUT 6TH,23T

13262-1377

$106.93

92033

RING-SNAP

92033-0798

$3.51

92033A

RING-SNAP

92033-0799

$3.39

92055

RING-O,21.5X1.5

92055-0196

$4.45

92139

BUSHING,20X23X14

92139-0917

$18.38

92139A

BUSHING,17.9X23X14.5

92139-0918

$18.38

92139B

BUSHING,17X20X8.5

92139-0919

$18.38

92139C

BUSHING,22X25X8.5

92139-0920

$18.38

92139D

BUSHING,18.7X25X8.6

92139-0921

$18.38

92152

COLLAR

92152-1350

$26.84

92200

WASHER

92200-1720

$3.63

92200A

WASHER,17.2X26X1

92200-2223

$6.69

92200B

WASHER,20X26X1.2

92200-2224

$6.69

92200C

WASHER,22.3X29X1.5

92200-2226

$6.69

92200D

WASHER

92200-2227

$6.69

92200E

WASHER

92200-2228

$6.69

92210

NUT,20MM

92210-0850

$14.39
