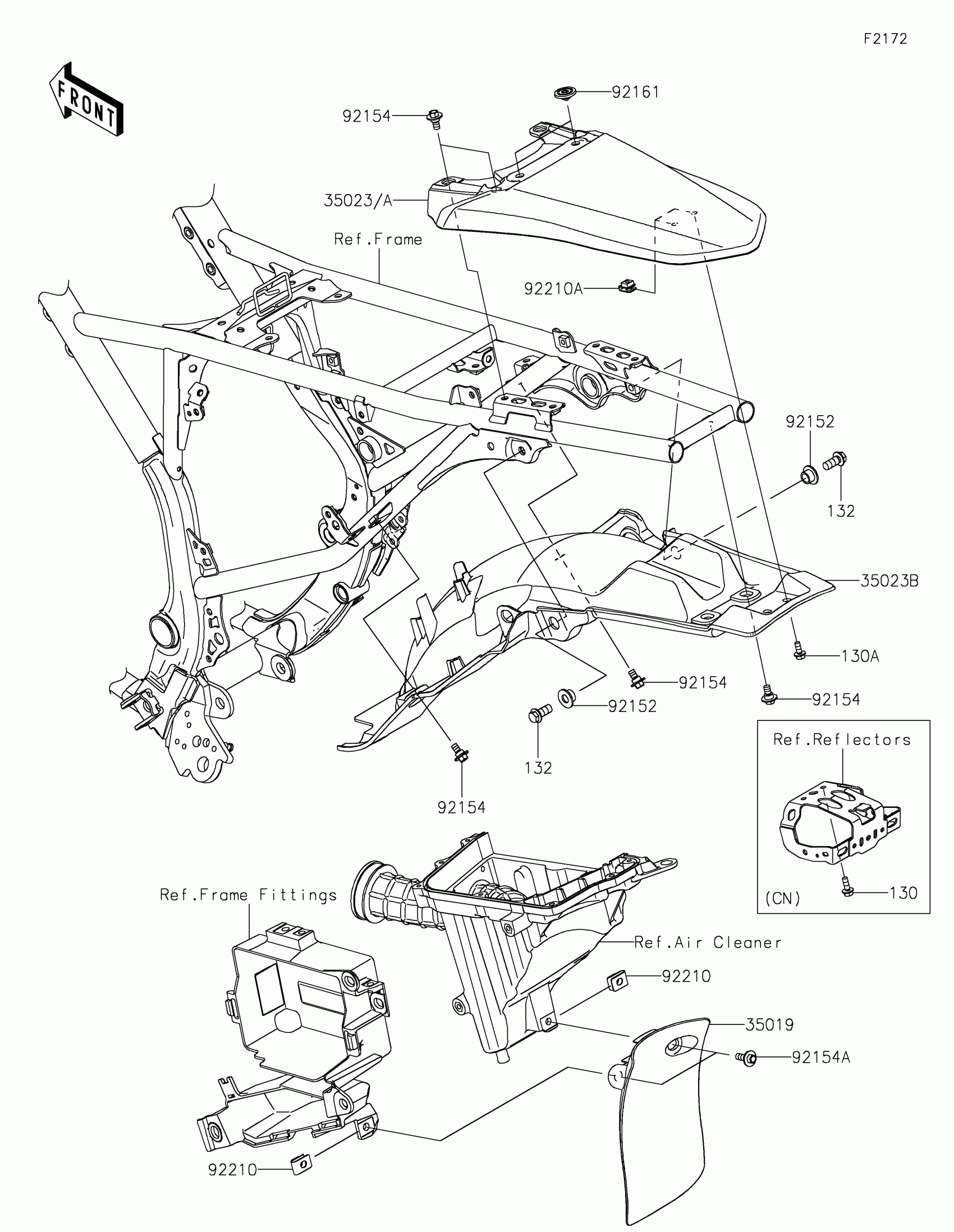

Kawasaki KLX230R S Rear Fender(s) Diagram

Description

Price

35019

FLAP

35019-0664

$49.20

35023

FENDER-REAR,L.GREEN

35023-0451-290

Unavailable

35023A

FENDER-REAR,B.GRAY

35023-0451-67A

Unavailable

35023B

FENDER-REAR

35023-0452

$57.93

92152

COLLAR

92152-2542

Unavailable

92154

BOLT,FLANGED,6X9

92154-0546

$2.84

92154A

BOLT,FLANGED,6X28

92154-1739

$1.95

92161

DAMPER,8X22X10

92161-1685

$0.74

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT,PLATE,5MM

92210-0262

$1.04

130

BOLT-FLANGED,5X14

130BA0514

$1.49

132

BOLT-FLANGED-SMALL,8X18

132BA0818

$1.03

130A

BOLT-FLANGED,5X12

130BB0512

$1.42
