Description

Price

11021

CASE-ASSY,THROTTLE

11021-0035

$47.94

13280

HOLDER,LEVER

13280-0929

$40.04

13280A

HOLDER,MIRROR

13280-0930

$21.13

14091

COVER,THROTTLE CASE

14091-0182

$10.06

27010

SWITCH,CLUTCH

27010-0905

$32.97

27010A

SWITCH,ENGINE STOP

27010-0926

$55.13

27010C

SWITCH,ENGINE START

27010-0928

$37.51

46003

HANDLE,P.SILVER

46003-0795-458

$107.60

46012

HOLDER-HANDLE,LWR,P.SILVER

46012-0075-458

$30.12

46012A

HOLDER-HANDLE,UPP,P.SILVER

46012-0380-458

$23.51

46019

GRIP-ASSY,THROTTLE

46019-0041

$29.91

46075

GRIP,LH

46075-0072

$14.62

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0158

$124.99

46092

LEVER-GRIP,CLUTCH

46092-0576

$27.16

49006

BOOT,LEVER HOLDER

49006-0080

$17.48

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92022

WASHER,10.2X28X2

92022-1088

$4.69

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92066

PLUG

92066-0965

$0.85

92154

BOLT,FLANGED,8X30

92154-1246

$2.00

92154A

BOLT,FLANGED,6X44

92154-2331

$7.59

92161

DAMPER,12X26X19

92161-2116

$6.07

92172

SCREW,5X20

92172-0069

$3.32

92172A

SCREW,3X16

92172-0183

$2.15

92173

CLAMP

92173-2074

$2.80

92200

WASHER,12.5X27.6X1.2

92200-0872

$5.52

92210

NUT,LOCK,10MM

92210-1672

$4.60

120

BOLT-SOCKET,6X25

120CB0625

$2.62

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

554

PIN-SNAP

554DA0800

$1.36

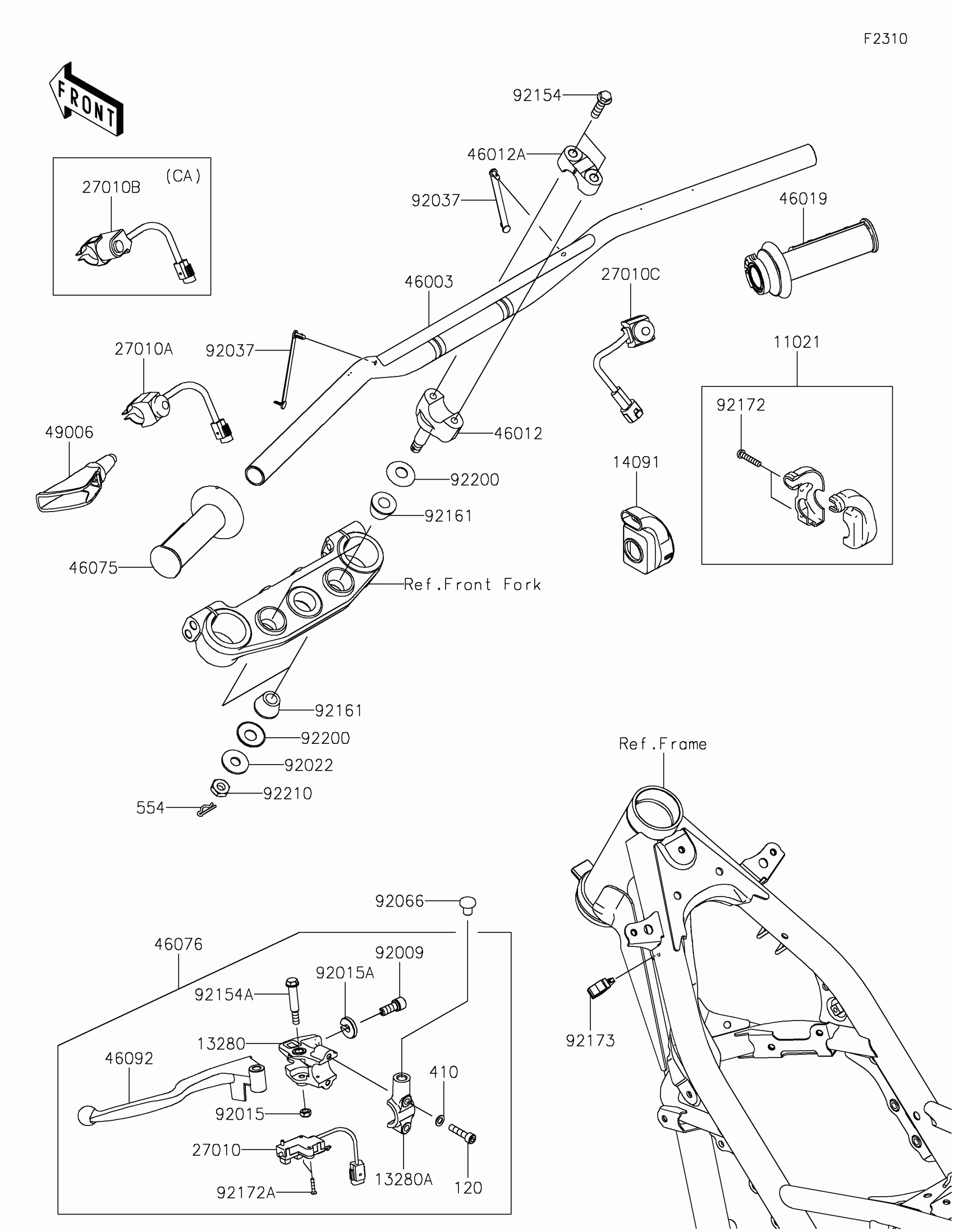

Kawasaki KLX230R S Handlebar Diagram
