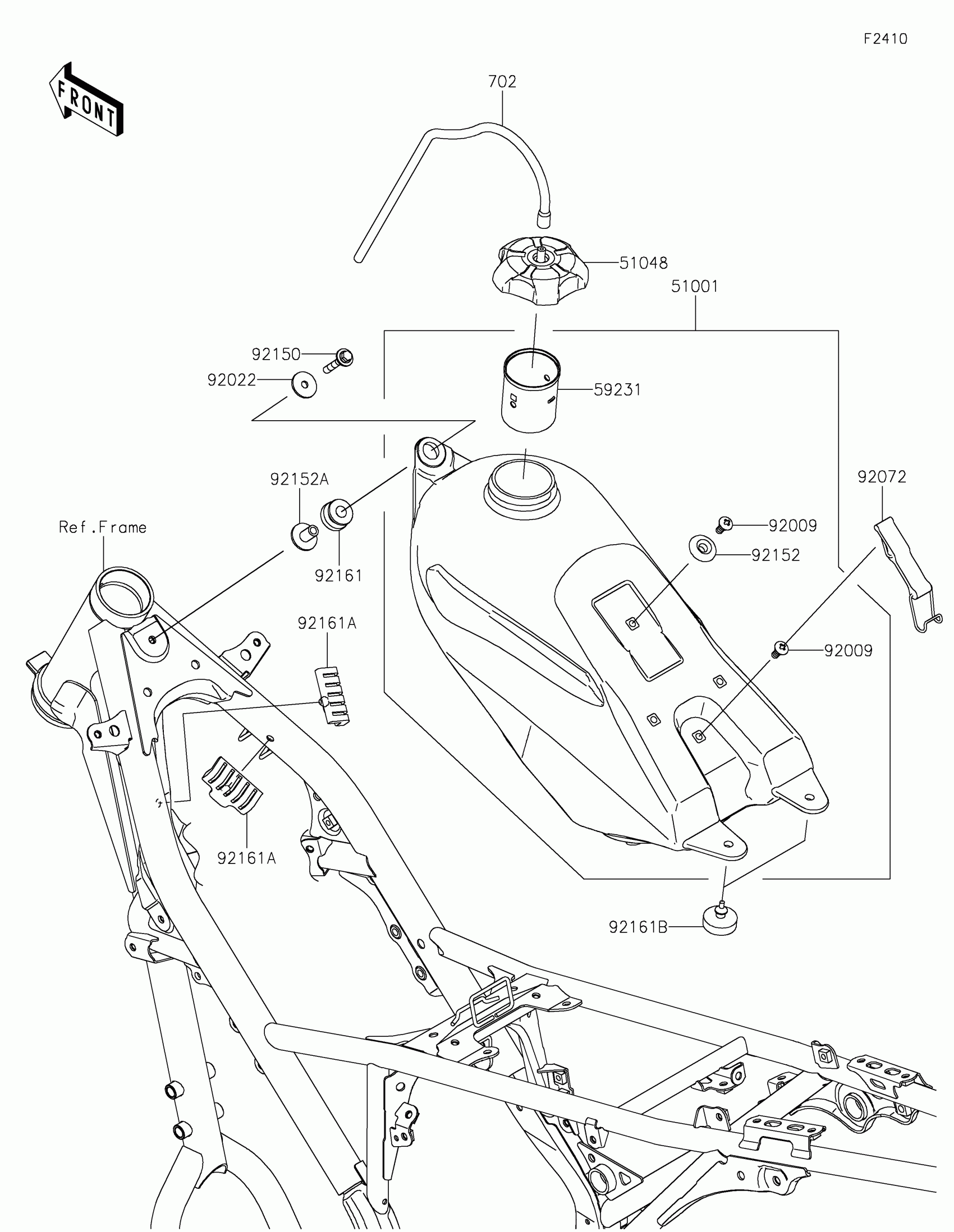

Kawasaki KLX230R S Fuel Tank(CN,US) Diagram

Description

Price

51001

TANK-COMP-FUEL

51001-0875

$641.87

51048

CAP-ASSY-TANK

51048-0576

$54.53

59231

FILLER

59231-0042

$6.86

92009

SCREW,6MM

92009-1971

$4.18

92022

WASHER,6.5X24X2

92022-1690

$3.92

92072

BAND,FUEL TANK

92072-0842

$23.99

92150

BOLT,FLANGED,6X35

92150-1527

$4.31

92152

COLLAR

92152-0569

$5.65

92152A

COLLAR,6.8X10X16

92152-2666

$9.47

92161

DAMPER,FUEL TANK,FR

92161-1392

$3.35

92161A

DAMPER

92161-2166

$4.10

92161B

DAMPER

92161-2203

$3.54

702

TUBE-RUBBER 5X400

702A05400

$6.56
