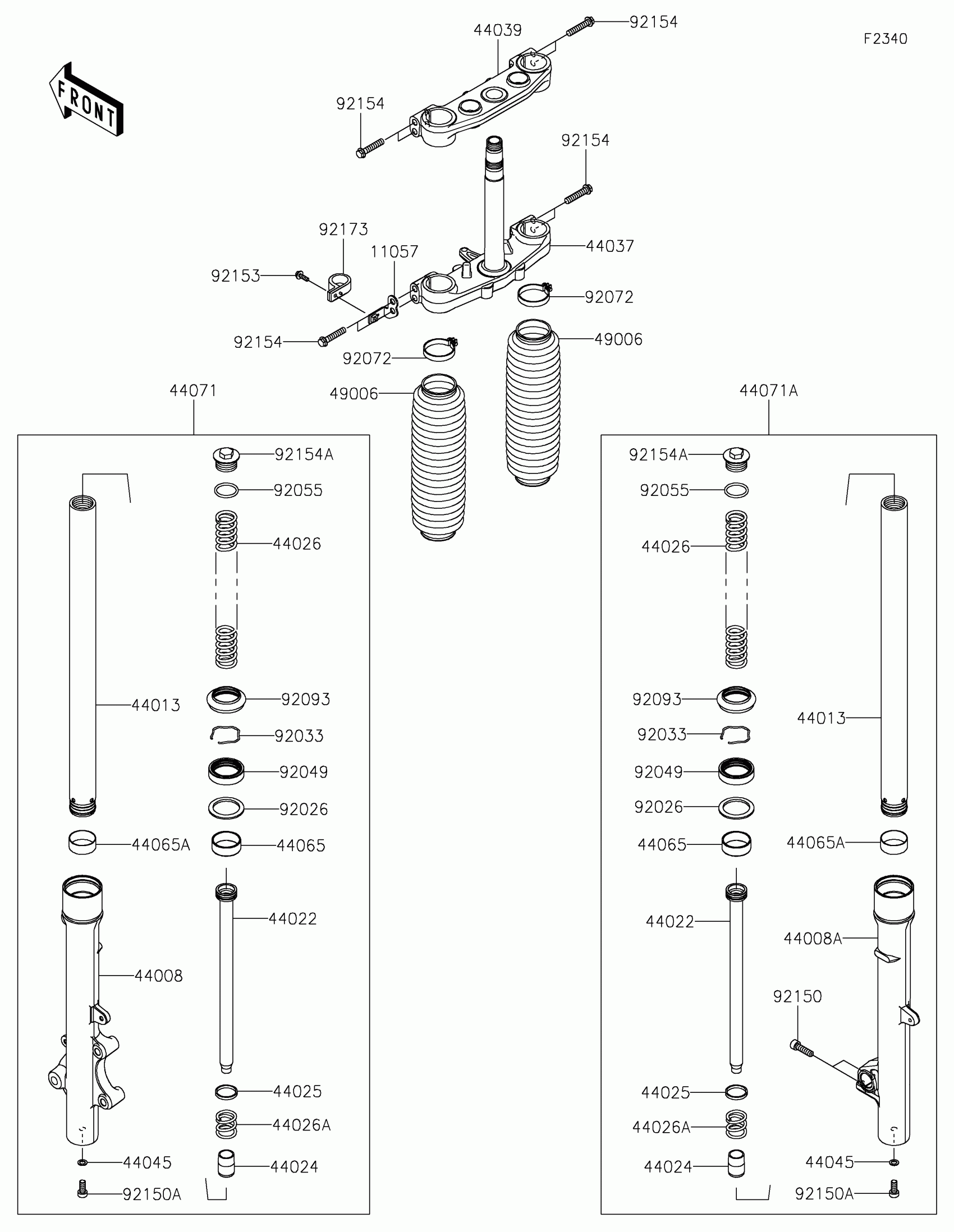

Kawasaki KLX230R S Front Fork Diagram

#

Description
Price

11057

BRACKET

11057-2284

$17.10

44008

PIPE-FORK OUTER,LH

44008-0089

$242.79

44008A

PIPE-FORK OUTER,RH

44008-0090

$242.79

44013

PIPE-FORK INNER

44013-0386

$229.57

44022

CYLINDER-FORK

44022-0056

$70.91

44024

CAP-OIL-LOCK

44024-0016

$22.60

44025

RING-FORK PISTON

44025-1062

$10.02

44026

SPRING-FRONT FORK

44026-0241

$51.50

44026A

SPRING-FRONT FORK

44026-1556

$6.40

44037

HOLDER-FORK UNDER

44037-0186

$263.70

44039

HOLDER-FORK UPPER

44039-0190

$296.37

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0069

$18.91

44065A

BUSHING-FRONT FORK

44065-0070

$12.18

44071

DAMPER-ASSY,FORK,LH

44071-1535

$477.90

44071A

DAMPER-ASSY,FORK,RH

44071-1536

$477.90

49006

BOOT

49006-0612

$61.13

92026

SPACER,FORK

92026-1443

$8.58

92033

RING-SNAP

92033-1286

$8.03

92049

SEAL-OIL

92049-0734

$21.20

92055

RING-O

92055-1456

$3.60

92072

BAND

92072-0826

$18.55

92093

SEAL,FORK OUTER

92093-1367

$21.57

92150

BOLT,SOCKET,8X30

92150-1407

$2.80

92150A

BOLT,SOCKET,8X18

92150-1432

$9.91

92153

BOLT,FLANGED

92153-1397

$3.90

92154

BOLT

92154-0463

$4.41

92154A

BOLT

92154-3953

$17.10

92173

CLAMP

92173-2246

$8.74
