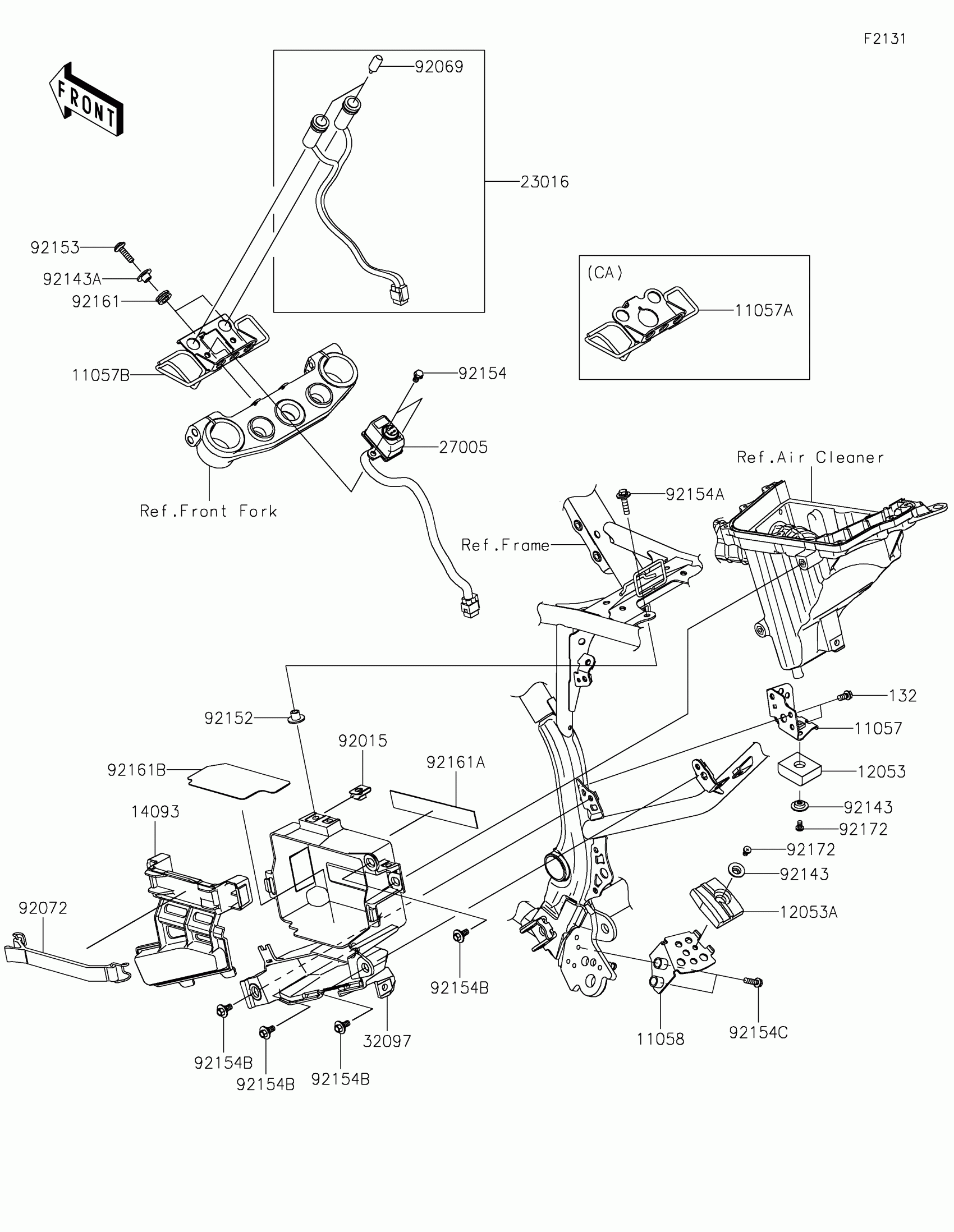

Kawasaki KLX230R S Frame Fittings Diagram
#
Description
Price
11057
BRACKET,UPP
11057-2067
$14.32
11057B
BRACKET,INDICATOR&IGNITION
11057-2976
$48.20
11058
BRACKET,LWR
11058-0854
$17.37
12053
GUIDE-CHAIN,UPP
12053-0270
$2.78
12053A
GUIDE-CHAIN,LWR
12053-0271
$3.02
14093
COVER,CASE-BATTERY
14093-0785
$5.98
23016
LAMP-ASSY,INDICATOR
23016-0626
$144.04
27005
SWITCH-ASSY-IGNITION
27005-0677
$93.82
32097
CASE-BATTERY
32097-0048
$11.80
92015
NUT,6MM
92015-1602
$7.34
92069
BULB,12V 3.4W,T10
92069-1007
$5.00
92072
BAND,BATTERY
92072-0839
$6.03
92143
COLLAR
92143-1676
$6.22
92143A
COLLAR
92143-1833
$0.67
92152
COLLAR,6.5X10X10.4
92152-1688
$1.97
92153
BOLT,SOCKET,6X22
92153-0574
$2.61
92154
BOLT,FLANGED,6X10
92154-0459
$7.65
92154A
BOLT,6X25
92154-0467
$1.94
92154B
BOLT,FLANGED,6X9
92154-0546
$3.74
92154C
BOLT,FLANGED,6X20
92154-2757
$2.95
92161
DAMPER,10X18X6.5
92161-2091
$2.44
92161A
DAMPER,146X22X1
92161-2210
$2.58
92161B
DAMPER,BATTERY
92161-2294
$3.26
92172
SCREW,5X8
92172-0119
$2.12
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
