2024 Kawasaki KLX230R S Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2024 Kawasaki KLX230R S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

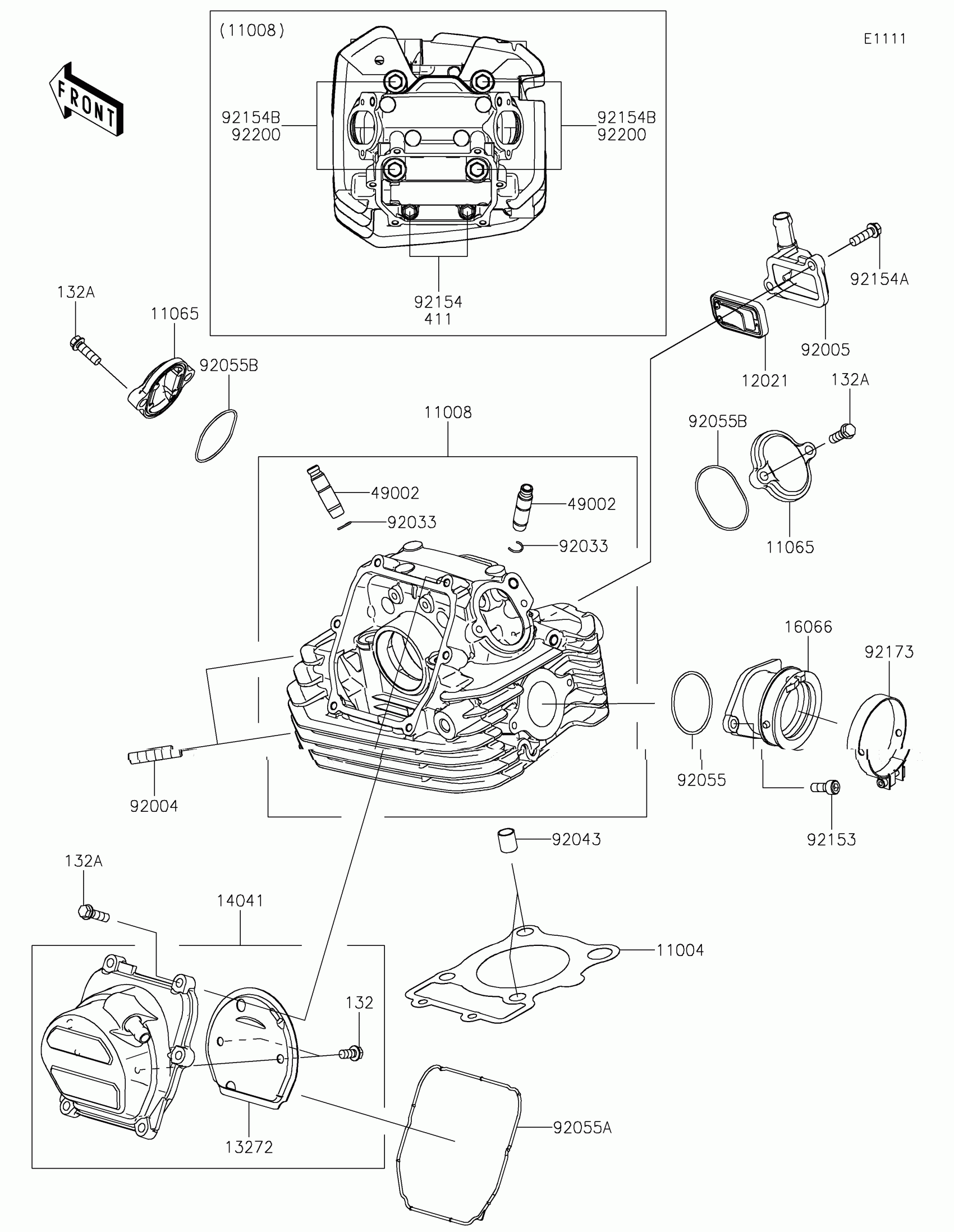

2024 Kawasaki KLX230R S Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0784

1

$20.39

In stock

11008

HEAD-COMP-CYLINDER

11008-1524

1

$545.24

In stock

11065

CAP,VALVE,ADJUSTING

11065-0800

1

$21.90

In stock

12021

VALVE-ASSY-REED

12021-0050

1

$49.12

In stock

13272

PLATE

13272-2616

1

$7.64

In stock

14041

1

$137.12

In stock

16066

1

$52.81

In stock

49002

GUIDE-VALVE

49002-0047

1

$19.47

In stock

92004

STUD,8X25

92004-0731

1
Out of stock

92005

FITTING

92005-0983

1

$24.46

In stock

92033

RING-SNAP

92033-0789

1

$3.53

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,42X1.9

92055-0186

1

$5.24

In stock

92055A

RING-O

92055-0897

1

$18.29

In stock

92055B

RING-O,ADJUST CAP

92055-1655

1

$6.90

In stock

92153

BOLT,SOCKET,6X16

92153-1344

1
Out of stock

92154

BOLT,FLANGED,6X130

92154-0993

1

$3.93

In stock

92154A

BOLT,FLANGED,6X20

92154-2757

1

$2.41

In stock

92154B

BOLT,FLANGED,10X190

92154-3910

1

$16.03

In stock

92173

CLAMP

92173-2191

1

$13.63

In stock

92200

WASHER,10.5X19X2.3

92200-0257

1
Out of stock

132

1

$1.73

In stock

132A

1

$3.28

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock
